Ford New Holland CX820 Combine Parts
Browse Ford New Holland CX820 Combine replacement parts. Everything from routine maintenance items to hard-to-find components.
The Ford New Holland CX820 combine, manufactured in the late 1990s and early 2000s, provided reliable harvesting power. Delivering around 240 engine horsepower, it accommodated headers up to 30 feet wide. Its conventional threshing system and robust build made it a popular choice for farmers harvesting wheat, soybeans, and corn in diverse field conditions.
About the Cx820
The Ford New Holland CX820 combine harvester was a workhorse for many farms. It was produced from approximately 1998 to the early 2000s. Powering the CX820 was a dependable Cummins 8.3L diesel engine, generating around 240 horsepower, providing ample power for demanding harvesting conditions. The CX820 utilized a conventional threshing system, featuring a large-diameter cylinder and concave for efficient grain separation. The grain tank held approximately 230 bushels. The unloading auger moved grain at a rate of about 2.5 bushels per second. It could be fitted with headers ranging from 20 to 30 feet wide, suitable for various crop types and field sizes. Options included a straw chopper or spreader for residue management. The cab provided a comfortable operating environment with standard controls and monitoring systems. The CX820 was particularly well-suited for harvesting wheat, soybeans, and corn due to its robust threshing system and versatility across different crop types.
Cx820 Specifications
| Engine | Cummins 8.3L 240 HP Diesel |
|---|---|
| Separator Type | Conventional - Cylinder width 60 inches |
| Grain Tank | 230 bushels |
| Unloading Rate | 150 bu/min |
| Header Widths | 20-30 ft |
| Fuel Capacity | 150 gallons |
| Weight | 24,000 lbs |
| Years Produced | 1998-2004 (approx.) |
Cx820 Maintenance Tips
- Regularly inspect and adjust concave clearance to optimize threshing performance and minimize grain damage.
- Check belt and chain tension throughout the harvesting season and adjust as needed to prevent slippage and premature wear.
- Clean sieves and chaffers daily to maintain optimal airflow and prevent grain loss over the back.
- Grease all bearings and lubrication points according to the manufacturer's recommendations to ensure smooth operation and extend component life.
Cx820 History & Background
The Ford New Holland CX820 was introduced in the late 1990s as part of New Holland's CX series, representing an evolution in conventional combine design. While not a revolutionary model, it provided a solid and dependable harvesting solution for farmers looking for a reliable machine. It solidified New Holland's position in the competitive combine harvester market.
Frequently Asked Questions
Which lube filter is recommended for the Ford New Holland Cx820?
For optimal engine lubrication in the Ford New Holland Cx820, we recommend the LF3861J - Filter, Lube, Spin-On.
What grain tank bottom auger fits the Ford New Holland Cx820?
The Ford New Holland Cx820 typically uses the 87280343 - Auger, Grain Tank Bottom; Rear, Std Unload, Ext. Wear for standard unload applications.
What rasp bar set is recommended for the Ford New Holland Cx820?
For effective threshing in the Ford New Holland Cx820, the 84081336 - Rasp Bar Set; 1 RH / 1 LH Bars is a suitable replacement.
What are common parts needed for the Cx820?
Regular maintenance and replacement of wear parts are crucial for the Cx820. Common parts include the 87044350 - Bearing; Ball, a 86013886 - Tensioner, Belt, the 87109817 - PreSieve, Grain; Closz Slat, a AF25557 - Filter, Air, Primary Magnum RS, and a FS19687J - Separator, Fuel/Water.

87109846 - Lower Closz Slat Sieve
SKU: 87109846
26 in stock

87109817 - Grain; Closz Slat PreSieve
SKU: 87109817
14 in stock

84081336 - 1 RH / 1 LH Bars Rasp Bar Set
SKU: 84081336
Out of stock

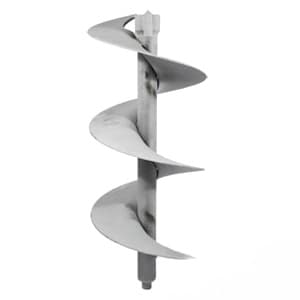

87283765 - 26.968" Extended Wear Auger; Bubble Up
SKU: 87283765
Out of stock

87283757 - 42.283" Extended Wear Auger; Upper Bubble Up
SKU: 87283757
4 in stock

87280345 - Ext Wear High Capacity Unload; Rear Grain Tank Bottom Auger
SKU: 87280345
10 in stock

87280343 - Ext. Wear Std Unload Grain Tank Bottom; Rear Auger
SKU: 87280343
18 in stock

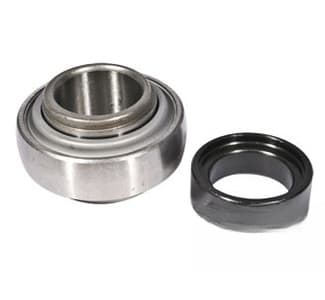

87044350 - Ball Bearing
SKU: 87044350
192 in stock

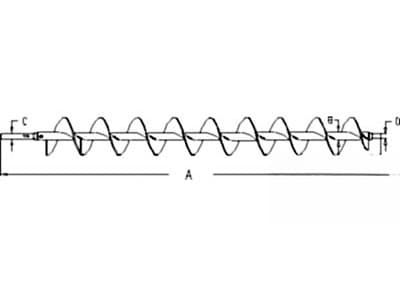

87011551 - Extended Wear Auger; Bottom Grain Elevator
SKU: 87011551
3 in stock

86013886 - Belt Tensioner
SKU: 86013886
77 in stock

LF3861J - Spin-On (QTY 1) Lube Filter
SKU: LF3861J
Out of stock

LF3861 - Spin-On (QTY 12) Lube Filter
SKU: LF3861
56 in stock

HF6555 - Spin-On (QTY 1) Hydraulic Filter
SKU: HF6555
114 in stock

HF6554 - Spin-On (QTY 1) Hydraulic Filter
SKU: HF6554
3 in stock

FS19687J - Fuel/Water (QTY 1) Separator
SKU: FS19687J
Out of stock

FS19687 - Fuel/Water (QTY 6) Separator
SKU: FS19687
Out of stock

FS1287J - Spin-On (QTY 1) Fuel/Water Separator
SKU: FS1287J
Out of stock

FS1287 - Spin-On (QTY 12) Fuel/Water Separator
SKU: FS1287
23 in stock

AF27866 - Air (QTY 1) Filter
SKU: AF27866
7 in stock

AF25620 - Secondary Magnum RS (QTY 1) Air Filter
SKU: AF25620
5 in stock

AF25619 - Primary Magnum RS (QTY 1) Air Filter
SKU: AF25619
28 in stock

AF25557 - Primary Magnum RS (QTY 1) Air Filter
SKU: AF25557
65 in stock
