Ford New Holland FW40 Tractor Parts
Shop Ford New Holland FW40 Tractor parts. From filters and fluids to blades and belts, we carry the replacements you need to keep running.
The Ford New Holland FW40 tractor, produced from 1988 to 1998, was a popular choice for farmers needing a reliable workhorse. Powered by a robust 110 HP Iveco diesel engine, it offered exceptional performance and fuel efficiency. Its strong PTO, rated at 95 horsepower, made it well-suited for a variety of demanding agricultural tasks.
About the FW40
The Ford New Holland FW40 was introduced in 1988 as part of the Versatile-built FW series and continued production until 1998. This tractor was designed to provide dependable performance for medium to large farming operations. It features an Iveco 8065.25 six-cylinder diesel engine, delivering approximately 110 horsepower. The engine's displacement is 366 cubic inches (6.0L). A key feature of the FW40 is its robust transmission. It came standard with a 12-speed partial powershift transmission. The PTO delivers around 95 horsepower, available in both 540 and 1000 RPM configurations. The hydraulic system has a capacity of approximately 20 gallons per minute, supporting multiple remote valves for operating implements. It's equipped with a Category II 3-point hitch, providing a substantial lift capacity for attaching various farming tools. The FW40 was commonly used for row crop operations, hay baling, livestock feeding, and general tillage work. Unlike some smaller utility tractors, the FW40 focused on delivering higher horsepower and greater capability for demanding field applications, standing out from the smaller Ford New Holland models in the line.
FW40 Specifications
| Engine | Iveco 8065.25 110 HP 366 ci Diesel |
|---|---|
| PTO HP | 95 HP @ 540/1000 RPM |
| Transmission | 12-Speed Partial Powershift |
| Hydraulics | 20 GPM, 2-3 remotes |
| 3-Point Hitch | Category II, 5000 lbs lift capacity |
| Fuel Capacity | 36 gallons |
| Weight | 11,000 lbs |
| Years Produced | 1988-1998 |
FW40 Maintenance Tips
- Regularly check and change the engine oil and filter according to the manufacturer's recommended intervals (typically every 250-300 hours). Use the recommended oil type and a quality filter to ensure optimal engine performance.
- Inspect and maintain the hydraulic system. Check the hydraulic fluid levels regularly, change the filter as recommended, and address any leaks promptly to prevent contamination and maintain proper hydraulic pressure.
- Maintain a clean fuel system. Use clean fuel, replace the fuel filter regularly, and consider using a fuel additive to prevent algae growth and keep the injectors clean, especially during seasonal storage.
- Before storing the tractor for an extended period, drain the fuel tank or add a fuel stabilizer to prevent fuel degradation. Disconnect the battery, and store the tractor in a dry, sheltered location to protect it from the elements.
FW40 History & Background
The Ford New Holland FW40 was introduced in 1988, marking Ford New Holland's entry into the mid-size high horsepower tractor market. While there weren't major redesigns during its production run, improvements and refinements were made to components over the years. The FW40 played a significant role in agricultural history by providing farmers with a reliable and powerful tractor for a wide range of applications.
Frequently Asked Questions
Which alternator is compatible with the Ford New Holland FW40?
For the Ford New Holland FW40, the V60510 - Alternator, Delco is a suitable replacement.

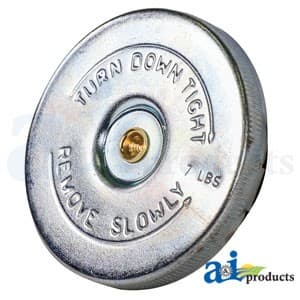

What radiator cap is recommended for the Ford New Holland FW40?
The SFD10021 - Cap, Radiator (7 Lb.) is a suitable replacement for the Ford New Holland FW40.
What oil filter fits the FW40?
For the Ford New Holland FW40, we recommend the LF670J - Filter, Lube, Full-Flow Spin-On (QTY 1). This filter is functionally equivalent and suitable for the FW40 model.
What are common parts needed for the FW40?
Common wear items and maintenance parts for the Ford New Holland FW40 often include the FF105DJ - Filter, Fuel, Spin-On (QTY 1), AF939 - Filter, Air, Primary (QTY 1), and HF6710J - Filter, Hydraulic, Spin-On (QTY 1). Other frequently replaced items can include the D3NN19849A - Expansion Valve, BM331839 - Blower Motor - Condenser (12V, 5/16" X 1 1/2"shaft, Rev. rotation), and a new F20ST3000 - Seat, F20 Series, Black Vinyl for comfort.

V31510 - Expansion Valve
SKU: V31510
45 in stock

D3NN19849A - Expansion Valve
SKU: D3NN19849A
5 in stock

BM331839 - Rev. rotation) 5/16" X 1 1/2"shaft Blower Motor - Condenser (12V
SKU: BM331839
12 in stock

87022814 - Expansion Valve
SKU: 87022814
20 in stock

V60510 - Delco Alternator
SKU: V60510
15 in stock

SFD221064 - Voltage Regulator
SKU: SFD221064
10 in stock

LF670J - Full-Flow Spin-On (QTY 1) Lube Filter
SKU: LF670J
Out of stock

LF670 - Full-Flow Spin-On (QTY 6) Lube Filter
SKU: LF670
61 in stock

HF6710J - Spin-On (QTY 1) Hydraulic Filter
SKU: HF6710J
Out of stock

HF6710 - Spin-On (QTY 6) Hydraulic Filter
SKU: HF6710
70 in stock

FF105DJ - Spin-On (QTY 1) Fuel Filter
SKU: FF105DJ
Out of stock

FF105D - Spin-On (QTY 12) Fuel Filter
SKU: FF105D
11 in stock

AF939 - Primary (QTY 1) Air Filter
SKU: AF939
1 in stock

SFD10021 - Radiator (7 Lb.) Cap
SKU: SFD10021
73 in stock

F20ST3030 - Brown Cloth Slide Track F20 Series Seat
SKU: F20ST3030
43 in stock

F20ST3025 - Brown Checkered Cloth Slide Track F20 Series Seat
SKU: F20ST3025
16 in stock

F20ST3020 - Gray Cloth Slide Track F20 Series Seat
SKU: F20ST3020
12 in stock

F20ST3015 - Black Cloth Slide Track F20 Series Seat
SKU: F20ST3015
43 in stock

F20ST3010 - Yellow Vinyl Slide Track F20 Series Seat
SKU: F20ST3010
8 in stock

F20ST3005 - Gray Vinyl F20 Series Seat
SKU: F20ST3005
2 in stock

F20ST3000 - Black Vinyl F20 Series Seat
SKU: F20ST3000
13 in stock

F20ST135 - Slide Track / Armrest / Headrest / Gray Vinyl F20 Series Seat
SKU: F20ST135
Out of stock

F10ST2030 - Brown Cloth Slide Track F10 Series Seat
SKU: F10ST2030
22 in stock

F10ST2025 - Brown Checkered Cloth Slide Track F10 Series Seat
SKU: F10ST2025
35 in stock
