Ford New Holland 233 Tractor Parts
Replacement parts for the Ford New Holland 233 Tractor. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The Ford New Holland 233 tractor, a reliable workhorse, was manufactured in the early 1990s. Typically powered by a Shibaura 17HP diesel engine, its popularity stemmed from its compact size, ease of use, and adaptability to various farming tasks. It features an efficient gear transmission for smooth operation and a 14.2 PTO HP.
About the 233
The Ford New Holland 233 was produced from 1991 to 1993. It is equipped with a Shibaura N844L 17 horsepower, 77.3 cubic inch (1.3L) 3-cylinder diesel engine. The tractor utilizes a gear transmission with 9 forward and 3 reverse speeds, providing a good range of options for different tasks. The rear PTO delivers 14.2 horsepower at 540 RPM. Its hydraulic system has a capacity of 3.5 GPM, and features a 3-point hitch with a lift capacity of approximately 950 lbs. at the link ends. This tractor is commonly used for small-scale farming operations like haying, livestock management, and light tillage. The 233 distinguishes itself within the New Holland lineup by its small stature and economy-oriented design, making it ideal for operations where larger tractors would be impractical.
233 Specifications
| Engine | Shibaura N844L 17 HP 77.3 ci (1.3L) Diesel |
|---|---|
| PTO HP | 14.2 HP @ 540 RPM |
| Transmission | Gear 9F/3R |
| Hydraulics | 3.5 GPM, 0 remotes |
| 3-Point Hitch | Category I, 950 lbs |
| Fuel Capacity | 4.5 gallons |
| Weight | 1543 lbs |
| Years Produced | 1991-1993 |
233 Maintenance Tips
- Engine Oil & Filter: Change the engine oil and filter every 100-200 hours of operation. Use a high-quality diesel engine oil meeting API CF-4 or higher specifications and a compatible oil filter.
- Hydraulic System: Check the hydraulic fluid level regularly and replace the hydraulic filter every 300-400 hours. Use the recommended hydraulic fluid type to prevent damage to the system.
- Fuel System: Drain the fuel sediment bowl regularly to remove water and contaminants. Replace the fuel filter every 200-300 hours to ensure proper fuel flow and prevent injector issues.
- Seasonal Storage: Before storing the tractor for the off-season, fill the fuel tank to prevent condensation, change the engine oil, and grease all fittings. Disconnect the battery and store it in a cool, dry place.
233 History & Background
The Ford New Holland 233 was introduced in 1991 as a compact utility tractor designed for smaller farming operations. Production continued until 1993. While it didn't undergo major redesigns during its short production run, it provided a cost-effective solution for farmers needing a smaller, reliable tractor.
Frequently Asked Questions
Which water pump fits the Ford New Holland 233?
The water pump recommended for the Ford New Holland 233 is FAPN8A513GG - Pump, Water w/ Single Pulley & Gasket w/o Back Housing.
What replacement fuel injector is recommended for the 233?
For the Ford New Holland 233, we recommend the 82845260 - Injector as a replacement.
Which starter relay assembly is compatible with the Ford New Holland 233?
The D2AF11450AA - Starter Relay Assembly (12 Volt) is a compatible starter relay for the Ford New Holland 233.
What are common replacement parts for the Ford New Holland 233?
Common replacement parts for the Ford New Holland 233 include a 83937061 - Filter, Fuel, a EDPN3K758A - Filter, Power Steering, an VPD8500 - Seal Kit; Fuel Injector, F2NN2218AA - Brake Shoe w/ Lining, a 82010859 - Bearing, Release (sealed), and the 86531999 - Seal, Outer Rear Axle.

VPD8500 - Fuel Injector Seal Kit
SKU: VPD8500
272 in stock

SD756 - Cylinder (Semi-Finished) Liner
SKU: SD756
61 in stock

SD753 - Cylinder (Semi-Finished) Liner
SKU: SD753
28 in stock

RK157-30 - Piston with Rings (.030")
SKU: RK157-30
24 in stock

RK156 - Piston with Rings (Std)
SKU: RK156
23 in stock

D4NN3289D - Tie Rod End (Female Thread)
SKU: D4NN3289D
Out of stock

D4NN3278A - Outer (LH) Tie Rod
SKU: D4NN3278A
Out of stock

C7NN3010F - Front Axle Assembly w/ Bushing
SKU: C7NN3010F
45 in stock

C7NN3007J - Front Axle (LH)
SKU: C7NN3007J
Out of stock

C7NN3006J - Front Axle (RH)
SKU: C7NN3006J
Out of stock

C5NN3A319A - Drag Link (LH) Tube
SKU: C5NN3A319A
17 in stock

C5NN3314F - Drag Link (RH) Tube
SKU: C5NN3314F
1 in stock

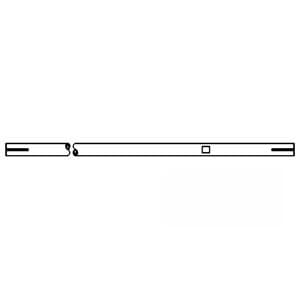

C5NN3314C - Drag Link (RH) Tube
SKU: C5NN3314C
Out of stock

957E3307B - Rear Drag Link End
SKU: 957E3307B
82 in stock

957E3290B - Front Drag Link End
SKU: 957E3290B
19 in stock

36725 - Outer Cup
SKU: 36725
330 in stock

128825 - O-Ring
SKU: 128825
2750 in stock

LM67048-P - Tapered Roller Bearing Cone
SKU: LM67048-P
715 in stock

LM67010-P - Tapered Bearing Cup
SKU: LM67010-P
907 in stock

LM48548-P - Tapered Roller Bearing Cone
SKU: LM48548-P
156 in stock

LM48548-I - Tapered Roller Bearing Cone
SKU: LM48548-I
794 in stock

LM48510-P - Tapered Bearing Cup
SKU: LM48510-P
114 in stock

LM48510-I - Tapered Bearing Cup
SKU: LM48510-I
340 in stock

LM11949-P - Tapered Roller Bearing Cone
SKU: LM11949-P
249 in stock
