John Deere X9-1000 Combine Parts
John Deere X9-1000 Combine parts in stock. Quality OEM and aftermarket replacement parts with fast shipping and competitive prices.
The John Deere X9 1000 combine, manufactured from 2020 onwards, represents a pinnacle of harvesting technology. Boasting a powerful engine delivering over 630 peak HP and capable of handling headers exceeding 50 feet, the X9 1000 utilizes a high-capacity dual rotary separator. Its exceptional throughput and grain quality quickly made it a favorite among large-acreage farmers looking to maximize efficiency during harvest.
About the X9 1000
The John Deere X9 1000 was introduced in 2020 as a replacement for the S790, marking a significant leap in combine performance and technology. Powering this beast is a John Deere PowerTech 13.6L inline-6 diesel engine, producing a rated 630 peak horsepower. The heart of the X9 1000 lies in its dual rotary separator, designed for increased throughput and reduced grain loss compared to conventional cylinder combines. It has a massive 485-bushel grain tank, allowing for extended harvesting runs. The unloading auger boasts a staggering 7.0 bushels per second (420 bu/min) unloading rate. Available header widths range from 30 to 50+ feet, accommodating various crop conditions and field sizes. Chopper and spreader options are available to tailor residue management to specific farming practices. The cab is equipped with advanced technology, including the Generation 4 CommandCenter display, providing operators with real-time data and control over combine settings. The X9 1000 excels in harvesting high-yielding crops such as corn, soybeans, wheat, and canola, offering minimal grain damage and high-quality samples.
X9 1000 Specifications
| Engine | John Deere PowerTech 13.6L 630 HP Diesel |
|---|---|
| Separator Type | Dual Rotor - 2 x 12 inch diameter, 173 inch long |
| Grain Tank | 485 bushels |
| Unloading Rate | 420 bu/min |
| Header Widths | 30-50+ ft |
| Fuel Capacity | 340 gallons |
| Weight | 43,980 lbs (approximate) |
| Years Produced | 2020-Present |
X9 1000 Maintenance Tips
- Concave Adjustment: Regularly inspect and adjust concave clearance based on crop type and conditions to optimize threshing and minimize grain damage.
- Belt and Chain Tension: Maintain proper tension on all belts and chains to prevent slippage, wear, and potential breakdowns. Use a tension gauge for accurate adjustments.
- Sieve and Chaffer Cleaning: Regularly clean sieves and chaffers to remove debris and ensure efficient grain separation. Use compressed air or a brush to remove any buildup.
- Bearing Greasing: Lubricate all bearings according to the manufacturer's recommendations to prevent premature wear and ensure smooth operation. Pay special attention to bearings on the header, separator, and unloading auger.
X9 1000 History & Background
The John Deere X9 1000 was introduced in 2020, signifying a new era in combine harvester technology for John Deere. It was a complete redesign, offering improved performance and efficiency compared to its predecessors. This model set a new benchmark for harvesting capacity, grain quality, and technology integration in large-scale farming operations.
Frequently Asked Questions
What coolant level switch is compatible with the John Deere X9 1000?
The recommended coolant level switch for the John Deere X9 1000 combine is AL201300 - Switch, Coolant Level.
Which rotary sensor is recommended for the John Deere X9 1000?
For accurate sensing, the AXE14246 - Sensor, Rotary is a suitable replacement for the X9 1000 combine.
What straw chopper bushing is used on the John Deere X9 1000?
The HXE59496 - Bushing, Straw Chopper is designed for the straw chopper system on the X9 1000 combine.
What are common replacement parts for the John Deere X9 1000?
Common replacement parts for the X9 1000 combine include the HXE15909 - Spacer, Chopper Knife, H214211 - Deflector, Air, H170141 - Pivot Idler Spring, AHC10157 - Seal Kit, Hydraulic Cylinder Rod, and AXE24984 - Idler, Vacuum Fan Drive.

AHC10157 - Hydraulic Cylinder Rod Seal Kit
SKU: AHC10157
14 in stock

HXE59496 - Straw Chopper Bushing
SKU: HXE59496
414 in stock

HXE15909 - Chopper Knife Spacer
SKU: HXE15909
1734 in stock

H214211 - Air Deflector
SKU: H214211
206 in stock

AXE24984 - Vacuum Fan Drive Idler
SKU: AXE24984
11 in stock

H170141 - Pivot Idler Spring
SKU: H170141
211 in stock

R39322 - Clutch / Brake Sealing Ring
SKU: R39322
35 in stock

DZ105787 - Exhaust Manifold Spacer
SKU: DZ105787
561 in stock

AL201300 - Coolant Level Switch
SKU: AL201300
191 in stock

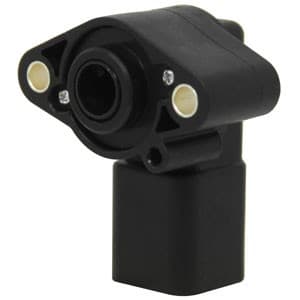

AXE14246 - Rotary Sensor
SKU: AXE14246
150 in stock

AXE14245 - Rotary Sensor
SKU: AXE14245
134 in stock
