John Deere S780 Combine Parts
Find parts for your John Deere S780 Combine. We stock OEM and quality aftermarket replacements ready to ship.
The John Deere S780 combine, produced from 2018 onwards, is a high-capacity harvesting solution known for its efficiency and advanced technology. Boasting a powerful engine providing around 540 peak HP and accommodating headers up to 45 feet wide, the S780 features a rotary separator for high throughput and reduced grain loss. Its comfortable cab and automated features have made it a favorite among farmers seeking maximum productivity during harvest season.
About the S780
The John Deere S780 combine was introduced in 2018 as part of the S700 series, representing a significant advancement in harvesting technology. Powered by a John Deere PowerTech 13.5L engine, the S780 delivers approximately 473 rated horsepower and peaks at 540 hp, with a displacement of 824 cubic inches. It employs a single rotor separator system designed for efficient threshing and separation of grain. The grain tank has a capacity of 400 bushels, and the unloading auger can discharge grain at a rate of up to 4.0 bushels per second (240 bu/min). Available header widths range from 30 to 45 feet, catering to various field sizes and crop types. Chopper and spreader options ensure proper residue management. The combine's cab is equipped with advanced technology, including a Generation 4 CommandCenter display for easy monitoring and control. The S780 excels at harvesting a variety of crops, including corn, soybeans, wheat, and other small grains, thanks to its adjustable settings and versatile header options.
S780 Specifications
| Engine | John Deere PowerTech 13.5L 473 HP Diesel (540 Peak HP) |
|---|---|
| Separator Type | Single Rotor - 31 inch diameter rotor |
| Grain Tank | 400 bushels |
| Unloading Rate | 240 bu/min |
| Header Widths | 30-45 ft |
| Fuel Capacity | 300 gallons |
| Weight | Approximately 40,000 lbs (depending on options) |
| Years Produced | 2018-Present |
S780 Maintenance Tips
- Concave Adjustment: Regularly inspect and adjust concave clearance based on crop type and condition to optimize threshing and minimize grain damage.
- Belt and Chain Tension: Check belt and chain tension frequently, especially during the initial hours of operation. Proper tension ensures efficient power transmission and prevents premature wear.
- Sieve and Chaffer Cleaning: Clean sieves and chaffers regularly to remove debris and ensure proper airflow for efficient grain separation. A clean cleaning system minimizes grain loss.
- Bearing Greasing: Follow the manufacturer's recommended greasing schedule for all bearings to prevent premature failure and extend component life. Use high-quality grease designed for agricultural applications.
S780 History & Background
The John Deere S780 was introduced in 2018 as part of the S700 series, replacing older models and incorporating advanced technology for improved harvesting performance. It represented a step forward in combine automation and data management capabilities. The S780 continues to be a relevant and powerful combine in modern farming operations, contributing to efficient and high-yield harvests.
Frequently Asked Questions
Which fuel filter is recommended for the John Deere S780 combine?
For optimal engine performance, the RE533910 - Filter, Fuel, Spin-on is recommended for the S780 combine.
What lower clean grain elevator sprocket fits the John Deere S780?
The H133143 - Sprocket, Clean Grain Elevator, Lower is designed for the John Deere S780 combine.
Which front rotor bearing is used on the John Deere S780?
The AXE42868 - Bearing, Front Rotor is the correct replacement part for the S780 combine.
What are common wear parts for the John Deere S780?
For regular maintenance and common replacements on your John Deere S780, consider these parts:
- Feeder house belt: H174885 - Belt; Fixed Speed Feeder House, Extra Heavy Duty
- Feeder drum bearing: AH219987 - Bearing w/ Housing; Feeder Drum (Import)
- Upper feeder house sprocket: H227474 - Sprocket, Upper Feeder House
- Hydraulic filter: VPK1551 - Hydraulic Filter
- Upper return wear strip: H171960 - Wear Strip, Upper Return
- Straw chopper bushing: HXE59496 - Bushing, Straw Chopper

RE546613 - Exhaust Temp Sensor
SKU: RE546613
167 in stock

RE538127 - Fuel Temperature Sensor
SKU: RE538127
6 in stock

RE537640 - Engine Oil Pressure Sensor
SKU: RE537640
93 in stock

RE537639 - Manifold Air Pressure Sensor
SKU: RE537639
255 in stock

RE537637 - Coolant Temperature Sensor
SKU: RE537637
191 in stock

RE537635 - Manifold Air Temperature Sensor
SKU: RE537635
130 in stock

RE537634 - Engine; Magnetic Pickup Sensor
SKU: RE537634
132 in stock

RE525016 - Air Temperature Sensor
SKU: RE525016
111 in stock

RE522723 - Manifold Air Pressure Sensor
SKU: RE522723
143 in stock

RE506352 - Belt Tensioner
SKU: RE506352
44 in stock

RE48419 - Temperature Sensor
SKU: RE48419
129 in stock

RE167207 - Oil Pressure Sensor
SKU: RE167207
100 in stock

JD8210 - TIMKEN CUP
SKU: JD8210
97 in stock

H165510 - Drive Coupler
SKU: H165510
10 in stock

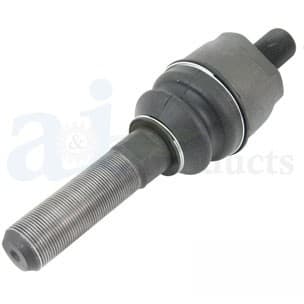

AL68253 - Tie Rod End
SKU: AL68253
270 in stock

U46166 - Durometer 70 (2/Pack) O-Ring; .961" ID X 1.205" OD X .122" Thick
SKU: U46166
148 in stock

U13639 - Durometer 90 (2/Pack) .118" Thick O-Ring; 1.475" ID X 1.711" OD
SKU: U13639
1346 in stock

T78612 - Durometer 90 (5/Pack) .070" Thick O-Ring; 1.176" ID X 1.316" OD
SKU: T78612
2190 in stock

T42302 - Durometer 70 (1/Pack) .103" Thick O-Ring; 3.987" ID X 4.193" OD
SKU: T42302
344 in stock

T13119 - Durometer 75 (10/Pack) .103" Thick O-Ring; .737" ID X .943" OD
SKU: T13119
340 in stock

R77551 - Durometer 75 (12/Pack) .070" Thick O-Ring; .208" ID X .348" OD
SKU: R77551
1620 in stock

R72328 - Durometer 75 (5/Pack) .103" Thick O-Ring; .737" ID X .943" OD
SKU: R72328
330 in stock

R63548 - Durometer 75 (5/Pack) .070" Thick O-Ring; .364" ID X .504" OD
SKU: R63548
185 in stock

R63185 - Durometer 70 (1/Pack) .139" Thick O-Ring; 1.171" ID X 1.449" OD
SKU: R63185
187 in stock
