John Deere S540 Combine Parts

Shop John Deere S540 Combine parts. From filters and fluids to blades and belts, we carry the replacements you need to keep running.

The John Deere S540 combine, produced from 2012-2015, offered farmers a reliable and efficient harvesting solution. Boasting approximately 250 horsepower and compatibility with header widths ranging from 20 to 30 feet, this machine was popular for its balance of power and capacity. Its conventional separator made it a versatile choice for various grain crops.

About the S540

The John Deere S540 combine was introduced in 2012 as part of the S-Series lineup, slotting in as a mid-sized machine for farmers needing a blend of performance and maneuverability. Production continued through 2015. It featured a John Deere PowerTech 6.8L engine producing approximately 250 horsepower with a displacement of 414 cubic inches. The S540 utilized a conventional cylinder separator, known for its gentle threshing action, with a 30-inch wide cylinder. Grain tank capacity reached 220 bushels, and the unloading auger could empty the tank at a rate of approximately 2.4 bushels per second (145 bu/min). Compatible header widths typically ranged from 20 to 30 feet, accommodating various field sizes and crop types. Options included a fine-cut chopper and adjustable spreader. The cab offered a comfortable operating environment with features like air conditioning, adjustable seating, and intuitive controls. The S540 excelled at harvesting a range of crops including wheat, soybeans, and corn, delivering efficient and consistent results.

S540 Specifications

EngineJohn Deere PowerTech 6.8L 250 HP Diesel
Separator TypeConventional - 30-inch wide cylinder
Grain Tank220 bushels
Unloading Rate145 bu/min
Header Widths20-30 ft
Fuel Capacity150 gallons
WeightApprox. 25,000 lbs
Years Produced2012-2015

S540 Maintenance Tips

  • Concave Adjustment: Regularly check and adjust concave clearance according to the crop being harvested. Proper adjustment minimizes grain loss and damage.
  • Belt and Chain Tension: Inspect belt and chain tension before each harvest and periodically throughout the season. Loose belts and chains can cause slippage and premature wear.
  • Sieve and Chaffer Cleaning: Regularly clean the sieves and chaffer to ensure optimal cleaning performance and prevent grain loss over the back.
  • Bearing Greasing: Grease all bearings according to the manufacturer's recommendations. Proper lubrication extends bearing life and prevents costly breakdowns.

S540 History & Background

The John Deere S540 was introduced in 2012 as a part of John Deere's S-Series combine lineup. It filled a gap in the market for a combine with ample capacity but more compact dimensions than larger models. The S540 provided a balance of efficiency and maneuverability for farms of various sizes.

Frequently Asked Questions

Which water pump fits the John Deere S540 combine?

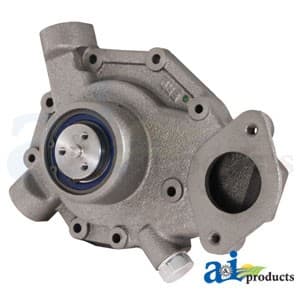

The recommended water pump for the S540 combine is RE546918 - Pump, Water.

What feeder drum bearing is recommended for the S540?

For the feeder drum on your S540, consider the AH219987 - Bearing w/ Housing; Feeder Drum (Import).

Which cleaning fan drive belt fits the John Deere S540?

The HXE15594 - Belt; Cleaning Fan Drive, Standard Speed is suitable for the cleaning fan drive on the S540.

Showing 1-24 of 202 products
