John Deere 9880I-STS Combine Parts

John Deere 9880I-STS Combine parts in stock. Quality OEM and aftermarket replacement parts with fast shipping and competitive prices.

The John Deere 9880I STS combine, produced from 2003-2006, offered farmers a powerful and efficient harvesting solution. Powered by a robust engine producing over 375 HP, it was available with header widths ranging up to 36 feet, making it suitable for large-scale operations. The Single Tine Separator (STS) rotary system quickly made this model popular for its high throughput and reduced grain loss when harvesting various crops.

About the 9880I STS

The John Deere 9880I STS was a significant combine in the early 2000s, manufactured from 2003 to 2006. It was equipped with a John Deere PowerTech 9.0L six-cylinder diesel engine, delivering approximately 375 horsepower (depending on model year and specifications). The 9.0L engine provided ample power for the combine's demanding tasks. A key feature of the 9880I STS was its Single Tine Separator (STS) rotary system, which provided improved threshing and separation compared to conventional cylinder combines, leading to less grain loss and higher quality grain samples. Its grain tank capacity was 300 bushels, and the unloading auger could empty the tank at a rate of approximately 3.0 bushels per second (180 bu/min). Available header widths ranged from 25 to 36 feet, allowing for efficient harvesting across various field sizes. The combine offered options for chopper and spreader configurations, effectively managing crop residue. The cab provided a comfortable and technologically advanced operating environment, enhancing operator efficiency and reducing fatigue. The 9880I STS excelled in harvesting corn, soybeans, wheat, and other small grains, establishing a reputation for reliable performance and high capacity.

9880I STS Specifications

EngineJohn Deere PowerTech 9.0L 375 HP Diesel
Separator TypeSTS Rotary - Single Tine Separator
Grain Tank300 bushels
Unloading Rate180 bu/min
Header Widths25-36 ft
Fuel Capacity200 gallons
Weight30,000 lbs (approximate)
Years Produced2003-2006

9880I STS Maintenance Tips

  • Concave Adjustments: Regularly check and adjust concave clearance based on crop type and moisture content to optimize threshing performance and minimize grain damage.
  • Belt and Chain Tension: Inspect and maintain proper tension on all belts and chains to prevent slippage, excessive wear, and potential breakdowns during harvesting.
  • Sieve and Chaffer Cleaning: Regularly clean sieves and chaffers to remove debris and ensure proper airflow, maximizing grain separation and minimizing losses.
  • Bearing Greasing: Follow the recommended greasing schedule for all bearings, especially those in high-stress areas such as the header, feederhouse, and separator, to prevent premature wear and failure.

9880I STS History & Background

The John Deere 9880I STS was introduced in 2003 as part of John Deere's expanding STS rotary combine lineup. It offered increased horsepower and capacity compared to previous models, making it a popular choice for larger farming operations. The STS rotary system was a key innovation that improved harvesting efficiency and reduced grain loss.

Frequently Asked Questions

Which threshing element is recommended for the John Deere 9880i STS?

For optimal performance in your 9880i STS, consider the AH216677 - Threshing Element, Rear, For Bullet Rotor, Hardened, (Set of 3). This hardened set is designed for efficient material processing.

What feeder house belt is suitable for the 9880i STS?

The H174885 - Belt; Fixed Speed Feeder House, Extra Heavy Duty is an ideal replacement for the John Deere 9880i STS, built for durability in demanding conditions.

Which feeder drum bearing fits the John Deere 9880i STS?

The AH219987 - Bearing w/ Housing; Feeder Drum (Import) is a direct fit for the feeder drum assembly on your 9880i STS combine.

What are some common replacement parts for the John Deere 9880i STS?

Showing 1-24 of 158 products
RE61812 - Air Intake Temperature Sensor

RE61812 - Air Intake Temperature Sensor

SKU: RE61812

$23.35

138 in stock

RE506352 - Belt Tensioner

RE506352 - Belt Tensioner

SKU: RE506352

$70.33

44 in stock

RE249801 - Belt; Fan Tensioner

RE249801 - Belt; Fan Tensioner

SKU: RE249801

$154.42

46 in stock

T70309 - Clutch Drive Plate

T70309 - Clutch Drive Plate

SKU: T70309

$48.93

5 in stock

H163561 - Final Drive Mounting Spacer

H163561 - Final Drive Mounting Spacer

SKU: H163561

$13.28

44 in stock

AH208684 - Ball Joint

AH208684 - Ball Joint

SKU: AH208684

$12.17

86 in stock

AH147263 - Hydrostatic Drive Control Cable

AH147263 - Hydrostatic Drive Control Cable

SKU: AH147263

$261.94

3 in stock

AH128391 - Pinion Seal Assy

AH128391 - Pinion Seal Assy

SKU: AH128391

$15.93

30 in stock

AL68253 - Tie Rod End

AL68253 - Tie Rod End

SKU: AL68253

$109.24

270 in stock

U46166 - Durometer 70 (2/Pack) O-Ring; .961" ID X 1.205" OD X .122" Thick

U46166 - Durometer 70 (2/Pack) O-Ring; .961" ID X 1.205" OD X .122" Thick

SKU: U46166

$1.41

148 in stock

T42302 - Durometer 70 (1/Pack) .103" Thick O-Ring;  3.987" ID X 4.193" OD

T42302 - Durometer 70 (1/Pack) .103" Thick O-Ring; 3.987" ID X 4.193" OD

SKU: T42302

$2.39

344 in stock

R56757 - Durometer 75 (2/Pack) .139" Thick O-Ring; 3.609" ID X 3.887" OD

R56757 - Durometer 75 (2/Pack) .139" Thick O-Ring; 3.609" ID X 3.887" OD

SKU: R56757

$5.29

202 in stock

R56465 - Durometer 75 (1/Pack) .103" Thick O-Ring; .674" ID X .880" OD

R56465 - Durometer 75 (1/Pack) .103" Thick O-Ring; .674" ID X .880" OD

SKU: R56465

$1.14

177 in stock

R56464 - Durometer 75 (5/Pack) .103" Thick O-Ring; .549" ID X .755" OD

R56464 - Durometer 75 (5/Pack) .103" Thick O-Ring; .549" ID X .755" OD

SKU: R56464

$0.83

451 in stock

R1225R - Durometer 75 (5/ Pack) O-Ring; 1.171" ID X 1.449" OD X .139" Thick

R1225R - Durometer 75 (5/ Pack) O-Ring; 1.171" ID X 1.449" OD X .139" Thick

SKU: R1225R

$2.56

535 in stock

H81330 - Seal Isolator

H81330 - Seal Isolator

SKU: H81330

$11.02

134 in stock

H133106 - Snap (1/Pack) Ring

H133106 - Snap (1/Pack) Ring

SKU: H133106

$0.70

679 in stock

R503312 - Engine Fan Drive Belt

R503312 - Engine Fan Drive Belt

SKU: R503312

$64.11

127 in stock

HXE95935 - Header & Reel Pump Belt

HXE95935 - Header & Reel Pump Belt

SKU: HXE95935

$236.51

60 in stock

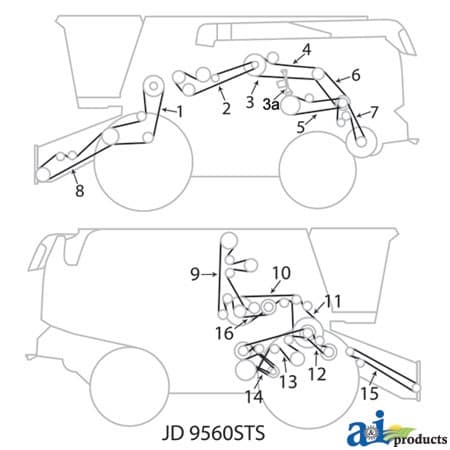

H221733 - Feed Accelerator Drive; High-Speed Belt

H221733 - Feed Accelerator Drive; High-Speed Belt

SKU: H221733

$262.77

18 in stock

H221732 - Feed Accelerator (Slow Speed or Rice) Belt

H221732 - Feed Accelerator (Slow Speed or Rice) Belt

SKU: H221732

$131.52

202 in stock

H213353 - Rotary Screen Belt

H213353 - Rotary Screen Belt

SKU: H213353

$23.75

383 in stock

H174885 - Extra Heavy Duty Belt; Fixed Speed Feeder House

H174885 - Extra Heavy Duty Belt; Fixed Speed Feeder House

SKU: H174885

$218.05

200 in stock

H154723 - Jackshaft Rear RH Belt

H154723 - Jackshaft Rear RH Belt

SKU: H154723

$78.63

26 in stock
