John Deere 9470-STS Combine Parts
Replacement parts for the John Deere 9470-STS Combine. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The John Deere 9470 STS combine, produced from 2010-2013, offered farmers a reliable and efficient harvesting solution. Powered by a robust John Deere PowerTech engine producing approximately 325 horsepower, it efficiently harvested a variety of crops. Known for its single tine separator (STS) rotary design and compatibility with a range of header widths, the 9470 STS quickly became a popular choice for increased throughput and grain quality.
About the 9470 STS
The John Deere 9470 STS was part of the Single Tine Separation (STS) combine series and was manufactured from 2010 to 2013. This combine is equipped with a John Deere PowerTech 9.0L 6-cylinder diesel engine, delivering around 325 horsepower (242 kW). The 9470 STS utilizes a rotary separator system, featuring a 30-inch diameter rotor for effective threshing and separation of grain. It boasts a grain tank capacity of approximately 300 bushels (10,600 liters), maximizing time in the field. The unloading auger provides a discharge rate of around 3.0 bushels per second (180 bu/min), minimizing unloading time. The 9470 STS is compatible with a wide array of headers, accommodating widths from 20 to 30 feet for grain platforms and up to 12-row corn heads. Options included straw chopper and spreader attachments for managing residue. The operator cab is designed for comfort and efficiency, with advanced monitoring and control systems. The 9470 STS excels in harvesting corn, soybeans, wheat, and other small grains.
9470 STS Specifications
| Engine | John Deere PowerTech 9.0L 325 HP Diesel |
|---|---|
| Separator Type | Rotary - 30-inch diameter rotor |
| Grain Tank | 300 bushels |
| Unloading Rate | 180 bu/min |
| Header Widths | 20-30 ft grain platform, up to 12-row corn head |
| Fuel Capacity | 200 gallons |
| Weight | Approx. 30,000 lbs |
| Years Produced | 2010-2013 |
9470 STS Maintenance Tips
- Concave Adjustment: Regularly inspect and adjust the concaves to ensure proper threshing and minimize grain loss. Consult the operator's manual for recommended settings based on the crop being harvested.
- Belt and Chain Tension: Check and maintain proper tension on all belts and chains, especially those driving the separator and header. Loose belts and chains can reduce efficiency and lead to premature wear.
- Sieve and Chaffer Cleaning: Regularly clean the sieves and chaffers to prevent buildup of debris. Clogged sieves can reduce cleaning efficiency and increase grain loss.
- Bearing Greasing: Lubricate all grease fittings on a regular basis, paying close attention to bearings on the header, separator, and unloading auger. Proper lubrication extends bearing life and prevents costly repairs.
9470 STS History & Background
Introduced in 2010, the John Deere 9470 STS was designed to provide increased harvesting capacity and efficiency compared to previous models. The STS rotary system became a standard for John Deere combines because of its gentler threshing action, which reduced grain damage and improved sample quality. The 9470 STS served as an important step in the evolution of combine technology, offering enhanced productivity and reliability.
Frequently Asked Questions
Which water pump is compatible with the John Deere 9470 STS combine?

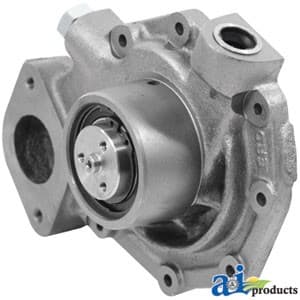

For the John Deere 9470 STS, we recommend the RE500737 - Water Pump to ensure optimal engine cooling performance.
What unloading auger belt is used on the John Deere 9470 STS?
The recommended unloading auger belt for the 9470 STS combine is the AH160080 - Belt, Unloading Auger (Set/2), designed for efficient grain transfer.
What straw chopper blade kit is available for the John Deere 9470 STS?
You can find a suitable straw chopper blade kit for your 9470 STS combine with the AH225940 - Blade Kit; Straw Chopper, Scoop Type, Set Of 8, which helps maintain effective residue management.
What are some essential wear parts for the John Deere 9470 STS combine?
To keep your 9470 STS running smoothly, consider these essential wear and replacement parts: RE522878 - Filter, Separator, Fuel/Water, RE504836 - Oil Filter, AH219987 - Bearing w/ Housing; Feeder Drum (Import), H171960 - Wear Strip, Upper Return, H213353 - Belt, Rotary Screen, and R502814 - Gasket; Thermostat Cover.

RE69243 - Engine Oil Dipstick
SKU: RE69243
217 in stock

RE61812 - Air Intake Temperature Sensor
SKU: RE61812
138 in stock

RE57604 - Dual; Heavy Duty Torsional Damper
SKU: RE57604
Out of stock

RE522794 - Fuel Pressure Sensor
SKU: RE522794
2 in stock

RE516553 - Fuel Filter Seal Kit
SKU: RE516553
232 in stock

RE505265 - Roller Idler
SKU: RE505265
78 in stock

RE167207 - Oil Pressure Sensor
SKU: RE167207
100 in stock

R80135 - Oil Filler Cap Gasket
SKU: R80135
23 in stock

AH231496 - Long Tie Rod
SKU: AH231496
7 in stock

AH231494 - Long Tie Rod
SKU: AH231494
48 in stock

H163561 - Final Drive Mounting Spacer
SKU: H163561
44 in stock

AH208684 - Ball Joint
SKU: AH208684
86 in stock

AH147263 - Hydrostatic Drive Control Cable
SKU: AH147263
3 in stock

AH128391 - Pinion Seal Assy
SKU: AH128391
30 in stock

AL68253 - Tie Rod End
SKU: AL68253
270 in stock

U46166 - Durometer 70 (2/Pack) O-Ring; .961" ID X 1.205" OD X .122" Thick
SKU: U46166
148 in stock

T42302 - Durometer 70 (1/Pack) .103" Thick O-Ring; 3.987" ID X 4.193" OD
SKU: T42302
344 in stock

R61467 - Durometer 75 (2/Pack) .103" Thick O-Ring; 2.737" ID X 2.943" OD
SKU: R61467
202 in stock

R26871 - Snap Ring
SKU: R26871
660 in stock

R1225R - Durometer 75 (5/ Pack) O-Ring; 1.171" ID X 1.449" OD X .139" Thick
SKU: R1225R
535 in stock

R112857 - Durometer 75 (1/Pack) .103" Thick O-Ring; 2.550" ID X 2.756" OD
SKU: R112857
395 in stock

H81330 - Seal Isolator
SKU: H81330
134 in stock

H133106 - Snap (1/Pack) Ring
SKU: H133106
679 in stock

B3690R - Durometer 75 (5/Pack) O-Ring; 1.859" ID X 2.137" OD X .139" Thick
SKU: B3690R
330 in stock
