Ford New Holland TW15 Tractor Parts
Ford New Holland TW15 Tractor parts in stock. Quality OEM and aftermarket replacement parts with fast shipping and competitive prices.
The Ford New Holland TW15 tractor, manufactured from 1980 to 1983, was a powerful workhorse for its time. Featuring a robust 163 HP diesel engine and a substantial PTO horsepower rating, this tractor was prized by farmers for its reliability and ability to handle demanding tasks. Its rugged design and advanced features made it a favorite for a variety of agricultural operations.
About the TW15
The Ford New Holland TW15 was part of the TW series, introduced to offer farmers higher horsepower options. Produced from 1980 to 1983, this tractor was designed for heavy-duty applications. Its engine was a Ford 401 CID 6-cylinder diesel, delivering approximately 163 engine horsepower. The transmission was a manual synchromesh with 12 forward and 4 reverse speeds. The PTO delivered around 135 horsepower and offered both 540 and 1000 RPM options, making it compatible with a wide range of implements. The hydraulic system had a capacity of around 15 GPM, powering up to 3 remote valves. It featured a Category II 3-point hitch with a lift capacity of approximately 7,800 lbs. The TW15 found use in various farming tasks, including row crop operations, hay production, livestock management, and tillage. Its larger frame and higher horsepower differentiated it from the smaller Ford tractor models, catering to larger farming operations needing more power.
TW15 Specifications
| Engine | Ford 401 CID 163 HP Diesel |
|---|---|
| PTO HP | 135 HP @ 540/1000 RPM |
| Transmission | Manual Synchromesh 12F/4R |
| Hydraulics | 15 GPM, 3 remotes |
| 3-Point Hitch | Category II, 7800 lbs |
| Fuel Capacity | 44 gallons |
| Weight | 14,750 lbs |
| Years Produced | 1980-1983 |
TW15 Maintenance Tips
- Engine Oil & Filter: Change your engine oil and filter every 250 hours using a high-quality diesel-rated oil and a filter like a Wix 51794 or equivalent.
- Hydraulic System: Regularly check hydraulic fluid levels and inspect for leaks. Replace hydraulic filters every 500 hours to prevent contamination.
- Fuel System: Use a fuel conditioner to prevent algae growth, particularly during seasonal storage. Drain the fuel/water separator regularly to remove water and sediment.
- Seasonal Storage: Before storing the tractor for extended periods, fill the fuel tank to prevent condensation, grease all lubrication points, and disconnect the battery.
TW15 History & Background
The Ford New Holland TW15 was launched in 1980 as part of the TW series, representing a significant step up in horsepower and capability for Ford tractors. It was designed to meet the needs of larger farms demanding more power for heavy tillage and other demanding tasks. While only produced for a few years, it left a lasting impression as a powerful and reliable workhorse.
Frequently Asked Questions
Which starter motor is recommended for the Ford New Holland TW15?
For the Ford New Holland TW15, the D0NN11000A - 12V,CW,D/D,LU is a suitable replacement starter.
What thermostat fits the Ford New Holland TW15?

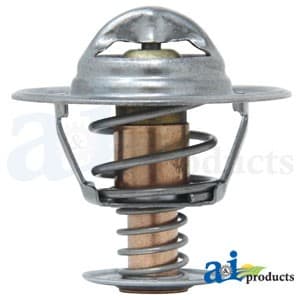

The 83916340 - THERMOSTAT is a direct fit for the Ford New Holland TW15.
What injector seal kit is compatible with the TW15?
The VPD8500 - Seal Kit; Fuel Injector is compatible with the TW15 model.
What are common replacement parts for the TW15?
Common replacement parts for the TW15 include the 82010859 - Bearing, Release (sealed), C5NE9448A - Gasket, Exhaust Manifold, E7NN11603AA - Key, Ignition, 83957097 - Ball Joint (RH), and the C0NN7A548A - Seal, PTO Clutch Piston (Outer).

VPD8500 - Fuel Injector Seal Kit
SKU: VPD8500
272 in stock

SD753 - Cylinder (Semi-Finished) Liner
SKU: SD753
28 in stock

RK157-30 - Piston with Rings (.030")
SKU: RK157-30
24 in stock

RK157-20 - Piston with Rings (.020")
SKU: RK157-20
23 in stock

RK157 - Piston with Rings (Std)
SKU: RK157
28 in stock

ZP0750137057 - Tie Rod Assembly (RH)
SKU: ZP0750137057
9 in stock

ZP0750137056 - Tie Rod Assembly (LH)
SKU: ZP0750137056
15 in stock

ZP0750137050 - Tie Rod Assembly (RH)
SKU: ZP0750137050
6 in stock

ZP0750137049 - Tie Rod Assembly (LH)
SKU: ZP0750137049
Out of stock

ZP0750125014 - Ball Joint
SKU: ZP0750125014
71 in stock

ZP0750125010 - Ball Joint
SKU: ZP0750125010
303 in stock

ZP0501205463 - Tie Rod (LH)
SKU: ZP0501205463
7 in stock

ZP0501205462 - Tie Rod (RH)
SKU: ZP0501205462
6 in stock

ZP0501205461 - Tie Rod (LH)
SKU: ZP0501205461
6 in stock

ZP0501205394 - Ball Joint
SKU: ZP0501205394
55 in stock

ZP0501205350 - Tie Rod Assembly (LH)
SKU: ZP0501205350
6 in stock

ZP0501205349 - Tie Rod Assembly (RH)
SKU: ZP0501205349
4 in stock

E2NN3289BA - Short Tie Rod
SKU: E2NN3289BA
16 in stock

E2NN3280BA - Long Tie Rod
SKU: E2NN3280BA
31 in stock

E2NN3280AA - Long Tie Rod
SKU: E2NN3280AA
26 in stock

E1NN3289AA - Short Tie Rod
SKU: E1NN3289AA
49 in stock

E1NN3280AA - Long Tie Rod
SKU: E1NN3280AA
23 in stock

D8NN3B624BA - Tie Rod Tube
SKU: D8NN3B624BA
4 in stock

D8NN3B539AB - Power Steering End
SKU: D8NN3B539AB
54 in stock
