Ford New Holland TS6-120 Tractor Parts
Browse Ford New Holland TS6-120 Tractor replacement parts. Everything from routine maintenance items to hard-to-find components.
The Ford New Holland TS6.120 tractor, manufactured from 2000-2003, was a popular choice for farmers needing a versatile machine. Powered by a reliable New Holland diesel engine producing around 120 horsepower, it offered ample power for various tasks. Its strong PTO horsepower made it ideal for operating implements like balers and mowers, contributing to its widespread adoption in hay and livestock operations.
About the TS6.120
The Ford New Holland TS6.120 was part of the TS series, which aimed to provide a modern and comfortable tractor for a variety of farming applications. Production ran from approximately 2000 to 2003. This model featured a New Holland 7.5L 6-cylinder diesel engine producing around 120 horsepower. The engine's robust design and efficient fuel consumption were key selling points. Transmission options typically included a partial powershift transmission known as the Electro Command. The PTO horsepower was rated around 100-105 HP, available in both 540 and 1000 RPM configurations. Hydraulic capacity was approximately 16 GPM, with typically two to three rear remotes. It featured a Category II 3-point hitch, capable of lifting around 7,400 lbs. The TS6.120 was frequently used for row crop work, hay production, livestock feeding, and general tillage operations. It distinguished itself from smaller models in the TS series with its increased power and larger frame, while offering a more affordable alternative to larger frame tractors in the New Holland lineup.
TS6.120 Specifications
| Engine | New Holland 7.5L 120 HP Diesel |
|---|---|
| PTO HP | 105 HP @ 540/1000 RPM |
| Transmission | Electro Command Partial Powershift, 24x24 |
| Hydraulics | 16 GPM, 2-3 remotes |
| 3-Point Hitch | Category II, 7400 lbs lift capacity |
| Fuel Capacity | 47 gallons |
| Weight | 12,000 lbs (approx.) |
| Years Produced | 2000-2003 |
TS6.120 Maintenance Tips
- Check engine oil and filter every 250 hours of operation, using a high-quality oil designed for diesel engines.
- Inspect and service the hydraulic system regularly, paying attention to leaks and ensuring the hydraulic fluid is clean and at the proper level. Replace hydraulic filters according to the manufacturer's recommendations.
- Use fresh, clean diesel fuel and inspect the fuel filters regularly. Drain any water from the fuel tank to prevent corrosion and fuel system problems.
- Before storing the tractor for the off-season, fill the fuel tank to prevent condensation, change the engine oil and filter, and grease all lubrication points. Consider using a fuel stabilizer to prevent fuel degradation.
TS6.120 History & Background
The Ford New Holland TS6.120 was introduced in 2000 as part of the TS series, replacing earlier models and incorporating updated styling and improved features. This series aimed to provide a versatile and reliable tractor for a wide range of farming operations. It played a significant role in modernizing agricultural practices by offering a blend of power, comfort, and ease of use.
Frequently Asked Questions
Which starter is suitable for the Ford New Holland TS6.120?
For reliable starting performance, consider the 82032859 - Starter; PLGR, 12V, 4.2KW, CW, 10 Tooth.
What replacement clutch disc is recommended for the TS6.120?
A suitable replacement clutch disc for this model is the 82983565 - Clutch Disc: 14" w/ damper.
Which release bearing is compatible with the Ford New Holland TS6.120?
The NDA7580B - Bearing, Release (sealed) is designed to fit the TS6.120 model.
What are some common replacement parts for the Ford New Holland TS6.120?
Owners frequently seek replacement parts such as the F0NNN779AA - Bearing, Flywheel (sealed), 82983566 - Pressure Plate: 14", diaphragm style, 8093882 - Connecting Rod Bearing; Std., 2995787 - Main Bearing; Std., 47445386 - Drawbar, and the 47370116 - Coupling, Quick Release. Regular maintenance with quality replacements helps ensure long-term performance.

47370116 - Quick Release Coupling
SKU: 47370116
158 in stock

E9NN19N715AA - Dual Press.Switch
SKU: E9NN19N715AA
9 in stock
C5NNN779B - SUB TO 6108
SKU: C5NNN779B
358 in stock

8094960 - +0.25MM Connecting Rod Bearing
SKU: 8094960
9 in stock

8093882 - Std. Connecting Rod Bearing
SKU: 8093882
238 in stock

4894139 - Hex Socket Plug
SKU: 4894139
255 in stock

4892708 - Connecting Rod Bushing
SKU: 4892708
288 in stock

2995788 - +0.25MM Main Bearing
SKU: 2995788
1 in stock
2995787 - Std. Main Bearing
SKU: 2995787
1 in stock

84208918 - Bosch Type PLGR 2.6KW Starter; 12V
SKU: 84208918
4 in stock

82032859 - 10 Tooth CW 4.2KW 12V Starter; PLGR
SKU: 82032859
6 in stock

177250A1 - Light Switch
SKU: 177250A1
71 in stock

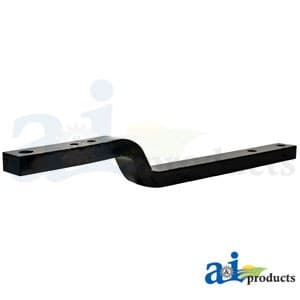

47445386 - Drawbar
SKU: 47445386
11 in stock

2995785 - +0.25MM Thrust Bearing
SKU: 2995785
6 in stock

NDA7580B - Release (sealed) Bearing
SKU: NDA7580B
525 in stock

F0NNN779AA - Flywheel (sealed) Bearing
SKU: F0NNN779AA
358 in stock

82983566 - diaphragm style Pressure Plate: 14"
SKU: 82983566
Out of stock

82983565 - Clutch Disc: 14" w/ damper
SKU: 82983565
9 in stock

82010859 - Release (sealed) Bearing
SKU: 82010859
525 in stock
