Ford New Holland TD95D Tractor Parts

TD95D parts and accessories

The Ford New Holland TD95D tractor, manufactured from 2003 to 2007, became a favorite among farmers due to its reliable performance and versatility. Powered by a robust 95 HP Iveco diesel engine, it delivered ample power for various farm tasks. Its 78 PTO horsepower made it well-suited for operating a wide range of implements.

The Ford New Holland TD95D was produced between 2003 and 2007, filling a vital role in the mid-size utility tractor market. It's powered by an Iveco 8045.45 diesel engine, a 4.5L (274 cubic inch) four-cylinder powerhouse producing approximately 95 horsepower. The engine's displacement and efficient design contributed to its fuel economy and lugging ability. Transmission options included a standard 12-speed forward and 12-speed reverse mechanical transmission providing a good range of speeds. A synchronized shuttle shift added to operator convenience. The TD95D boasts a 78 PTO horsepower rating, offering both 540 and 1000 RPM PTO options, making it compatible with various implements. Its hydraulic system delivers around 15.1 GPM (57.2 L/min) and is typically equipped with two rear remotes. The 3-point hitch is a Category II, capable of lifting approximately 5,952 lbs (2700 kg). This tractor was commonly used for row crop work, hay production, livestock operations, and general tillage. Compared to smaller TD series tractors, the TD95D offers increased power and hydraulic capacity, making it ideal for demanding tasks.

Specifications

Engine	Iveco 8045.45 95 HP 4.5L Diesel
PTO HP	78 HP @ 540/1000 RPM
Transmission	Mechanical 12x12
Hydraulics	15.1 GPM, 2 remotes
3-Point Hitch	Category II, 5952 lbs
Fuel Capacity	26.4 gallons
Weight	8,267 lbs
Years Produced	2003-2007

Maintenance Tips

Change engine oil and filter every 250 hours of operation using a high-quality oil meeting Ford New Holland specifications.
Inspect and clean the hydraulic system filters regularly (every 500 hours) to prevent contamination and maintain optimal hydraulic performance.
Use clean, high-quality diesel fuel and replace the fuel filter according to the manufacturer's recommendations (usually every 250-500 hours) to prevent fuel system issues.
Before seasonal storage, fill the fuel tank to minimize condensation and add a fuel stabilizer to prevent fuel degradation.

History & Background

Introduced in 2003, the Ford New Holland TD95D was part of the TD series of tractors designed for versatility and reliability. The model was a popular offering in the mid-size utility tractor market during its production run. There were no major redesigns during its production run, reinforcing its initial solid design and engineering.

Frequently Asked Questions

What engine is in the Ford New Holland TD95D?

The Ford New Holland TD95D is equipped with an Iveco 8045.45 4.5L four-cylinder diesel engine, producing approximately 95 horsepower.

What is the PTO horsepower on a TD95D?

The TD95D has a PTO horsepower rating of 78 HP and offers both 540 and 1000 RPM PTO options.

What oil filter fits the TD95D?

The oil filter for the TD95D typically cross-references to a Fram PH3600 or a Wix 51773. Always verify compatibility with your specific engine serial number.

What are common parts needed for the TD95D?

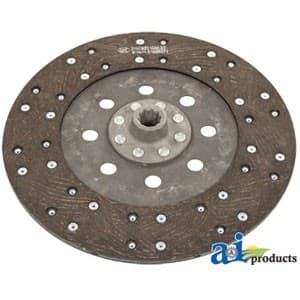

Common wear parts include engine oil filters, fuel filters, hydraulic filters, belts (fan belt, alternator belt), hydraulic cylinder seal kits, steering components (tie rod ends), and clutch discs/pressure plates.
