Ford New Holland TD5050 Tractor Parts

Find parts for your Ford New Holland TD5050 Tractor. We stock OEM and quality aftermarket replacements ready to ship.

The Ford New Holland TD5050, manufactured from 2007-2012, became a favorite for its reliable performance and versatility. Powered by a robust 75 HP diesel engine and boasting a PTO horsepower of around 65, the TD5050 offered the muscle needed for various farming tasks while remaining fuel-efficient. Its comfortable operator station and user-friendly controls further solidified its popularity among farmers.

About the TD5050

The Ford New Holland TD5050 was introduced in 2007 as part of the TD5000 series, aimed at providing a reliable and cost-effective tractor solution for a wide range of farming applications. Production continued until 2012. Under the hood sits an IVECO 8045.45 4-cylinder diesel engine, producing approximately 75 horsepower. Engine displacement is 4.5 liters (274 cubic inches). This engine delivers ample power for PTO-driven implements and hydraulic tasks. The standard transmission is a mechanical 12x12 synchro shuttle, offering a good range of speeds for various field conditions. PTO horsepower is rated around 65 HP, available in both 540 RPM and 1000 RPM options. The hydraulic system delivers approximately 13.2 GPM to power implements, with typically two rear remote valves. A Category II 3-point hitch provides a lift capacity of around 5,732 lbs, allowing for the use of a wide array of implements. The TD5050 found its niche in row crop operations, hay production, livestock management, and light tillage work. Compared to smaller tractors in the Ford New Holland lineup, the TD5050 offered more power and hydraulic capacity, while remaining more compact and maneuverable than larger, more expensive models.

TD5050 Specifications

EngineIVECO 8045.45 75 HP Diesel
PTO HP65 HP @ 540/1000 RPM
TransmissionMechanical Synchro Shuttle 12x12
Hydraulics13.2 GPM, 2 remotes
3-Point HitchCategory II, 5732 lbs
Fuel Capacity26.4 gallons
Weight7,584 lbs
Years Produced2007-2012

TD5050 Maintenance Tips

  • Engine Oil & Filter: Change the engine oil and filter every 250 hours using high-quality oil that meets Ford New Holland specifications. Regularly check the oil level and inspect for any leaks.
  • Hydraulic System: Inspect hydraulic hoses and fittings for leaks or damage. Change the hydraulic fluid and filter every 1200 hours or annually, whichever comes first, using the recommended fluid type.
  • Fuel System: Use clean, high-quality diesel fuel. Regularly drain the fuel sediment bowl to remove water and contaminants. Inspect the fuel filter and replace it as needed, typically every 500 hours.
  • Seasonal Storage: Before storing the tractor for extended periods, stabilize the fuel with a fuel stabilizer. Disconnect the battery and store it in a cool, dry place. Grease all lubrication points and cover the tractor to protect it from the elements.

TD5050 History & Background

The Ford New Holland TD5050 was launched in 2007 as part of a refreshed line of utility tractors designed to meet the needs of modern farmers. There were no major redesigns during its production run. It became a popular choice due to its combination of power, reliability, and affordability, contributing to Ford New Holland's continued success in the agricultural machinery market.

Frequently Asked Questions

Which water pump fits the Ford New Holland TD5050?

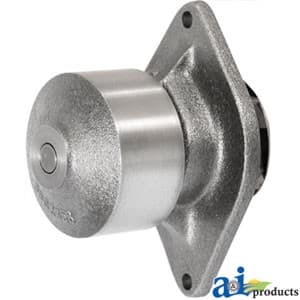

The recommended replacement water pump for the TD5050 is J802970 - Pump, Water.

What replacement PTO output shaft (540 RPM) is available for the TD5050?

For the 540 RPM PTO, a suitable replacement output shaft is 47133081 - SHAFT, PTO OUTPUT (540 RPM).

What engine oil filter fits the TD5050?

The recommended engine oil filter for this model is 87803205 - Filter, Engine Oil.

What are common parts needed for the TD5050?

Showing 1-24 of 77 products
