Ford New Holland TD5020 Tractor Parts
Ford New Holland TD5020 Tractor parts in stock. Quality OEM and aftermarket replacement parts with fast shipping and competitive prices.
The Ford New Holland TD5020 tractor, manufactured from 2008-2012, was a reliable workhorse for many farmers. Powered by a dependable 75 HP diesel engine, and delivering 65 PTO horsepower, the TD5020 was particularly popular due to its versatility in handling a wide array of agricultural tasks, from haying to light tillage. Its straightforward design made it easy to operate and maintain.
About the TD5020
The Ford New Holland TD5020 was part of the TD5000 series, produced between 2008 and 2012. It was designed as a utility tractor for diverse farming operations. The engine is an Iveco 8035.06 3.0L 3-cylinder diesel engine, producing approximately 75 horsepower. This engine offered a good balance of power and fuel efficiency. The TD5020 typically featured a mechanical transmission with 12 forward and 12 reverse gears, providing ample speed options for different tasks. The PTO horsepower is rated at 65 HP, with a standard 540 RPM PTO. Hydraulically, the TD5020 had a flow rate of around 13.2 GPM powering two rear remotes. The 3-point hitch is a Category II, with a lift capacity of approximately 5,732 lbs. Common applications included hay production, livestock operations (feeding and manure handling), light tillage (disking and cultivating), and row crop work. Compared to other models in the lineup, the TD5020 offered a step up in power from the smaller TD5010, while remaining a relatively compact and maneuverable tractor.
TD5020 Specifications
| Engine | Iveco 8035.06 75 HP 3.0L Diesel |
|---|---|
| PTO HP | 65 HP @ 540 RPM |
| Transmission | Mechanical 12F/12R |
| Hydraulics | 13.2 GPM, 2 remotes |
| 3-Point Hitch | Category II, 5732 lbs |
| Fuel Capacity | 23.8 gallons |
| Weight | 6,614 lbs |
| Years Produced | 2008-2012 |
TD5020 Maintenance Tips
- Engine Oil and Filter: Change the engine oil and filter every 250 hours of operation using a high-quality oil that meets the manufacturer's specifications.
- Hydraulic System: Inspect hydraulic fluid levels regularly and change the hydraulic filter every 500 hours or as recommended by the manufacturer. Use only specified hydraulic fluid to prevent damage.
- Fuel System: Use clean, high-quality diesel fuel. Regularly drain the fuel/water separator to prevent water from entering the fuel system. Consider adding a fuel stabilizer during seasonal storage.
- Seasonal Storage: Before storing the tractor for extended periods, fill the fuel tank to prevent condensation, grease all lubrication points, and disconnect the battery. Store the tractor in a dry location.
TD5020 History & Background
The Ford New Holland TD5020 was introduced in 2008 as part of the TD5000 series, aiming to provide farmers with a reliable and versatile utility tractor. There were no major redesigns during its production run. The TD5020 contributed to the ongoing legacy of Ford New Holland tractors as a dependable choice for various agricultural tasks.
Frequently Asked Questions
Which starter fits the Ford New Holland TD5020?
The recommended replacement starter for the TD5020 is 84208918 - Starter; 12V, 2.6KW, PLGR, Bosch Type.
Which 540 RPM PTO output shaft fits the Ford New Holland TD5020?
The 540 RPM PTO output shaft for the TD5020 is 47133081 - SHAFT, PTO OUTPUT (540 RPM).
Which in-line fuel filter fits the Ford New Holland TD5020?
The recommended in-line fuel filter for the TD5020 is 87329736 - Filter, Fuel; In-Line.
What are some common replacement parts for the Ford New Holland TD5020?
Several common replacement parts for the TD5020 include the FS19599J - Separator, Fuel/Water, Cartridge (QTY 1), 5085085 - Tie Rod End, Outer, RH, 87345759 - Bearing, Clutch Release, 5190591 - SEAL KIT; STEERING CYLINDER REPAIR, 87311822 - Alternator, and 87354681 - Cylinder, Brake Master.

5109553 - MFWD Tie Rod
SKU: 5109553
84 in stock

5085085 - RH Outer Tie Rod End
SKU: 5085085
8 in stock

5085076 - LH Outer Tie Rod End
SKU: 5085076
15 in stock

87688301 - Cab Isolator
SKU: 87688301
167 in stock

87620234 - LH Glass; Cab Door
SKU: 87620234
59 in stock

87620223 - RH Glass; Cab Door
SKU: 87620223
45 in stock

5089562 - Rear Window Glass
SKU: 5089562
15 in stock

5198353 - PTO Driven Shaft
SKU: 5198353
5 in stock

5185602 - PTO (540 RPM) Shaft
SKU: 5185602
37 in stock

5185601 - PTO; 1000 RPM Shaft
SKU: 5185601
6 in stock

47133081 - PTO OUTPUT (540 RPM) SHAFT
SKU: 47133081
45 in stock

47133076 - PTO Output (1000 RPM) Shaft
SKU: 47133076
Out of stock

84402860 - A/C Thermostat Assembly
SKU: 84402860
62 in stock

81870363 - Blower Motor Resistor
SKU: 81870363
8 in stock

5165615 - w/o High Pressure Switch Reciever/Dryer
SKU: 5165615
Out of stock

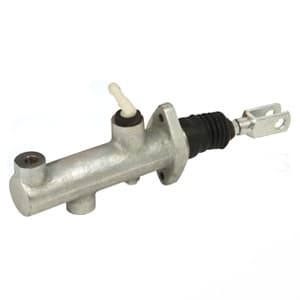

87354681 - Brake Master Cylinder
SKU: 87354681
36 in stock

5161828 - SYNCHRONIZER
SKU: 5161828
16 in stock

4894139 - Hex Socket Plug
SKU: 4894139
255 in stock

2830266 - Fuel Lift Pump
SKU: 2830266
58 in stock

87311822 - Alternator
SKU: 87311822
27 in stock

84208918 - Bosch Type PLGR 2.6KW Starter; 12V
SKU: 84208918
4 in stock

5146155 - Ignition Switch
SKU: 5146155
37 in stock

47129342 - Lower Link Sensor Shaft Seal
SKU: 47129342
23 in stock

FS19599J - Cartridge (QTY 1) Fuel/Water Separator
SKU: FS19599J
Out of stock
