Ford New Holland TB100 Tractor Parts

TB100 parts and accessories

The Ford New Holland TB100 tractor, manufactured from 1998 to 2003, was a reliable workhorse known for its robust performance in various agricultural applications. Powered by a 98 HP diesel engine, it delivered ample power to the PTO, rated at 84 HP. Farmers appreciated its dependable nature and versatility for tasks ranging from tillage to haying.

The Ford New Holland TB100 was introduced as part of the TB series, aiming to provide farmers with a mid-range tractor that balanced power and efficiency. Production spanned from 1998 to 2003. At its heart lies a reliable Iveco 8065.05 diesel engine, delivering a rated 98 horsepower with a displacement of 302 cubic inches (4.9L). This six-cylinder engine provides sufficient power for demanding tasks. Transmission options typically included a partial powershift transmission with multiple forward and reverse speeds, enhancing operational efficiency. The TB100 features an independent PTO rated at 84 horsepower, operating at 540 RPM. The hydraulic system provides a flow rate around 15 GPM, supporting implements with multiple remote valves. A Category II 3-point hitch allows for versatile implement compatibility. Commonly used in row crop operations, hay production, and livestock farming, the TB100 distinguished itself within the Ford New Holland lineup by offering a higher horsepower option than the smaller models while remaining more compact and maneuverable than larger frame tractors, catering to diverse farming needs.

Specifications

Engine	Iveco 8065.05 98 HP 302 ci Diesel
PTO HP	84 HP @ 540 RPM
Transmission	Partial Powershift
Hydraulics	15 GPM, Multiple remotes
3-Point Hitch	Category II, 5000 lbs lift capacity (approximate)
Fuel Capacity	29 gallons
Weight	8,400 lbs (approximate)
Years Produced	1998-2003

Maintenance Tips

Engine Oil & Filter: Change the engine oil and filter every 250 hours using the recommended oil type and a quality filter to ensure optimal engine performance and longevity.
Hydraulic System: Regularly inspect hydraulic fluid levels and condition, and change the hydraulic filter every 500 hours to prevent contamination and maintain hydraulic system efficiency.
Fuel System: Use clean fuel and inspect the fuel filter regularly, replacing it as needed, to prevent fuel system issues and ensure smooth engine operation.

History & Background

The Ford New Holland TB100 was released in the late 1990s as part of a broader effort to update the Ford New Holland tractor lineup. It represented a solid mid-range option for farmers needing reliable power for a variety of tasks. While it didn't undergo radical redesigns during its production run, it remained a popular choice for its dependability and value.

Frequently Asked Questions

What engine is in the Ford New Holland TB100?

The Ford New Holland TB100 is equipped with an Iveco 8065.05 diesel engine, producing 98 horsepower with a 302 cubic inch (4.9L) displacement.

What is the PTO horsepower on a TB100?

The PTO horsepower on the Ford New Holland TB100 is rated at 84 horsepower, operating at 540 RPM.

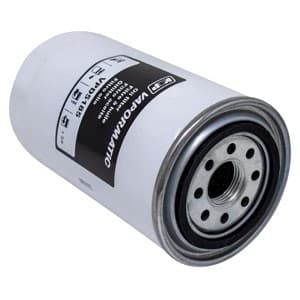

What oil filter fits the TB100?

The TB100 typically uses a filter with cross-references such as: Fleetguard LF3349, Fram PH3985, or Wix 51794. Always verify the correct filter for your specific model and year.

What are common parts needed for the TB100?

Commonly needed parts for the TB100 include engine oil filters, fuel filters, hydraulic filters, belts, hydraulic cylinder seal kits, steering components like tie rod ends, and clutch components.
