Ford New Holland F100 Tractor Parts
Ford New Holland F100 Tractor parts in stock. Quality OEM and aftermarket replacement parts with fast shipping and competitive prices.
The Ford New Holland F100 was a popular utility tractor produced from 1996-1999. This dependable machine was powered by a Shibaura 2.0L 3-cylinder diesel engine delivering approximately 35 horsepower. Its robust design and reliable PTO horsepower made it a favorite for small to medium-sized farms, excelling in various agricultural tasks.
About the F100
The Ford New Holland F100, manufactured between 1996 and 1999, served as a versatile utility tractor in the Ford New Holland lineup. It was powered by a Shibaura N843 diesel engine, a 2.0L (121.2 ci) 3-cylinder engine producing around 35 horsepower. The tractor featured a Synchro Shuttle transmission with 9 forward and 3 reverse gears, providing a wide range of speeds for different applications. Its rear PTO delivered approximately 30 horsepower at 540 RPM, suitable for operating implements like mowers, tillers, and balers. The hydraulic system offered a capacity of around 6.9 GPM, powering the Category I 3-point hitch with a lift capacity of approximately 1,850 lbs. The F100 found its niche in various farming operations, including row crop cultivation, hay production, livestock management, and light tillage tasks. Compared to larger models, the F100's compact size and agility made it ideal for smaller farms and tasks requiring maneuverability. Its simple design and reliable engine contributed to its longevity and ease of maintenance.
F100 Specifications
| Engine | Shibaura N843 35 HP Diesel |
|---|---|
| PTO HP | 30 HP @ 540 RPM |
| Transmission | Synchro Shuttle 9F/3R |
| Hydraulics | 6.9 GPM, 1 remotes |
| 3-Point Hitch | Category I, 1850 lbs lift |
| Fuel Capacity | 11.9 gallons |
| Weight | 3318 lbs |
| Years Produced | 1996-1999 |
F100 Maintenance Tips
- Engine Oil & Filter: Change engine oil and filter every 250 hours of operation. Use high-quality diesel engine oil meeting API CH-4 or higher specifications.
- Hydraulic System: Inspect hydraulic fluid levels regularly and change the hydraulic filter every 500 hours. Use only Ford New Holland-approved hydraulic fluid.
- Fuel System: Use clean, high-quality diesel fuel. Inspect and clean the fuel filter regularly to prevent clogging and ensure optimal engine performance.
- Seasonal Storage: Before storing the tractor for an extended period, drain the fuel tank, add a fuel stabilizer, and lubricate all grease fittings to prevent corrosion.
F100 History & Background
The Ford New Holland F100 was introduced in 1996 as a utility tractor aimed at smaller farms and operations needing a versatile machine. It remained relatively unchanged throughout its production run, offering a consistent and reliable performance. The F100 filled a crucial gap in the Ford New Holland tractor lineup, providing a compact and economical option for a wide range of agricultural applications.
Frequently Asked Questions
What primary air filter is recommended for the F100?
For optimal engine performance, the AF25292 - Filter, Air, Primary Magnum RS is recommended as a primary air filter for the Ford New Holland F100.
Which inner air filter fits the Ford New Holland F100?
The 87682999 - Filter, Inner Air is designed to fit the Ford New Holland F100, ensuring clean air intake for the engine.
What oil filter fits the F100?
For the Ford New Holland F100, we recommend the LF682J - Filter, Lube, Spin-On. This filter is designed for effective lubrication and engine protection.
What are common parts needed for the F100?
Regular maintenance and replacement of wear parts are crucial for the F100. Common parts include the FF5135J - Filter, Fuel, Spin-On, HF6553 - Filter, Hydraulic, Spin-On, and the FS19504J - Separator, Fuel/Water, Spin-On. Additionally, parts like the 51581233 - Switch, Pressure and 47125870 - Sway Block, RH are often replaced to maintain optimal operation.

51581233 - Pressure Switch
SKU: 51581233
60 in stock

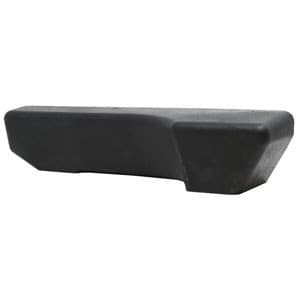

47125871 - LH Sway Block
SKU: 47125871
51 in stock

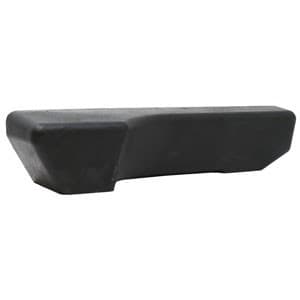

47125870 - RH Sway Block
SKU: 47125870
55 in stock

LF682J - Spin-On (QTY 1) Lube Filter
SKU: LF682J
Out of stock

LF682 - Spin-On (QTY 12) Lube Filter
SKU: LF682
54 in stock

LF3481J - Combination (QTY 1) Lube Filter
SKU: LF3481J
Out of stock

LF3481 - Combination (QTY 12) Lube Filter
SKU: LF3481
18 in stock

HF6553 - Spin-On (QTY 1) Hydraulic Filter
SKU: HF6553
43 in stock

FS19504J - Spin-On (QTY 1) Fuel/Water Separator
SKU: FS19504J
Out of stock

FS19504 - Spin-On (QTY 12) Fuel/Water Separator
SKU: FS19504
3 in stock

FF5135J - Spin-On (QTY 1) Fuel Filter
SKU: FF5135J
Out of stock

FF5135 - Spin-On (QTY 12) Fuel Filter
SKU: FF5135
63 in stock

AF4894KM - Primary (QTY 1) Air Filter
SKU: AF4894KM
1 in stock

AF25558 - Secondary Magnum RS (QTY 1) Air Filter
SKU: AF25558
31 in stock

AF25292 - Primary Magnum RS (QTY 1) Air Filter
SKU: AF25292
28 in stock

87682999 - Inner Air Filter
SKU: 87682999
158 in stock
