Ford New Holland 941 Tractor Parts
Find parts for your Ford New Holland 941 Tractor. We stock OEM and quality aftermarket replacements ready to ship.
The Ford New Holland 941 tractor, manufactured from 1958-1960, was a reliable workhorse on farms across America. Powered by a robust gasoline engine producing approximately 34 horsepower, it offered around 30 PTO horsepower. Farmers appreciated the 941 for its simplicity, dependability, and versatility in handling a variety of tasks around the farm.
About the 941
The Ford 941, a member of the 'Hundred Series' tractors, was produced between 1958 and 1960. These tractors were renowned for their affordability and adaptability. The 941 features a 134 cubic inch Ford gasoline engine, delivering roughly 34 engine horsepower. This model uses a 4-speed manual transmission, providing the necessary gear ratios for pulling implements and maneuvering in fields. The PTO delivers approximately 30 horsepower at 540 RPM, suitable for operating mowers, balers, and other PTO-driven equipment. The hydraulic system provides around 4.5 GPM of flow to operate the 3-point hitch, a Category I system, capable of lifting approximately 1500 lbs. These tractors were commonly used for a variety of farming applications including light tillage, haying operations, and general farm maintenance. Its smaller size and lower horsepower distinguished it from larger models like the Ford 801 or 901 series, making it a popular choice for smaller farms or specialized tasks.
941 Specifications
| Engine | Ford 134 ci 34 HP Gasoline |
|---|---|
| PTO HP | 30 HP @ 540 RPM |
| Transmission | Manual 4-Speed |
| Hydraulics | 4.5 GPM, 1 remote |
| 3-Point Hitch | Category I, 1500 lbs Lift Capacity |
| Fuel Capacity | 14 gallons |
| Weight | 2850 lbs |
| Years Produced | 1958-1960 |
941 Maintenance Tips
- Engine Oil & Filter: Change the engine oil and filter every 100-150 hours of operation using a high-quality oil suitable for gasoline engines of this era.
- Hydraulic System: Regularly check hydraulic fluid levels and inspect for leaks. Replace the hydraulic filter annually to prevent contamination and ensure smooth operation.
- Fuel System: Use fresh, clean fuel and consider adding a fuel stabilizer, especially during seasonal storage, to prevent gum buildup and corrosion in the carburetor.
941 History & Background
The Ford 941 tractor was introduced as part of Ford's 'Hundred Series' line, designed to offer farmers a modern and affordable tractor option. While it didn't undergo major redesigns during its short production run, it represented a significant step forward in tractor technology with improved hydraulics and ergonomics. It solidified Ford's position as a leading provider of agricultural equipment during that era.
Frequently Asked Questions
Which ring gear fits the flywheel of the Ford New Holland 941?
For the Ford New Holland 941, the correct replacement ring gear for the flywheel is 9N6384 - Ring Gear, Flywheel.
Which PTO housing gasket is used on the Ford New Holland 941?
The appropriate PTO housing gasket for the Ford New Holland 941 is C5NN747A - Gasket, PTO Housing.
What starter relay assembly is recommended for the Ford New Holland 941?
We recommend the D2AF11450AA - Starter Relay Assembly (12 Volt) for the Ford New Holland 941.
What are some common replacement parts for the Ford New Holland 941?
For routine maintenance and common replacements on your Ford New Holland 941, consider parts such as the NAA5230E - Muffler, a new D8NN8575CA - Thermostat, 180°, or a fresh 1T8100A2 - Cap, Radiator (4 Lb.). Other frequently replaced items include the 8N3600 - Steering Wheel, NDA7580B - Bearing, Release (sealed), and the C0NN9448C - Gasket, Intake/Exhaust Manifold.

310062 - Sealed Beam Bulb (12 Volt)
SKU: 310062
274 in stock

310061 - Sealed Beam Bulb (6 Volt)
SKU: 310061
125 in stock

RW10286 - Rear Wheel 10" x 28" Rim
SKU: RW10286
219 in stock

K914053 - Front Wheel 4.5" X 16" Rim
SKU: K914053
146 in stock

957E1015D - Front Wheel 4.5" X 16" Rim
SKU: 957E1015D
146 in stock

83988088 - Front Wheel 4.5" X 16" Rim
SKU: 83988088
146 in stock

83960326 - Front Wheel 4.5" X 16" Rim
SKU: 83960326
146 in stock

83958545 - Front Wheel 4.5" X 16" Rim
SKU: 83958545
146 in stock

82006575 - Front Wheel 4.5" X 16" Rim
SKU: 82006575
146 in stock

704675R91 - Front Wheel 4.5" X 16" Rim
SKU: 704675R91
146 in stock

C5NN747A - PTO Housing Gasket
SKU: C5NN747A
150 in stock

9N735B - 1.125" PTO Shaft Sleeve
SKU: 9N735B
10 in stock

NAA5230E - Muffler
SKU: NAA5230E
645 in stock

C5NN7277C - Gear Shift Boot
SKU: C5NN7277C
382 in stock

B9NN7A381B - Transmission (2nd) Gear
SKU: B9NN7A381B
8 in stock

8N7052A - Transmission Main Drive Gear Oil Seal
SKU: 8N7052A
44 in stock

86533415 - Brake Drum
SKU: 86533415
35 in stock

NAA55250B - Manifold Elbow
SKU: NAA55250B
13 in stock

EBU6507A - Intake Valve
SKU: EBU6507A
244 in stock

EAA6513A - Valve Spring
SKU: EAA6513A
616 in stock

E3NN9030AA - Fuel Cap
SKU: E3NN9030AA
236 in stock

C0NN9448C - Intake/Exhaust Manifold Gasket
SKU: C0NN9448C
234 in stock

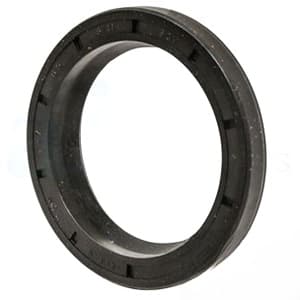

C0NN6700A - Front Crankshaft Seal
SKU: C0NN6700A
151 in stock

C0NN6251A - Camshaft
SKU: C0NN6251A
31 in stock
