The Ford New Holland 8N, manufactured from 1947 to 1952, is a true icon in American agriculture. Powered by a 28 horsepower gasoline engine and boasting around 23 PTO horsepower, the 8N was a reliable and affordable workhorse. Its ease of use and implement compatibility made it incredibly popular, helping modernize farming for countless families.

The Ford 8N tractor was introduced in 1947 as a successor to the Ford 9N and 2N models, building upon their success while incorporating improvements like the Ferguson three-point hitch system. Production continued until 1952. The 8N features a four-cylinder, overhead valve, gasoline engine manufactured by Ford, producing approximately 28 horsepower with a displacement of 119.7 cubic inches. It utilizes a four-speed manual transmission. The rear PTO delivers about 23 horsepower at 540 RPM. The hydraulic system provides a flow rate of around 4.7 GPM. The three-point hitch is a Category I. Farmers used the 8N for a wide range of tasks, including plowing, cultivating row crops, haying, and general farm work. Its compact size and maneuverability also made it well-suited for livestock operations. The 8N distinguished itself with its 'red tiger' design and improved operator controls compared to earlier models.

Specifications

Engine	Ford 28 HP Gas, 119.7 ci
PTO HP	23 HP @ 540 RPM
Transmission	4-Speed Manual
Hydraulics	4.7 GPM, No remotes
3-Point Hitch	Category I, 1000 lbs lift capacity
Fuel Capacity	17 gallons
Weight	2840 lbs
Years Produced	1947-1952

Maintenance Tips

Change your engine oil and filter every 100-150 hours of operation using a high-quality oil appropriate for older engines (SAE 30 or 10W-30 often recommended).
Regularly check and maintain your hydraulic fluid level and filter. Inspect hoses and fittings for leaks and replace as needed to ensure proper three-point hitch and implement operation.
Use fresh, clean fuel and consider adding a fuel stabilizer, especially during seasonal storage, to prevent gum and varnish buildup in the carburetor and fuel lines.
Before storing your 8N for the winter, drain the carburetor bowl, grease all fittings, and consider covering the tractor to protect it from the elements.

History & Background

The Ford 8N was released in 1947, representing a significant advancement over its predecessors. It quickly became one of the best-selling tractors of all time, thanks to its affordability and innovative features. The 8N played a pivotal role in the post-World War II agricultural boom, helping farmers increase efficiency and productivity.

Frequently Asked Questions

What engine is in the Ford New Holland 8n?

The Ford 8N is equipped with a four-cylinder, overhead valve, gasoline engine manufactured by Ford. It produces approximately 28 horsepower with a displacement of 119.7 cubic inches.

What is the PTO horsepower on a 8n?

The Ford 8N delivers approximately 23 PTO horsepower at 540 RPM.

What oil filter fits the 8n?

Common oil filter cross-references for the Ford 8N include Fram PH3614, NAPA 1010, and Wix 51010. Always verify compatibility with your specific engine and filter base.

What are common parts needed for the 8n?

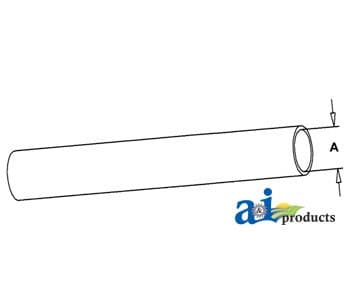

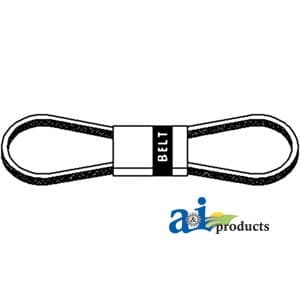

Common wear parts for the Ford 8N include engine oil filters, fuel filters, air filters, radiator hoses, fan belts, hydraulic pump seals, steering sector gear and bushings, clutch disc and pressure plate components.
