Ford New Holland 8530 Tractor Parts

Browse Ford New Holland 8530 Tractor replacement parts. Everything from routine maintenance items to hard-to-find components.

The Ford New Holland 8530, manufactured from 1990 to 1997, was a popular tractor known for its reliability and power. Equipped with a robust 7.5L Ford diesel engine producing around 160 horsepower, it delivered substantial pulling power. Its high PTO horsepower made it a versatile choice for various farming operations, contributing to its widespread adoption among farmers.

About the 8530

The Ford New Holland 8530 was introduced in 1990 as part of the 30 series, building upon the success of earlier Ford tractor models. Production continued until 1997. Powering the 8530 is a 7.5L (456 cubic inch) Ford six-cylinder diesel engine, delivering approximately 160 horsepower. This engine was renowned for its durability and torque output, making it well-suited for demanding agricultural tasks. The transmission options included a partial power shift transmission offering multiple speeds, usually 16 forward and 8 reverse, enhancing operational flexibility in the field. The PTO horsepower is rated at around 140 HP, available in both 540 and 1000 RPM configurations. The hydraulic system provides a flow rate of approximately 28 GPM, powering implements and accessories, typically with 2-3 remote valves. Its Category II 3-point hitch offers a lift capacity of around 8,000 lbs. The 8530 found applications in various farming operations, including row crop farming, hay production, livestock management, and tillage. Compared to other models in the Ford New Holland lineup, the 8530 offered a sweet spot of power and maneuverability, making it a highly desirable tractor for medium to large-sized farms.

8530 Specifications

EngineFord 7.5L (456 ci) 160 HP Diesel
PTO HP140 HP @ 540/1000 RPM
TransmissionPartial Power Shift 16F/8R
Hydraulics28 GPM, 2-3 remotes
3-Point HitchCategory II, 8000 lbs
Fuel Capacity57 gallons
Weight14,150 lbs
Years Produced1990-1997

8530 Maintenance Tips

  • Engine Oil & Filter: Change the engine oil and filter every 250-300 hours using a high-quality diesel engine oil and the correct filter to ensure optimal engine lubrication and longevity.
  • Hydraulic System Maintenance: Regularly check the hydraulic oil level and filter condition. Replace the hydraulic filter every 500 hours or as recommended in the operator's manual to prevent contamination and maintain hydraulic performance.
  • Fuel System Care: Use clean, high-quality diesel fuel and regularly inspect the fuel filters. Drain any water or sediment from the fuel tank periodically to prevent fuel system issues. Consider using a fuel additive during cold weather to prevent gelling.
  • Seasonal Storage: Before storing the tractor for an extended period, stabilize the fuel, change the engine oil and filter, lubricate all grease fittings, and disconnect the battery to prevent corrosion and maintain the tractor's condition.

8530 History & Background

The Ford New Holland 8530 was launched in 1990 as a key part of the Ford New Holland tractor lineup, offering a significant upgrade in power and technology compared to previous generations. While not undergoing any major redesigns during its production run, it solidified Ford New Holland's position as a leading manufacturer of agricultural tractors. It is remembered as a reliable and powerful workhorse in the agricultural sector.

Frequently Asked Questions

Which intake valve is compatible with the Ford New Holland 8530?

The D8NN6507AB - VALVE, INTAKE is a direct fit for the Ford New Holland 8530 engine.

What PTO disc is recommended for the Ford New Holland 8530?

For the Ford New Holland 8530, the D8NNP743JA - Disc, Dual Power/ PTO is a suitable replacement part.

Which power steering filter is used on the Ford New Holland 8530?

The Ford New Holland 8530 uses the EDPN3K758A - Filter, Power Steering for optimal performance of its power steering system.

What are some common replacement parts for the Ford New Holland 8530?

For routine maintenance and common replacements, consider parts such as the NDA7580B - Bearing, Release (sealed), 81806277 - Seal, Injector, WL1116 - Sealed Beam, LED, Flood, 4 1/2" Diameter, C5NE9448A - Gasket, Exhaust Manifold, and the D0NN11000A starter motor.

Showing 1-24 of 439 products
VPD8500 - Fuel Injector Seal Kit

VPD8500 - Fuel Injector Seal Kit

SKU: VPD8500

$3.63

272 in stock

SD753 - Cylinder (Semi-Finished) Liner

SD753 - Cylinder (Semi-Finished) Liner

SKU: SD753

$42.11

28 in stock

RK165-20 - Piston with Rings (.020")

RK165-20 - Piston with Rings (.020")

SKU: RK165-20

$228.76

1 in stock

RK159 - Piston with Rings (Std)

RK159 - Piston with Rings (Std)

SKU: RK159

$125.99

7 in stock

ZP0750137050 - Tie Rod Assembly (RH)

ZP0750137050 - Tie Rod Assembly (RH)

SKU: ZP0750137050

$315.44

6 in stock

ZP0750137049 - Tie Rod Assembly (LH)
Out of Stock

ZP0750137049 - Tie Rod Assembly (LH)

SKU: ZP0750137049

$296.90

Out of stock

ZP0750125010 - Ball Joint

ZP0750125010 - Ball Joint

SKU: ZP0750125010

$91.36

303 in stock

ZP0501205462 - Tie Rod (RH)

ZP0501205462 - Tie Rod (RH)

SKU: ZP0501205462

$246.19

6 in stock

ZP0501205461 - Tie Rod (LH)

ZP0501205461 - Tie Rod (LH)

SKU: ZP0501205461

$203.00

6 in stock

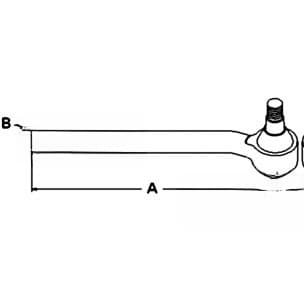

ZP0501205396 - Tie Rod (LH)

ZP0501205396 - Tie Rod (LH)

SKU: ZP0501205396

$315.15

29 in stock

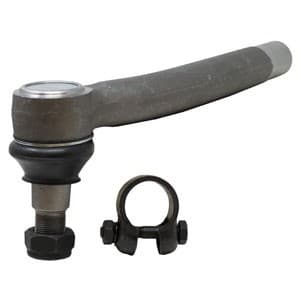

ZP0501205395 - Tie Rod (RH)

ZP0501205395 - Tie Rod (RH)

SKU: ZP0501205395

$307.94

53 in stock

ZP0501205394 - Ball Joint

ZP0501205394 - Ball Joint

SKU: ZP0501205394

$310.42

55 in stock

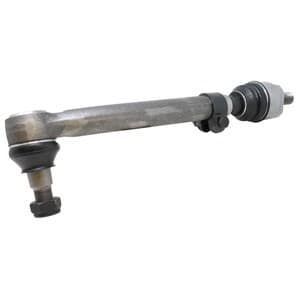

ZP0501205310 - Tie Rod Assembly (RH)

ZP0501205310 - Tie Rod Assembly (RH)

SKU: ZP0501205310

$356.11

12 in stock

ZP0501205309 - Tie Rod Assembly (LH)

ZP0501205309 - Tie Rod Assembly (LH)

SKU: ZP0501205309

$369.06

15 in stock

E2NN3289BA - Short Tie Rod

E2NN3289BA - Short Tie Rod

SKU: E2NN3289BA

$89.57

16 in stock

E2NN3280BA - Long Tie Rod

E2NN3280BA - Long Tie Rod

SKU: E2NN3280BA

$178.75

31 in stock

E2NN3280AA - Long Tie Rod

E2NN3280AA - Long Tie Rod

SKU: E2NN3280AA

$145.90

26 in stock

E1NN3289AA - Short Tie Rod

E1NN3289AA - Short Tie Rod

SKU: E1NN3289AA

$41.68

49 in stock

E1NN3280AA - Long Tie Rod

E1NN3280AA - Long Tie Rod

SKU: E1NN3280AA

$79.44

23 in stock

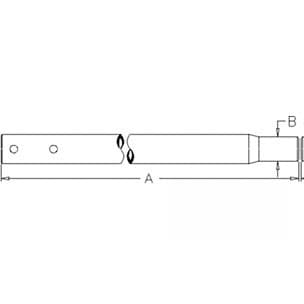

D8NN3B624BA - Tie Rod Tube

D8NN3B624BA - Tie Rod Tube

SKU: D8NN3B624BA

$235.71

4 in stock

D8NN3B539AB - Power Steering End

D8NN3B539AB - Power Steering End

SKU: D8NN3B539AB

$75.71

54 in stock

D8NN3A302AA - Power Steering End

D8NN3A302AA - Power Steering End

SKU: D8NN3A302AA

$87.88

39 in stock

D8NN3289DB - Short Tie Rod

D8NN3289DB - Short Tie Rod

SKU: D8NN3289DB

$79.15

5 in stock

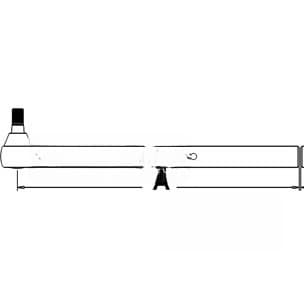

D8NN3280FA - Long Tie Rod

D8NN3280FA - Long Tie Rod

SKU: D8NN3280FA

$169.18

22 in stock
