Ford New Holland 3930 Tractor Parts
Ford New Holland 3930 Tractor parts in stock. Quality OEM and aftermarket replacement parts with fast shipping and competitive prices.
The Ford New Holland 3930, produced from 1983 to 1999, was a popular utility tractor known for its reliability and versatility. Powered by a robust diesel engine producing around 46 horsepower, and boasting approximately 40 PTO horsepower, the 3930 provided ample power for various farming tasks. Its simple design and dependable performance made it a favorite among farmers for everything from loader work to haying.
About the 3930
The Ford New Holland 3930 was introduced in 1983 as part of the updated Ford Series 30 tractor line and continued production until 1999. It replaced earlier Ford models with improved features and styling. The 3930 is typically powered by a Shibaura 2.9L 3-cylinder diesel engine, producing approximately 46 engine horsepower. A gasoline version was also available but is less common. The tractor features a gear-type transmission with various speed options, typically an 8-speed forward and 2-speed reverse, providing flexibility for different field conditions. PTO horsepower is around 40, available with a standard 540 RPM rear PTO. The hydraulic system delivers around 8.5 GPM, powering implements and loader attachments. A Category I 3-point hitch is standard, with a lift capacity around 2500 lbs. The 3930 was widely used in row crop operations, hay production, livestock management, and general tillage. Compared to smaller models like the 1920, the 3930 offers more power and hydraulic capacity, while models like the 5610 provide even greater horsepower and features. It was a sweet spot for many farms needing a powerful and versatile utility tractor.
3930 Specifications
| Engine | Shibaura 2.9L 46 HP Diesel |
|---|---|
| PTO HP | 40 HP @ 540 RPM |
| Transmission | Gear 8F/2R |
| Hydraulics | 8.5 GPM, 1 remotes |
| 3-Point Hitch | Category I, 2500 lbs |
| Fuel Capacity | 16 gallons |
| Weight | 4150 lbs |
| Years Produced | 1983-1999 |
3930 Maintenance Tips
- Check and change the engine oil and filter every 250 hours of operation using a high-quality diesel engine oil and appropriate filter.
- Inspect and maintain the hydraulic system regularly, checking fluid levels and replacing filters according to the manufacturer's recommendations to ensure optimal performance and prevent damage.
- Keep the fuel system clean by using clean fuel and changing the fuel filter regularly. Consider using a fuel additive, especially during seasonal storage, to prevent fuel degradation and injector clogging.
- Before storing the tractor for the off-season, drain the fuel tank or add a fuel stabilizer, grease all fittings, and protect tires from direct sunlight to prolong their lifespan.
3930 History & Background
The Ford New Holland 3930 was released in 1983 as a successor to earlier Ford tractor models, providing updated styling and improvements in engine and hydraulic performance. Throughout its production run, the 3930 saw minor cosmetic updates but retained its core design, solidifying its place as a dependable and versatile workhorse in the agricultural landscape.
Frequently Asked Questions
Which intake valve fits the Ford New Holland 3930?
The D8NN6507AB - VALVE, INTAKE is suitable for the Ford New Holland 3930.
Which PTO housing gasket is needed for the Ford New Holland 3930?
For the PTO housing on the Ford New Holland 3930, consider the C5NN747A - Gasket, PTO Housing.
What fuel filter is recommended for the Ford New Holland 3930?
The 83937061 - Filter, Fuel is a suitable replacement for the Ford New Holland 3930.
What are common replacement parts for the Ford New Holland 3930?
Common replacement parts include the E5NN9C331EA - Cable, Fuel Stop/ Shutoff, EDPN3K758A - Filter, Power Steering, NDA7580B - Bearing, Release (sealed), 81815739 - Nut, Wheel (1/2-20), E9NN8255AA - Gasket; Thermostat, and C5NN557B - Ball, Replacement, Cat II.

VPD8500 - Fuel Injector Seal Kit
SKU: VPD8500
272 in stock

SD753 - Cylinder (Semi-Finished) Liner
SKU: SD753
28 in stock

RK157-30 - Piston with Rings (.030")
SKU: RK157-30
24 in stock

RK157-20 - Piston with Rings (.020")
SKU: RK157-20
23 in stock

RK157 - Piston with Rings (Std)
SKU: RK157
28 in stock

ZP0750125014 - Ball Joint
SKU: ZP0750125014
71 in stock

ZP0750117062 - Cup and Cone Bearing
SKU: ZP0750117062
124 in stock

WBKFI01 - Wheel Bearing Kit
SKU: WBKFI01
147 in stock

E7NN3N981AA - Cylinder End (LH)
SKU: E7NN3N981AA
63 in stock

E7NN3B539AB - Cylinder End (RH)
SKU: E7NN3B539AB
8 in stock

E7NN3289DA - Tie Rod
SKU: E7NN3289DA
199 in stock

E7NN3278AA - Tie Rod
SKU: E7NN3278AA
62 in stock

E1NN3A300AA - Front Drag Link End
SKU: E1NN3A300AA
14 in stock

E1NN3307AA - Drag Link w/ End Tube
SKU: E1NN3307AA
55 in stock

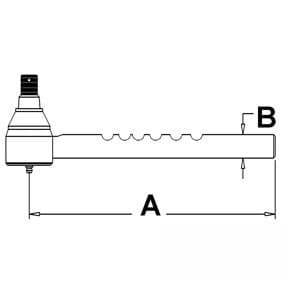

D0NN3A300A - Front Drag Link End
SKU: D0NN3A300A
59 in stock

CAR49006 - Ball Joint (LH)
SKU: CAR49006
13 in stock

CAR49001 - Ball Joint (RH)
SKU: CAR49001
71 in stock

CAR107634 - Tie Rod
SKU: CAR107634
14 in stock

CAR107633 - Tie Rod
SKU: CAR107633
9 in stock

C7NN3307A - Rear Drag Link End
SKU: C7NN3307A
13 in stock

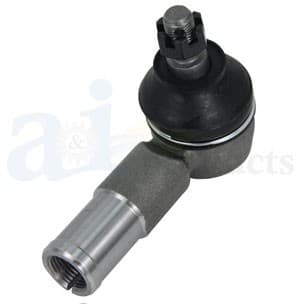

C5NN3289C - Short (RH) Outer Tie Rod
SKU: C5NN3289C
45 in stock

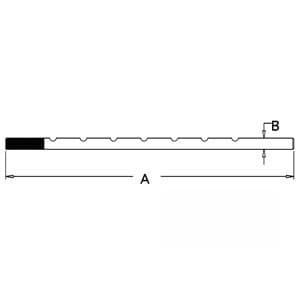

C5NN3282E - Tie Rod End
SKU: C5NN3282E
5 in stock

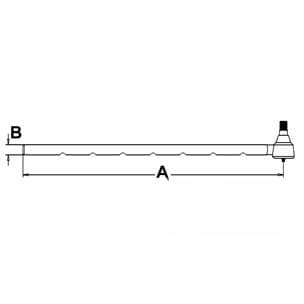

C5NN3278A - Long (LH) Outer Tie Rod
SKU: C5NN3278A
39 in stock

9968017 - Zinc 8.8 M24X1.5 MFD Steering Cylinder RH Thread Jam Nut
SKU: 9968017
31 in stock
