Case IH 9010 Combine Parts
Replacement parts for the Case IH 9010 Combine. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The Case IH 9010 combine, manufactured from 1998-2003, offered farmers a powerful and reliable harvesting solution. Delivering around 240 engine horsepower and compatible with header widths up to 30 feet, the 9010 became a popular choice due to its efficient rotary separator. Farmers appreciated its robust design and its ability to handle high-volume grain harvesting across various crops.
About the 9010
The Case IH 9010 combine harvester was a key model in the Case IH lineup from 1998 to 2003. Powering this machine was typically an 8.3L Cummins diesel engine, providing approximately 240 horsepower. The 9010 utilized an Axial-Flow rotary separator system, known for its ability to gently thresh grain and minimize grain damage. This system featured a single rotor design with adjustable concaves to optimize threshing performance for different crop types. The grain tank offered a capacity of around 250 bushels, and unloading was accomplished via a high-speed auger capable of unloading at a rate of approximately 2.3 bushels per second or 140 bushels per minute. Operators could equip the 9010 with a range of header widths, commonly from 20 to 30 feet, depending on the crop and field conditions. Chopper and spreader options were also available to manage crop residue effectively. The cab featured improved ergonomics and controls, making long days in the field more comfortable for the operator. The Case IH 9010 was recognized for its versatility in harvesting various crops, including wheat, soybeans, and corn, effectively.
9010 Specifications
| Engine | Cummins 8.3L 240 HP Diesel |
|---|---|
| Separator Type | Axial-Flow Rotary - Single Rotor |
| Grain Tank | 250 bushels |
| Unloading Rate | 140 bu/min |
| Header Widths | 20-30 ft |
| Fuel Capacity | 150 gallons |
| Weight | 23,500 lbs |
| Years Produced | 1998-2003 |
9010 Maintenance Tips
- Concave Adjustment: Regularly inspect and adjust concaves based on the crop being harvested to optimize threshing performance and minimize grain damage. Consult your operator's manual for recommended settings.
- Belt and Chain Tension: Check and adjust belt and chain tension throughout the harvesting season to prevent slippage, wear, and potential breakdowns. Proper tension ensures efficient power transfer and component longevity.
- Sieve and Chaffer Cleaning: Regularly clean the sieves and chaffer to remove debris and ensure proper grain cleaning. Blockages can reduce cleaning efficiency and increase grain loss.
- Bearing Greasing: Follow the manufacturer's recommended greasing schedule for all bearings to prevent premature wear and failure. Proper lubrication is crucial for extending the life of moving parts.
9010 History & Background
The Case IH 9010 was introduced in 1998 as a continuation of the Axial-Flow combine series, building upon the success of previous models. It represented an evolution in harvesting technology, offering increased capacity and efficiency compared to earlier combines. This model helped solidify Case IH's reputation for producing reliable and productive harvesting equipment.
Frequently Asked Questions
Which A/C Compressor fits the Case IH 9010 combine?
For the Case IH 9010 combine, the recommended A/C compressor is 86993463 - Compressor, A/C w/ Clutch.
What work lamp options are available for the Case IH 9010 combine?
The Case IH 9010 combine can use an LED work lamp such as the WL9560 - Work Lamp, LED, Flood, Oval, which provides bright, efficient illumination for night operation.
Which straw chopper blade kit is suitable for the Case IH 9010 combine?
A suitable straw chopper blade kit for the Case IH 9010 combine is the 47796266 - Kit, Blade, Straw Chopper, Set of 6, designed for efficient residue management.
What are some common replacement parts for the Case IH 9010 combine?
Maintaining the Case IH 9010 combine often requires replacing wear-prone components such as the 87368807 - Rasp Bar, 87748386 - Concave Cover Plate, and 47796266 - Kit, Blade, Straw Chopper, Set of 6. Other frequently replaced parts include the 87330286 - Sensor, Feeder and Lateral Tilt, 87586569 - Housing; Clean Grain Elevator. Ext Wear Stainless Steel, and the 47647112 - Cylinder, Swing, Unloading Auger.

87534058 - Steering Valve Seal Kit
SKU: 87534058
94 in stock

WL9560 - Oval Flood LED Work Lamp
SKU: WL9560
102 in stock

WL1240 - Oval Flood LED Work Lamp
SKU: WL1240
196 in stock

87000227 - A/C High Pressure Switch
SKU: 87000227
2 in stock

86993463 - A/C w/ Clutch Compressor
SKU: 86993463
48 in stock

60-5880T1 - Expan.Valve
SKU: 60-5880T1
79 in stock

295006A1 - Reciever / Drier
SKU: 295006A1
1162 in stock

1990756C2 - Expan.Valve
SKU: 1990756C2
79 in stock

47796266 - Set of 6 Straw Chopper Blade Kit
SKU: 47796266
263 in stock

87748386 - Concave Cover Plate
SKU: 87748386
26 in stock

87368807 - Rasp Bar
SKU: 87368807
166 in stock

87586569 - Clean Grain Elevator. Ext Wear Stainless Steel Housing
SKU: 87586569
14 in stock

86623221 - Seal
SKU: 86623221
23 in stock

47647112 - Unloading Auger Swing Cylinder
SKU: 47647112
18 in stock

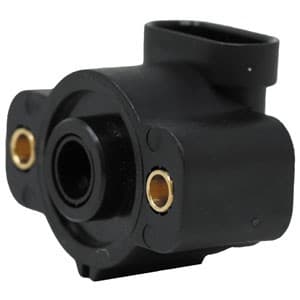

87330286 - Feeder and Lateral Tilt Sensor
SKU: 87330286
63 in stock

183038A1 - Solenoid Switch
SKU: 183038A1
87 in stock
