Case IH 1060 Combine Parts
Shop Case IH 1060 Combine parts. From filters and fluids to blades and belts, we carry the replacements you need to keep running.
The Case IH 1060 combine, produced from the late 1970s to early 1980s, was a popular choice for farmers seeking a reliable and efficient harvesting solution. Equipped with a robust engine delivering around 105 HP, it offered header widths up to 15 feet. Its conventional threshing system provided effective grain separation, making it a versatile machine for various crops.
About the 1060
The Case IH 1060 combine harvester was introduced in the late 1970s as part of Case IH's effort to provide farmers with dependable harvesting equipment. Production continued into the early 1980s. The combine was typically powered by a Case or IH diesel engine, producing approximately 105 horsepower. These engines had a displacement around 301 cubic inches. The 1060 utilized a conventional threshing system, featuring a cylinder and concave to separate the grain from the crop. Grain tank capacity was around 110 bushels, and the unloading auger could empty the tank at a rate of about 30 bushels per minute. Header widths ranged from 13 to 15 feet, allowing for efficient harvesting in various field conditions. Chopper and spreader options were available for residue management. The cab offered basic operator comfort and controls. The Case IH 1060 excelled at harvesting crops like wheat, soybeans, and corn in smaller to medium sized fields.
1060 Specifications
| Engine | Case/IH 105 HP 301 CID Diesel |
|---|---|
| Separator Type | Conventional - 40 inch cylinder width |
| Grain Tank | 110 bushels |
| Unloading Rate | 30 bu/min |
| Header Widths | 13-15 ft |
| Fuel Capacity | 40 gallons |
| Weight | 11,500 lbs |
| Years Produced | Late 1970s - Early 1980s |
1060 Maintenance Tips
- Concave Adjustment: Regularly inspect and adjust the concave clearance to ensure optimal threshing and minimize grain loss. Refer to the operator's manual for recommended settings based on crop type.
- Belt and Chain Tension: Check and maintain proper tension on all belts and chains to prevent slippage, wear, and potential breakdowns. Replace worn belts and chains promptly.
- Sieve and Chaffer Cleaning: Clean the sieves and chaffers regularly to remove debris and ensure efficient grain cleaning. Clogged sieves can lead to grain loss and reduced harvesting efficiency.
- Bearing Greasing: Grease all bearings according to the manufacturer's recommendations to prevent premature wear and failure. Pay close attention to bearings on rotating components, such as the cylinder, straw walkers, and augers.
1060 History & Background
The Case IH 1060 was introduced in the late 1970s as a dependable conventional combine option. While it didn't undergo any major redesigns during its production run, it became known for its reliability and ease of maintenance. The 1060 played a significant role in providing farmers with an affordable and practical harvesting solution.
Frequently Asked Questions
What in-frame engine overhaul kit is available for the Case IH 1060 combine?
For a comprehensive engine overhaul on the Case IH 1060 combine, the IK108 - In Frame Engine Overhaul Kit is recommended.
Which engine oil filter fits the Case IH 1060 combine?
The A146696 - Filter, Engine Oil provides reliable filtration and is suitable for the Case IH 1060 combine's engine.
What primary air filter is recommended for the Case IH 1060 combine?
The AF409K - Filter, Air, Primary (QTY 1) is a suitable replacement for the primary air filtration system on the Case IH 1060 combine.
What are common replacement parts for the Case IH 1060 combine?
Common replacement items for the Case IH 1060 combine include bearings such as the 2389930 - Bearing, the 663887R91 - Pulley Assy, Unloader Belt Tightener/ Fan Jackshaft Drive Idler, crankshaft seals like the A62050 - Seal, Rear Crankshaft, fuel filters such as the FF200J - Filter, Fuel, Spin-On (QTY 1), and engine gasket sets, including the A189529 - Gasket Set, Upper.

SK438 - Piston Liner Kit
SKU: SK438
11 in stock

IK108 - In Frame Engine Overhaul Kit
SKU: IK108
1 in stock

663887R91 - Unloader Belt Tightener/ Fan Jackshaft Drive Idler Pulley Assy
SKU: 663887R91
17 in stock

619731C1 - Brake Actuator (2/pk) Spring
SKU: 619731C1
441 in stock

PR157 - Piston Rings
SKU: PR157
2 in stock

A62572 - set of 2) Thrust (.156" Washer Set
SKU: A62572
Out of stock

A62050 - Rear Crankshaft Seal
SKU: A62050
38 in stock

A43176 - Connecting Rod (.020") Bearing
SKU: A43176
4 in stock

A43175 - Connecting Rod (.010") Bearing
SKU: A43175
21 in stock

A43173 - Connecting Rod (Std) Bearing
SKU: A43173
14 in stock

A43024 - Intake Valve
SKU: A43024
30 in stock

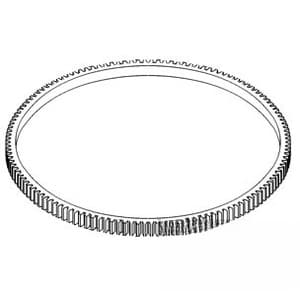

A27920 - Flywheel Ring Gear
SKU: A27920
41 in stock

A26294 - Intake Valve Guide
SKU: A26294
6 in stock

A21076 - Valve Spring
SKU: A21076
2 in stock

A21069 - Connecting Rod Bushing
SKU: A21069
18 in stock

A189529 - Upper Gasket Set
SKU: A189529
63 in stock

A189516 - Lower with Seals Gasket Set
SKU: A189516
3 in stock

A157044 - Front Crankshaft Seal
SKU: A157044
21 in stock

A11803 - Exhaust Valve Guide
SKU: A11803
2 in stock

3A203FS - Overhaul with Seals Gasket Set
SKU: 3A203FS
2 in stock

34A39-STD - set of 5) Main (Std Bearing Set
SKU: 34A39-STD
Out of stock

34A39-010 - set of 5) Main (.010" Bearing Set
SKU: 34A39-010
Out of stock

1118991 - Voltage Regulator (12 Volt)
SKU: 1118991
21 in stock

LF793J - Cartridge (QTY 1) Lube Filter
SKU: LF793J
Out of stock
