Case IH 1460 Combine Parts
Find parts for your Case IH 1460 Combine. We stock OEM and quality aftermarket replacements ready to ship.
The Case IH 1460 combine, manufactured from 1979 to 1985, was a popular choice for farmers seeking a reliable and durable machine. Powered by a 155 HP engine, it offered header widths ranging from 13 to 30 feet, making it versatile for various field sizes. Its conventional separator system delivered efficient threshing and separation, contributing to its widespread adoption.
About the 1460
The Case IH 1460, produced between 1979 and 1985, built upon the success of previous IH models, offering improved performance and reliability. It was equipped with an International Harvester DT-466 inline 6-cylinder diesel engine, producing approximately 155 horsepower. The 1460 utilized a conventional threshing system featuring a 43-inch wide cylinder. Grain tank capacity was around 150 bushels, and it unloaded at a rate of approximately 45 bushels per minute. Header widths available ranged from 13 feet to 30 feet for grain platforms and up to 6-row corn heads. Options included a straw chopper or spreader for residue management. The cab offered basic controls and instrumentation for operator comfort. The 1460 excelled at harvesting a variety of crops including wheat, soybeans, and corn, thanks to its adjustable concave settings and variable-speed drive system.
1460 Specifications
| Engine | International Harvester DT-466 155 HP Diesel |
|---|---|
| Separator Type | Conventional - 43-inch Cylinder Width |
| Grain Tank | 150 bushels |
| Unloading Rate | 45 bu/min |
| Header Widths | 13-30 ft |
| Fuel Capacity | 85 gallons |
| Weight | Approximately 17,000 lbs |
| Years Produced | 1979-1985 |
1460 Maintenance Tips
- Concave Adjustment: Regularly inspect and adjust the concave clearance based on the crop being harvested to optimize threshing efficiency and minimize grain damage.
- Belt and Chain Tension: Check belt and chain tension regularly, especially before and during harvest. Loose belts and chains can lead to reduced performance and premature wear.
- Sieve and Chaffer Cleaning: Keep the sieves and chaffer clean of debris to ensure proper separation and minimize grain loss. Clean them daily or more frequently in dusty conditions.
- Bearing Greasing: Follow the manufacturer's greasing schedule for all bearings to prevent premature failure and ensure smooth operation.
1460 History & Background
The Case IH 1460 was introduced in 1979 as part of the Axial-Flow series, replacing older International Harvester models. While it didn't feature the rotary threshing system of the larger Axial-Flow combines, it represented a significant upgrade in performance and reliability for farmers using conventional combines. It remains a popular choice for smaller farms or those seeking a dependable and cost-effective harvesting solution.
Frequently Asked Questions
Which oil filter is recommended for the Case IH 1460?
For routine maintenance on your Case IH 1460, we recommend the LF3316 - Filter, Lube, Full-Flow Spin-On. This filter is sold in a quantity of 12.
What bearing is used in the grain tank delivery auger of the 1460?
The grain tank delivery auger on the 1460 combine uses the 204807C91 - Bearing, Grain Tank / Delivery Auger for smooth operation and reliable performance.
What rotor bar fits the Case IH 1460 separator?
The separator on the Case IH 1460 is compatible with the 1309336C2 - Rotor Bar, w/o Spike, essential for efficient threshing.
What are common wear parts for the Case IH 1460 combine?
Key wear parts for the Case IH 1460 combine include CL60H - Link, Chain (Drives), the 195293C91 - Bearing, Auger Bed & Straw Spreader, 186597C1 - Bushing, Chaffer Drive Hanger Arm, 627555R91 - Bushing, Hanger Arm, Shoe Sieve, B94626 - Block, Bed Auger Mounting; Wood, and 87019792 - Washer, Knife Bolt.

VTK241 - Valve Train Kit
SKU: VTK241
7 in stock

SW462 - Cylinder Liner
SKU: SW462
15 in stock

87337229 - Steering Cylinder Assy
SKU: 87337229
5 in stock

69957H - Wheel (1/2-20) Nut
SKU: 69957H
2070 in stock

548247R91 - w/o Power Guide Axle Steering Hydraulic Cylinder
SKU: 548247R91
8 in stock

359774A1 - Tie Rod (LH)
SKU: 359774A1
7 in stock

316945A1 - Steering Cyl Support
SKU: 316945A1
8 in stock

193912C3 - Steering (RH) Arm
SKU: 193912C3
41 in stock

193911C4 - Steering (LH) Arm
SKU: 193911C4
41 in stock

186796C1 - Cylinder End
SKU: 186796C1
20 in stock

186680C1 - Spindle Bushing
SKU: 186680C1
14 in stock

186140C91 - Steering Cylinder End
SKU: 186140C91
20 in stock

186052C1 - Steering Knuckle King Pin
SKU: 186052C1
4 in stock

182795C1 - Steering Axle Support Bushing
SKU: 182795C1
34 in stock

182794C1 - Pivot; Rear Axle Bushing
SKU: 182794C1
169 in stock

177751C1 - Axle Pivot Bushing
SKU: 177751C1
9 in stock

169293C11 - Steering Axle Hub
SKU: 169293C11
28 in stock

168385C2 - Axle Pivot Washer
SKU: 168385C2
103 in stock

1315374C2 - Spindle (RH/LH)
SKU: 1315374C2
19 in stock

1302687C1 - Tie Rod (RH)
SKU: 1302687C1
7 in stock

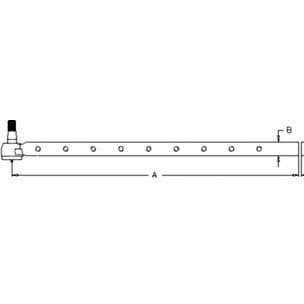

1302686C1 - Tie Rod (LH)
SKU: 1302686C1
5 in stock

663557R1 - Bearing (LM501349)
SKU: 663557R1
258 in stock

530700R1 - 2nd & 3rd Sliding Gear
SKU: 530700R1
2 in stock

530699R1 - Differential Spool Gear
SKU: 530699R1
9 in stock
