Case IH 6130 Combine Parts
Replacement parts for the Case IH 6130 Combine. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The Case IH 6130 combine, produced from 2011 to 2015, delivered a potent combination of power and efficiency for grain harvesting. With a robust 320 HP engine and header widths ranging from 20 to 30 feet, the 6130's single rotor design offered excellent threshing and separation. This model became a favorite among farmers for its reliable performance and adaptability to various crops.
About the 6130
The Case IH 6130 combine harvester was introduced as part of the Axial-Flow series, manufactured from 2011 to 2015. Powering the 6130 is an 8.7L Case IH FPT engine, delivering a peak power of 320 horsepower. This engine provides ample power for handling demanding harvesting conditions. The 6130 utilizes a single axial-flow rotor threshing and separating system, known for its gentle grain handling and high capacity. The grain tank boasts a capacity of approximately 300 bushels, allowing for extended harvesting runs. The unloading auger provides a discharge rate of 3.2 bushels per second (approximately 192 bu/min), enabling quick unloading. Available header widths ranged from 20 to 30 feet, accommodating varying field sizes and crop conditions. The 6130 offered optional chopper and spreader configurations for residue management. The cab is designed for operator comfort and efficiency, featuring intuitive controls and good visibility. The Case IH 6130 excels in harvesting a variety of crops, including wheat, corn, soybeans, and other small grains, providing versatility for diverse farming operations.
6130 Specifications
| Engine | Case IH FPT 320 HP 8.7L Diesel |
|---|---|
| Separator Type | Single Axial-Flow Rotor - 30 inch Rotor |
| Grain Tank | 300 bushels |
| Unloading Rate | 192 bu/min |
| Header Widths | 20-30 ft |
| Fuel Capacity | 200 gallons |
| Weight | 28,500 lbs |
| Years Produced | 2011-2015 |
6130 Maintenance Tips
- Concave Adjustment: Regularly inspect and adjust concaves according to the crop being harvested to optimize threshing and minimize grain loss.
- Belt and Chain Tension: Check and maintain proper tension on all belts and chains, as loose or overtightened components can lead to premature wear and failure.
- Sieve and Chaffer Cleaning: Regularly clean the sieves and chaffer to remove debris and ensure proper air flow, maximizing grain cleaning efficiency and preventing plugging.
- Bearing Greasing: Grease all bearings according to the manufacturer's recommendations to ensure smooth operation and prevent premature bearing failure. Pay close attention to the rotor and header bearings.
6130 History & Background
The Case IH 6130 was introduced as part of the Axial-Flow series combine harvesters, known for their efficient single rotor design. It offered a balance of power and capacity suitable for mid-sized farms and contributed to the evolution of harvesting technology. Its popularity helped solidify Case IH's position in the combine market.
Frequently Asked Questions
Which work lamp is recommended for the Case IH 6130?
For enhanced visibility during operation, the WL9560 - Work Lamp, LED, Flood, Oval is a suitable replacement for the 6130.
What is the recommended straw chopper drive belt for the 6130?
The 87330903 - Belt, Straw Chopper Drive is designed for optimal performance in the 6130's straw chopper system.
Which rotor separator bar fits the Case IH 6130?
The 1318976C2 - Rotor Seperator Bar is a key component for the 6130's axial-flow rotor system, ensuring efficient grain separation.
What are common replacement parts needed for the 6130?
For routine maintenance and wear part replacement on the Case IH 6130, consider checking the 386188A1 - Concave, Front (Corn & Soybean), 1968743C2 - Rasp Bar, w/o Spike, Chrome, and 87476486 - Belt, Main, RH Drive w/ Chopper / Elevator Drive. Other frequently replaced items include the 84163936 - Chain, Drive, Clean Grain, 87306803 - Bearing, Seperator Idler Pulley, and the 87756536 - Auger, Vertical Unloading; Ext. Wear to ensure efficient operation.

87674051 - Steering Cylinder
SKU: 87674051
24 in stock

248600A1 - Axle Drive Shaft Coupling
SKU: 248600A1
42 in stock

87697371 - Outer Tie Rod
SKU: 87697371
39 in stock

87629602 - Feeder Jackshaft Drive Belt
SKU: 87629602
Out of stock

87629601 - Feeder Drive w/ Rock Trap Belt
SKU: 87629601
11 in stock

87615553 - Rotor Drive Belt
SKU: 87615553
3 in stock

87549557 - Unloading Drive Belt
SKU: 87549557
9 in stock

87476487 - RH Elevator Drive / Main Belt
SKU: 87476487
Out of stock

87476486 - RH Drive w/ Chopper / Elevator Drive Main Belt
SKU: 87476486
21 in stock

87332161 - Header Drive Belt
SKU: 87332161
6 in stock

87330903 - Straw Chopper Drive Belt
SKU: 87330903
9 in stock

84548651 - Unloader Jackshaft Belt
SKU: 84548651
3 in stock

84406044 - PTO / Separator Drive sub to 84586129 Belt
SKU: 84406044
4 in stock

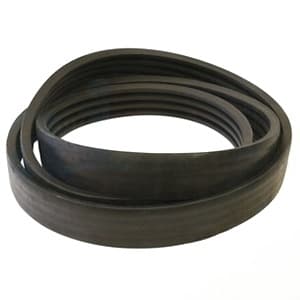

84365262 - Header Drive w/o Rock Trap Belt
SKU: 84365262
15 in stock

84292913 - AC Compressor Belt
SKU: 84292913
35 in stock

84163222 - Spreader Drive Belt
SKU: 84163222
23 in stock

301146A1 - Cleaning Fan Drive Belt
SKU: 301146A1
11 in stock

87650438 - Bearing (Import)
SKU: 87650438
4 in stock

87605592 - Lower Grain Tank Auger / Tailings Processor Bearing
SKU: 87605592
64 in stock

WL9560 - Oval Flood LED Work Lamp
SKU: WL9560
102 in stock

WL1240 - Oval Flood LED Work Lamp
SKU: WL1240
196 in stock

87350494 - Manual Mirror Head
SKU: 87350494
254 in stock

87000227 - A/C High Pressure Switch
SKU: 87000227
2 in stock

86993463 - A/C w/ Clutch Compressor
SKU: 86993463
48 in stock
