Case IH 8120 Combine Parts

Find parts for your Case IH 8120 Combine. We stock OEM and quality aftermarket replacements ready to ship.

The Case IH 8120 combine, produced from 2009-2012, delivers robust performance with its engine pushing around 350 horsepower. Known for its reliable rotary separator and efficient grain handling, the 8120 was a popular choice for farmers harvesting a variety of crops. It accommodates header widths up to 40 feet, making it well-suited for large acreage farms.

About the 8120

The Case IH 8120 combine was a key part of the Axial-Flow series, manufactured from 2009 to 2012. Powering this machine is an Iveco FPT 9.0L engine, delivering approximately 350 horsepower with a peak boosted power nearing 400 HP. The heart of the 8120 is its single Axial-Flow rotary system, designed for efficient threshing and separation. The grain tank boasts a capacity of 315 bushels, and it unloads at a rate of 3.2 bushels per second (approximately 192 bu/min). Available header widths ranged up to 40 feet, catering to different field sizes and crop types. Chopper and spreader options helped manage residue effectively. The cab provided operators with enhanced comfort and visibility and integrated yield monitoring systems. The 8120 excels in harvesting corn, soybeans, wheat, and other small grains due to its efficient threshing and cleaning capabilities.

8120 Specifications

EngineIveco FPT 9.0L 350 HP Diesel
Separator TypeSingle Axial-Flow Rotary - 30 inch Rotor
Grain Tank315 bushels
Unloading Rate192 bu/min
Header WidthsUp to 40 ft
Fuel Capacity250 gallons
Weight34,000 lbs
Years Produced2009-2012

8120 Maintenance Tips

  • Concave Adjustment: Regularly check and adjust concave clearance based on the crop being harvested to optimize threshing performance and minimize grain loss.
  • Belt and Chain Tension: Inspect belt and chain tension frequently, especially during the initial hours of operation, and adjust as needed to prevent slippage and premature wear.
  • Sieve and Chaffer Cleaning: Clean the sieves and chaffer regularly to remove debris and ensure proper airflow, which is essential for efficient grain separation.
  • Bearing Greasing: Lubricate all grease points, including bearings, according to the manufacturer's recommendations to prevent premature failure and extend component life.

8120 History & Background

The Case IH 8120 was introduced in 2009 as part of the Axial-Flow series, building upon the success of previous models. It offered advancements in engine power, grain handling capacity, and operator comfort. This model contributed significantly to the evolution of combine harvester technology, emphasizing efficiency and productivity in the field.

Frequently Asked Questions

Which rotor bar fits the Case IH 8120 combine?

The 1309336C2 - Rotor Bar, w/o Spike is an essential component for the efficient separation system of the 8120 combine.

What replacement flange bearing is suitable for the Case IH 8120?

The 86548970 - Bearing, Flange ensures smooth operation in various applications throughout the 8120 combine.

What LED work lamp is compatible with the Case IH 8120?

Improve field visibility with the WL9560 - Work Lamp, LED, Flood, Oval, an LED option designed for robust performance on the 8120 combine.

What are common wear parts for the Case IH 8120 combine?

Frequently replaced wear parts for the 8120 combine include the 1309336C2 - Rotor Bar, w/o Spike, various bearings like the 203KRR2-I - Bearing, Ball; Special Cylindrical, Round Bore, the 51635252 - Kit, Blade, Straw Chopper, Set of 4, connecting links such as the 87283349 - Link, Connecting; A557 Chain, and essential seals like the 128825 - O-Ring. Additionally, the 86981487 - Bolt, Rasp Bar, M12 X 35, 10.9, Full Thread is a common replacement part.

Showing 1-24 of 280 products
VTK209 - Valve Train Kit

VTK209 - Valve Train Kit

SKU: VTK209

$199.88

1 in stock

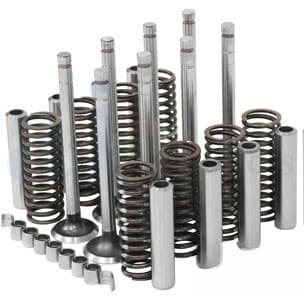

VTK113 - Valve Train Kit

VTK113 - Valve Train Kit

SKU: VTK113

$273.93

10 in stock

SW52 - Cylinder Liner
Out of Stock

SW52 - Cylinder Liner

SKU: SW52

$54.38

Out of stock

SRK713 - Liner Sealing Ring

SRK713 - Liner Sealing Ring

SKU: SRK713

$5.92

51 in stock

SK265 - Piston Liner Kit

SK265 - Piston Liner Kit

SKU: SK265

$138.32

21 in stock

84814042 - Steering Cylinder End
Out of Stock

84814042 - Steering Cylinder End

SKU: 84814042

$82.28

Out of stock

84442906 - Short Threaded Tie Rod

84442906 - Short Threaded Tie Rod

SKU: 84442906

$55.93

135 in stock

41461S-I - Seal

41461S-I - Seal

SKU: 41461S-I

$3.44

185 in stock

169293C11 - Steering Axle Hub

169293C11 - Steering Axle Hub

SKU: 169293C11

$207.71

28 in stock

84440974 - Transmission Half (RH) Drive Shaft
Out of Stock

84440974 - Transmission Half (RH) Drive Shaft

SKU: 84440974

$247.32

Out of stock

84440165 - Transmission Half (RH) Drive Shaft

84440165 - Transmission Half (RH) Drive Shaft

SKU: 84440165

$402.35

1 in stock

84438982 - Splined; Planetary Drive Coupling
Out of Stock

84438982 - Splined; Planetary Drive Coupling

SKU: 84438982

$103.31

Out of stock

84069687 - Transmission Output Shaft

84069687 - Transmission Output Shaft

SKU: 84069687

$240.22

1 in stock

BC108 - Bearing (Import) Collar

BC108 - Bearing (Import) Collar

SKU: BC108

$15.51

90 in stock

167269 - O-Ring

167269 - O-Ring

SKU: 167269

$3.76

9 in stock

128825 - O-Ring

128825 - O-Ring

SKU: 128825

$1.35

2750 in stock

41461S-P - Seal

41461S-P - Seal

SKU: 41461S-P

$14.44

10 in stock

87607871 - Rotary Screen Drive Belt

87607871 - Rotary Screen Drive Belt

SKU: 87607871

$24.29

48 in stock

87526140 - Engine Fan Belt

87526140 - Engine Fan Belt

SKU: 87526140

$20.77

15 in stock

87484708 - Cleaning Fan Drive  sub to 87683178 Belt

87484708 - Cleaning Fan Drive sub to 87683178 Belt

SKU: 87484708

$31.11

30 in stock

87317063 - Shoe Drive Belt
Out of Stock

87317063 - Shoe Drive Belt

SKU: 87317063

$62.46

Out of stock

87011585 - Unloading Auger Drive Belt

87011585 - Unloading Auger Drive Belt

SKU: 87011585

$118.85

1 in stock

86976208 - Straw Chopper Drive (3000 RPM) Belt
Out of Stock

86976208 - Straw Chopper Drive (3000 RPM) Belt

SKU: 86976208

$129.38

Out of stock

86975809 - Bubble Up Belt

86975809 - Bubble Up Belt

SKU: 86975809

$77.26

17 in stock
