Case IH 7250 Combine Parts
Browse Case IH 7250 Combine replacement parts. Everything from routine maintenance items to hard-to-find components.
The Case IH 7250 combine, produced from 2015-2018, delivers reliable performance for grain harvesting. Powered by a Tier 4 Final engine producing up to 480 peak HP, the 7250 was popular for its large grain tank and high unloading rate. Available with header widths up to 45 feet, this rotary combine offered excellent throughput and grain quality in a variety of crops.
About the 7250
The Case IH 7250 combine was a key model in the Axial-Flow series, manufactured from 2015 to 2018. It featured a FPT Industrial Cursor 13 engine, producing a rated 435 HP and peaking at 480 HP with a displacement of 12.9 liters. The 7250 utilizes a single rotor Axial-Flow system known for its gentle grain handling and high capacity. Grain tank capacity is a substantial 350 bushels, and unloading is handled with a high-speed auger capable of unloading at 4.5 bushels per second (270 bu/min). Available header widths ranged from narrow row crop heads to wide platforms exceeding 40 feet. The 7250 came standard with a fine cut chopper and powered rear spreader. The cab featured the AFS Pro 700 monitor and integrated yield monitoring for precision harvesting. This combine excels in harvesting corn, soybeans, wheat, and other small grains, providing efficient separation and minimal grain loss.
7250 Specifications
| Engine | FPT Industrial Cursor 13 435 HP (480 Peak) 12.9L Diesel |
|---|---|
| Separator Type | Single Rotor Axial-Flow - 30 inch rotor diameter |
| Grain Tank | 350 bushels |
| Unloading Rate | 270 bu/min |
| Header Widths | 30-45 ft |
| Fuel Capacity | 250 gallons |
| Weight | 36,000 lbs |
| Years Produced | 2015-2018 |
7250 Maintenance Tips
- Concave Adjustment: Regularly inspect and adjust concaves to maintain proper threshing performance and minimize grain loss. Refer to the operator's manual for specific settings based on crop type.
- Belt and Chain Tension: Check and maintain proper tension on all belts and chains, including feeder, header, and drive belts, to prevent slippage and ensure smooth operation. Replace worn belts and chains promptly.
- Sieve and Chaffer Cleaning: Regularly clean sieves and chaffers to remove debris and ensure proper airflow for effective grain cleaning. Pay particular attention during transitions between different crop types.
- Bearing Greasing: Grease all bearings according to the manufacturer's recommended schedule to prevent premature wear and failure. Use the correct type of grease for each bearing.
7250 History & Background
Introduced in 2015, the Case IH 7250 was a part of the updated 7240/8240 series that replaced the older 7120/8120 series. The 7250 continued the legacy of the Axial-Flow design, providing improved fuel efficiency and grain quality compared to earlier models. This combine helped establish Case IH as a leader in rotary combine technology.
Frequently Asked Questions
Which replacement starter is suitable for the Case IH 7250 combine?
For the Case IH 7250 combine, the TS-6075-N - STARTER is a recommended replacement part.
What work lamp options are available for the Case IH 7250 combine?
An excellent lighting solution for the Case IH 7250 combine is the WL9560 - Work Lamp, LED, Flood, Oval, designed for broad illumination.
Which rotor bar replacement is compatible with the Case IH 7250's Axial-Flow system?
The 1309336C2 - Rotor Bar, w/o Spike is a direct replacement part designed for the Axial-Flow separator system in the Case IH 7250.
What are some essential wear parts for the Case IH 7250 combine?
Key wear parts for maintaining the Case IH 7250 combine include the 1968743C2 - Rasp Bar, w/o Spike, Chrome, the 1318976C2 - Rotor Separator Bar, a 51635252 - Kit, Blade, Straw Chopper, Set of 4, and a 47796266 - Kit, Blade, Straw Chopper, Set of 6.

WL9560 - Oval Flood LED Work Lamp
SKU: WL9560
102 in stock

WL1240 - Oval Flood LED Work Lamp
SKU: WL1240
196 in stock

87000227 - A/C High Pressure Switch
SKU: 87000227
2 in stock

51635252 - Set of 4 Straw Chopper Blade Kit
SKU: 51635252
2 in stock

47796266 - Set of 6 Straw Chopper Blade Kit
SKU: 47796266
263 in stock

47421232 - Chaffer Actuator
SKU: 47421232
33 in stock

1968743C2 - Chrome w/o Spike Rasp Bar
SKU: 1968743C2
20 in stock

1318976C2 - Rotor Seperator Bar
SKU: 1318976C2
17 in stock

1309336C2 - w/o Spike Rotor Bar
SKU: 1309336C2
401 in stock

48024751 - DEF/ADBLUE Tank Cap
SKU: 48024751
98 in stock

TS-6075-N - STARTER
SKU: TS-6075-N
3 in stock

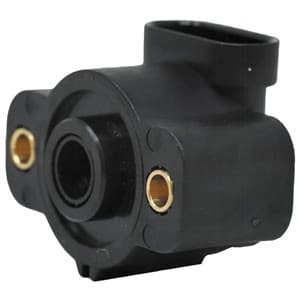

87330286 - Feeder and Lateral Tilt Sensor
SKU: 87330286
63 in stock

86977396 - Potentiometer
SKU: 86977396
84 in stock

177249A1 - 4-Position Rotary Switch
SKU: 177249A1
127 in stock

84173154 - Operator Presence Switch
SKU: 84173154
180 in stock
