Case IH PUMA-155 Tractor Parts

Replacement parts for the Case IH PUMA-155 Tractor. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.

The Case IH Puma 155 tractor, manufactured from 2007 to 2014, is a reliable workhorse for modern farming operations. Powered by a robust 6.7L FPT diesel engine delivering around 155 horsepower and a PTO horsepower of approximately 130, this model gained popularity among farmers for its versatility, fuel efficiency, and comfortable operator environment in a mid-range tractor.

About the PUMA 155

The Case IH Puma 155 was introduced as part of the Puma series, a line of tractors designed to bridge the gap between utility and high-horsepower row crop tractors. Production ran from 2007 through 2014. The heart of the Puma 155 is a 6.7-liter FPT (Fiat Powertrain Technologies) diesel engine. This turbocharged and intercooled engine produces approximately 155 horsepower, providing ample power for a variety of tasks. PTO horsepower is rated at approximately 130 hp. The Puma 155 typically features a powershift transmission offering a wide range of speeds, often 18 forward and 6 reverse, enhancing operational flexibility. It comes standard with both 540 and 1000 RPM PTO options. The hydraulic system boasts a capacity of around 32 GPM, providing sufficient flow for implements. Typically equipped with Category II or III 3-point hitch, depending on configuration, offering a lift capacity of around 8,700 lbs. The Case IH Puma 155 finds common application in row crop farming, hay production, livestock operations, and various tillage tasks. What distinguishes it from other models in the Case IH lineup is its ideal balance of power, maneuverability, and advanced features, making it a versatile choice for diverse farming needs.

PUMA 155 Specifications

EngineFPT 6.7L 155 HP Diesel
PTO HP130 HP @ 540/1000 RPM
TransmissionPowershift 18F/6R
Hydraulics32 GPM, 3-4 remotes
3-Point HitchCategory II/III, 8700 lbs
Fuel Capacity74 gallons
Weight14,500 lbs
Years Produced2007-2014

PUMA 155 Maintenance Tips

  • Engine Oil & Filter: Change the engine oil and filter every 250-300 hours using the recommended Case IH spec oil. Regularly check the oil level and condition.
  • Hydraulic System: Inspect hydraulic hoses and fittings for leaks. Replace the hydraulic filter every 500 hours and use only approved Case IH hydraulic fluid to prevent contamination.
  • Fuel System: Use clean, high-quality diesel fuel and replace the fuel filter every 500 hours. Drain water from the fuel tank regularly to prevent injector problems.
  • Seasonal Storage: Before storing for the off-season, fill the fuel tank to prevent condensation. Change engine oil and filters. Disconnect the battery and store it in a cool, dry place. Cover the tractor to protect it from the elements.

PUMA 155 History & Background

The Case IH Puma 155 was introduced in 2007 as a successor to previous models, incorporating advancements in engine technology and operator comfort. While there weren't major redesigns during its production run, it received minor updates to improve performance and reliability. This model played a significant role in modern agriculture by providing farmers with a powerful yet versatile tractor for a wide array of farming tasks.

Frequently Asked Questions

Which piston ring set fits the Case IH Puma 155?

The standard piston ring set for the Case IH Puma 155 is 8094845 - PISTON RING SET; STD..

What PTO shaft is available for the Case IH Puma 155 (540 RPM)?

For the 540 RPM PTO, the 47130743 - Shaft, PTO (540 RPM) is available.

Which cab air filter is suitable for the Case IH Puma 155?

The 87726675 - Filter; Cab Air is designed for the cab air filtration system of the Case IH Puma 155.

What are some recommended replacement parts for the Case IH Puma 155?

Showing 1-24 of 162 products
87395648 - MFWD Ball Joint

87395648 - MFWD Ball Joint

SKU: 87395648

$80.42

52 in stock

87332622 - Tie Rod Assembly

87332622 - Tie Rod Assembly

SKU: 87332622

$226.14

3 in stock

WL1078 - Rectangle Flood LED Work Lamp

WL1078 - Rectangle Flood LED Work Lamp

SKU: WL1078

$88.89

161 in stock

9703399-LED - Replaces Bulb #H3 1000 Lumens Bulb; LED

9703399-LED - Replaces Bulb #H3 1000 Lumens Bulb; LED

SKU: 9703399-LED

$19.84

288 in stock

82018390 - Pipe Type Amber Rotating Beacon

82018390 - Pipe Type Amber Rotating Beacon

SKU: 82018390

$71.83

651 in stock

84277822 - HOOD STRUT

84277822 - HOOD STRUT

SKU: 84277822

$33.93

27 in stock

87744542 - Rear Window Glass

87744542 - Rear Window Glass

SKU: 87744542

$296.40

25 in stock

87560786 - Door (LH) Glass
Out of Stock

87560786 - Door (LH) Glass

SKU: 87560786

$534.90

Out of stock

87304261 - LH Glass; Lower Front

87304261 - LH Glass; Lower Front

SKU: 87304261

$110.06

3 in stock

87304259 - RH Glass; Lower Front
Out of Stock

87304259 - RH Glass; Lower Front

SKU: 87304259

$103.79

Out of stock

82036570 - HOOD STRUT

82036570 - HOOD STRUT

SKU: 82036570

$42.61

19 in stock

82022486 - CAB GAS REAR WINDOW STRUT

82022486 - CAB GAS REAR WINDOW STRUT

SKU: 82022486

$25.07

36 in stock

87391136 - PTO Clutch Brake Band

87391136 - PTO Clutch Brake Band

SKU: 87391136

$91.60

74 in stock

87347166 - PTO Snap Ring

87347166 - PTO Snap Ring

SKU: 87347166

$15.44

315 in stock

5173295 - Separator; PTO Clutch Plate
Out of Stock

5173295 - Separator; PTO Clutch Plate

SKU: 5173295

$8.50

Out of stock

5163844 - Friction; PTO Clutch Disc

5163844 - Friction; PTO Clutch Disc

SKU: 5163844

$11.72

5 in stock

47130744 - PTO; 1000 RPM Shaft

47130744 - PTO; 1000 RPM Shaft

SKU: 47130744

$315.51

8 in stock

47130743 - PTO (540 RPM) Shaft

47130743 - PTO (540 RPM) Shaft

SKU: 47130743

$226.83

24 in stock

87802912 - Comp. w/ Clutch (Sanden Style)

87802912 - Comp. w/ Clutch (Sanden Style)

SKU: 87802912

$404.11

3 in stock

87374420 - Receiver/Drier

87374420 - Receiver/Drier

SKU: 87374420

$43.07

71 in stock

87000227 - A/C High Pressure Switch

87000227 - A/C High Pressure Switch

SKU: 87000227

$48.36

2 in stock

87530788 - Transmission Clutch Pack

87530788 - Transmission Clutch Pack

SKU: 87530788

$76.58

16 in stock

5199607 - .131" Thick Brake Pad; Hand Brake

5199607 - .131" Thick Brake Pad; Hand Brake

SKU: 5199607

$13.72

14 in stock

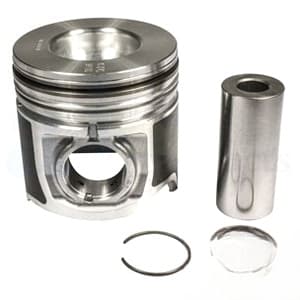

87317257 - +0.40 MM (.016") Piston W/ Rings

87317257 - +0.40 MM (.016") Piston W/ Rings

SKU: 87317257

$153.92

25 in stock
