Case IH 1394 Tractor Parts
Replacement parts for the Case IH 1394 Tractor. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The Case IH 1394 was a popular agricultural tractor manufactured from 1985 to 1988. Known for its reliable engine, producing around 73 horsepower, the 1394 offered a practical solution for a variety of farming tasks. With a PTO horsepower of approximately 65, this tractor was a dependable workhorse for farmers needing a versatile machine.
About the 1394
The Case IH 1394, produced between 1985 and 1988, built upon the legacy of its predecessors while offering improvements in performance and comfort. It was part of the 94 Series, a notable line known for its robust design. The 1394 is typically powered by a 3.9L (239 cubic inch) four-cylinder diesel engine, delivering approximately 73 horsepower. Its transmission is a manual gear type, often featuring 12 forward and 4 reverse speeds, providing a good range for various field operations. The PTO horsepower is around 65, and it commonly features a 540 RPM PTO for powering implements. Hydraulic capacity is generally around 11 GPM, supplying sufficient power for implements and steering, with typically 1-2 remote valves. The 3-point hitch is usually a Category II, offering a lift capacity in the range of 4,500 lbs. Common farming applications for the 1394 include row crop work, hay production, livestock operations, and light to medium tillage. What distinguishes it from other models is its balance of power, simplicity, and reliability, making it a cost-effective option for many farmers.
1394 Specifications
| Engine | Case IH 3.9L 73 HP Diesel |
|---|---|
| PTO HP | 65 HP @ 540 RPM |
| Transmission | Manual, 12 Forward / 4 Reverse |
| Hydraulics | 11 GPM, 1-2 remotes |
| 3-Point Hitch | Category II, 4500 lbs lift capacity |
| Fuel Capacity | 22.5 gallons |
| Weight | 6500 lbs |
| Years Produced | 1985-1988 |
1394 Maintenance Tips
- Change the engine oil and filter every 250 hours using a high-quality oil that meets Case IH specifications. Regular oil changes are vital for engine longevity.
- Inspect and maintain the hydraulic system regularly. Check for leaks, ensure proper fluid levels, and replace hydraulic filters as recommended in the operator's manual, typically every 500 hours.
- Maintain the fuel system by regularly checking and cleaning the fuel filters. Use clean, high-quality diesel fuel and consider adding a fuel stabilizer during seasonal storage to prevent fuel degradation.
- Before storing the tractor for an extended period, drain the fuel tank, add a fuel stabilizer, and lubricate all grease fittings. Disconnect the battery and store it in a cool, dry place to prevent damage from cold weather.
1394 History & Background
The Case IH 1394 was introduced in 1985 as part of the 94 Series. This series represented an evolution in tractor design, offering enhanced performance and operator comfort compared to earlier models. The 1394 remains a significant tractor in agricultural history due to its reliability and versatility in diverse farming applications.
Frequently Asked Questions
What starter is compatible with the Case IH 1394?
For the Case IH 1394, a reliable replacement starter is the 83981923 - Starter, Lucas.
Which thermostat is recommended for the Case IH 1394?
A suitable 180° thermostat for the Case IH 1394 is the K917962 - THERMOSTAT-180.
Which fuel filter fits the Case IH 1394?
For the Case IH 1394, consider the 83937061 - Filter, Fuel. This component helps ensure clean fuel delivery to your engine.
What are common parts needed for the Case IH 1394?
Commonly needed parts for the Case IH 1394 include the 83937061 - Filter, Fuel, a K964954 - Filter, Power Steering, the A61198 - O-Ring, and steering components like the A40962 - Tie Rod End. Additionally, a K620153 - Bearing, Trans Release (sealed) is a frequently replaced item.

VPC4710 - Thrust (Std) Washer Set
SKU: VPC4710
25 in stock

SK483 - Piston Liner Kit
SKU: SK483
5 in stock

SC200 - Cylinder (Semi-Finished) Liner
SKU: SC200
30 in stock

K908071 - Front Axle Tie Rod End
SKU: K908071
147 in stock

K260254 - Tie Rod End
SKU: K260254
42 in stock

K260250 - Tie Rod End
SKU: K260250
46 in stock

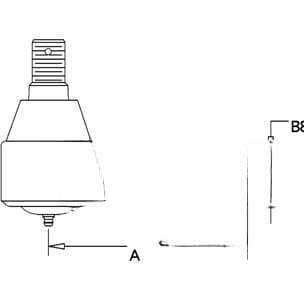

K207722 - Drag Link
SKU: K207722
66 in stock

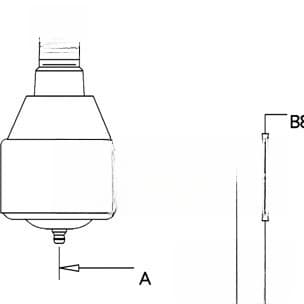

K207721 - Power Steering Cylinder End
SKU: K207721
74 in stock

A40962 - Tie Rod End
SKU: A40962
25 in stock

9967993 - 4WD Front Axle Bushing
SKU: 9967993
43 in stock

K68073 - Dyno WP Gen Alt Fan Belt
SKU: K68073
46 in stock

LM48548-I - Tapered Roller Bearing Cone
SKU: LM48548-I
794 in stock

LM48510-I - Tapered Bearing Cup
SKU: LM48510-I
340 in stock

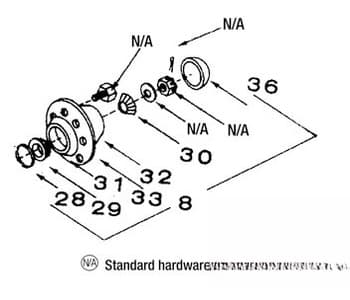

LM29749-I - Tapered Roller Bearing Cone
SKU: LM29749-I
236 in stock

LM29710-I - Tapered Bearing Cup
SKU: LM29710-I
144 in stock

WL1300 - Rectangle Hi / Low Flood / Spot Combo LED Work Lamp
SKU: WL1300
243 in stock

WL1295 - Rectangle Flood / Spot Combo LED Work Lamp
SKU: WL1295
Out of stock

E35556 - 10 Watt Dome Lamp; 12V Bulb
SKU: E35556
354 in stock

9703399-LED - Replaces Bulb #H3 1000 Lumens Bulb; LED
SKU: 9703399-LED
288 in stock

87283179-LED - Replacement For H4 Bulb 600 Lumens Bulb; LED
SKU: 87283179-LED
190 in stock

87283179 - Inner H4-12V Bulb
SKU: 87283179
73 in stock

529068 - Bulb
SKU: 529068
115 in stock

1333295C1 - LH Dip Headlamp (RH/LH)
SKU: 1333295C1
7 in stock

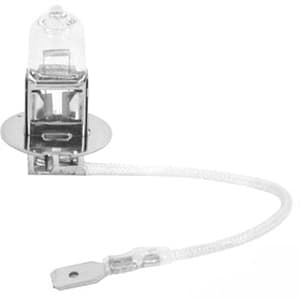

1312210C2 - Side Headlight/Worklight Lamp Bulb H3 12V 55W
SKU: 1312210C2
19 in stock
