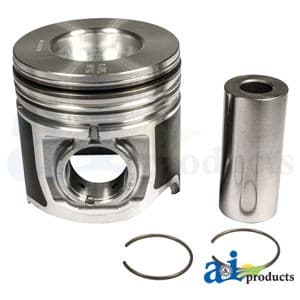

87317257 - +0.40 MM (.016") Piston W/ Rings








Specifications
- Height:
- 3.795" / 96.40 MM
- Diameter:
- Chamber: 2.795" / 71 MM; Chamber Depth: .807" / 20.50 MM
- Pin Diameter:
- 1.496" / 38 MM
- Ring Grooves:
- 3
- Crown Diameter:
- 4.067" / 103.300 MM
- Compression Height:
- 2.457" / 62.40 MM
About This Product
The 87317257 Piston W/ Rings; +0.40 MM (.016") is a premium replacement part engineered to fit Case-IH and Ford / New Holland equipment. Part number 87317257 is built to OEM specifications for reliable, long-lasting performance in demanding agricultural and industrial applications. Key specifications for 87317257: Height: 3.795" / 96.40 MM; Diameter: Chamber: 2.795" / 71 MM; Chamber Depth: .807" / 20.50 MM; Pin Diameter: 1.496" / 38 MM; Ring Grooves: 3; Crown Diameter: 4.067" / 103.300 MM; Compression Height: 2.457" / 62.40 MM. These specifications ensure proper fitment and function on compatible equipment. 87317257 is a direct-fit replacement designed for the following equipment: Case-IH MXU110, MAXXUM 115, MAXXUM 125, MAXXUM 140, MXU125, MXU135, and additional models; Ford / New Holland TS110A, TS125A, TS135A, T6030, T6050, T6070, and additional models. Order 87317257 from Madison Tractor for fast shipping, knowledgeable parts support, and our quality guarantee. We stock thousands of replacement parts for tractors, mowers, and agricultural equipment — if you have questions about 87317257 or need help confirming fitment, our parts specialists are ready to help.
Fits the following makes and models:
