Case IH 2096 Tractor Parts
Replacement parts for the Case IH 2096 Tractor. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The Case IH 2096 tractor, manufactured from 1983 to 1987, was a popular choice for farmers needing a reliable workhorse. Powered by a 130 horsepower diesel engine, and boasting around 110 PTO horsepower, the 2096 gained a reputation for its robust design and ability to handle a variety of agricultural tasks. Its comfortable cab and user-friendly controls further contributed to its popularity.
About the 2096
The Case IH 2096 was introduced in 1983 as part of the '96 series, replacing earlier models and offering advancements in operator comfort and hydraulic performance. It remained in production until 1987. The tractor is powered by an International Harvester DT-402 diesel engine, a 402 cubic inch (6.6L) inline 6-cylinder, producing approximately 130 engine horsepower. It features a partial powershift transmission with 8 forward and 4 reverse gears, providing a good range of speeds for various field operations. The 2096 delivers around 110 PTO horsepower, capable of running both 540 and 1000 RPM implements. Its hydraulic system provides a flow rate of approximately 24 GPM, adequate for operating implements requiring hydraulic power. The three-point hitch is a Category II, offering a lift capacity of around 6,400 lbs. Common farming applications for the 2096 include row crop work, hay production, livestock operations (for feeding and manure handling), and light tillage. The 2096 stood out within the Case IH lineup for its balance of power, features, and affordability, making it a versatile tractor for mid-sized farming operations. It offered more power than the smaller models in the series while remaining more economical than the larger, more sophisticated machines.
2096 Specifications
| Engine | International Harvester DT-402 130 HP 402 ci Diesel |
|---|---|
| PTO HP | 110 HP @ 540/1000 RPM |
| Transmission | Partial Powershift 8F/4R |
| Hydraulics | 24 GPM, 2 remotes |
| 3-Point Hitch | Category II, 6400 lbs |
| Fuel Capacity | 56 gallons |
| Weight | 13,240 lbs |
| Years Produced | 1983-1987 |
2096 Maintenance Tips
- Engine Oil and Filter: Change the engine oil and filter every 250 hours of operation, using the recommended oil type and filter specification to ensure optimal engine performance and longevity.
- Hydraulic System Maintenance: Regularly check the hydraulic fluid level and condition. Replace the hydraulic filters every 500 hours or annually, whichever comes first, to prevent contamination and maintain proper hydraulic system function.
- Fuel System Care: Use clean, high-quality diesel fuel. Inspect and clean the fuel filters regularly to prevent fuel system clogging. Drain any water accumulation from the fuel tank periodically to prevent corrosion and fuel line blockages.
- Seasonal Storage: Before storing the tractor for an extended period, stabilize the fuel, grease all fittings, and disconnect the battery. Store the tractor in a dry location to prevent rust and corrosion.
2096 History & Background
The Case IH 2096 was introduced in 1983 as part of a major update to the Case and International Harvester tractor lines following the merger of the two companies. While there were no major redesigns during its production run, minor improvements were implemented. This tractor represented a move towards improved operator comfort and increased hydraulic capabilities in the mid-range tractor market.
Frequently Asked Questions
Which alternator is recommended for the Case IH 2096?
For the Case IH 2096, a reliable replacement alternator is A187873 - ALTERNATOR. This unit ensures proper electrical system function.
Which fuel lift pump fits the Case IH 2096?
The Case IH 2096 typically uses a fuel lift pump such as 87319987 - Pump, Fuel Lift to ensure consistent fuel delivery.
What oil filter fits the 2096?
The recommended engine oil filter for the Case IH 2096 is LF3349 - Filter, Lube, Full-Flow Spin-On (QTY 12), which cross-references with the original Case IH 3140289R1.
What are common parts needed for the 2096?

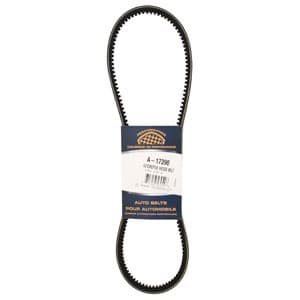

For the Case IH 2096, common replacement parts include the A169970 - Belt, 282775A1 - Switch, Ignition, 1981228C1 - Plate, PTO Clutch Friction, A47038 - Seal Kit, Hydrostatic Steering Hand Pump, and A170241 - Cap, Radiator (16 lb.).

ZP0750125010 - Ball Joint
SKU: ZP0750125010
303 in stock

WBKCA3 - Wheel Bearing Kit
SKU: WBKCA3
57 in stock

N14377 - Cylinder End
SKU: N14377
303 in stock

F22580 - CASE-IH
SKU: F22580
114 in stock

B93222 - Wheel Bearing Kit
SKU: B93222
18 in stock

A52166 - MFWD Tie Rod
SKU: A52166
35 in stock

A160200 - Short Tie Rod End
SKU: A160200
23 in stock

A160199 - Long Tie Rod
SKU: A160199
9 in stock

A160197 - Long Tie Rod End
SKU: A160197
60 in stock

A160166 - Tie Rod Tube
SKU: A160166
17 in stock

A149033 - Tie Rod Tube
SKU: A149033
33 in stock

A145857 - Tie Rod Wedge
SKU: A145857
27 in stock

A145846 - Spacer
SKU: A145846
167 in stock

A143876 - Tie Rod End (LH)
SKU: A143876
11 in stock

112204 - Tie Rod Assembly
SKU: 112204
2 in stock

112203 - Tie Rod Assembly
SKU: 112203
16 in stock

2852114 - Water Pump
SKU: 2852114
53 in stock

LM603049-I - Tapered Roller Bearing Cone
SKU: LM603049-I
336 in stock

LM603011-I - Tapered Bearing Cup
SKU: LM603011-I
94 in stock

WL1300 - Rectangle Hi / Low Flood / Spot Combo LED Work Lamp
SKU: WL1300
243 in stock

D71346 - Bulb
SKU: D71346
497 in stock

87271837 - Flasher Control Switch
SKU: 87271837
390 in stock

529068 - Bulb
SKU: 529068
115 in stock

1156L24 - Replaces Bulb #1156 (2 Pack) 2400 Lumens LED Bulb
SKU: 1156L24
56 in stock
