Case IH 460 Tractor Parts
Replacement parts for the Case IH 460 Tractor. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The Case IH 460 tractor, manufactured from 1958 to 1960, was a popular choice for farmers seeking a reliable and versatile machine. Powered by an International Harvester 4-cylinder engine producing approximately 47 horsepower, the 460 delivered ample power for various tasks. With a PTO horsepower of around 41, it excelled in powering implements for plowing, tilling, and other agricultural operations.
About the 460
The Case IH 460 was introduced as part of the 00 series, building upon the success of previous International Harvester models. Production ran from 1958 to 1960. It featured an International Harvester C-264 4-cylinder engine, delivering approximately 47 horsepower. This engine had a displacement of 264 cubic inches and was available in both gasoline and LP gas versions. The transmission was a gear-type with either 5 forward and 1 reverse speeds or 10 forward and 2 reverse speeds with the Torque Amplifier. The PTO horsepower was rated at around 41 HP, and it offered a standard 540 RPM PTO. Hydraulic capacity was approximately 9.5 GPM, supporting the operation of rear remotes. It had a Category I or II 3-point hitch. The 460 was commonly used for various farming applications including row crop work, haying operations, and general livestock tasks. What set it apart from others in the lineup was its balanced combination of power, size, and affordability, making it a valuable asset to many farms. The Torque Amplifier option offered operators increased flexibility to match the tractor's speed to the terrain or the implement load.
460 Specifications
| Engine | International Harvester C-264 47 HP Gas/LP |
|---|---|
| PTO HP | 41 HP @ 540 RPM |
| Transmission | Gear Type 5/1 or 10/2 w/ TA |
| Hydraulics | 9.5 GPM, 2 remotes |
| 3-Point Hitch | Category I/II, 2500 lbs |
| Fuel Capacity | 19 gallons |
| Weight | 4750 lbs |
| Years Produced | 1958-1960 |
460 Maintenance Tips
- Change the engine oil and filter every 100-125 hours of operation, using the recommended oil type for your climate.
- Regularly inspect and maintain the hydraulic system, checking for leaks and ensuring proper fluid levels. Replace hydraulic filters according to the manufacturer's recommendations.
- Keep the fuel system clean by using quality fuel and adding a fuel stabilizer, especially during seasonal storage. Drain any water accumulation in the fuel tank and replace fuel filters regularly.
- Before storing the tractor for the winter, drain all fluids, flush the cooling system, and grease all fittings. Disconnect the battery and store it in a cool, dry place.
460 History & Background
The Case IH 460 tractor was introduced in 1958 as part of International Harvester's updated lineup. It represented a step forward in tractor design, offering improved performance and operator comfort compared to its predecessors. The 460 played a significant role in the mechanization of agriculture during the late 1950s and early 1960s.
Frequently Asked Questions
Which spark plug is recommended for the Case IH 460?
For gasoline versions of the Case IH 460, we recommend the 4012405C - Spark Plug.
What inner tie rod fits the Case IH 460?
The 384006R92 - Tie Rod, Inner is a suitable replacement for the Case IH 460.
Which ignition coil is suitable for the Case IH 460?
The 396546R93 - Ignition Coil - 6 Volt W/O External Resistor or 12 Volt W/ External Resistor is designed for the Case IH 460, compatible with both 6-volt (without external resistor) or 12-volt (with external resistor) systems.
What are common parts needed for the 460?

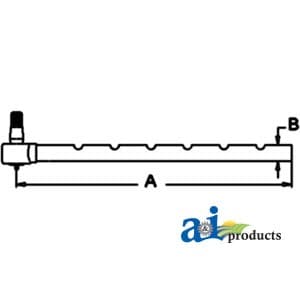

For regular maintenance and common replacements on the Case IH 460, frequently needed parts include the 49923D - Screen, Fuel Filter, a new 359984R93 - Tie Rod, Outer for steering, a replacement 374033R1 - Disc, Clutch Inner, NEW for the clutch, the 59879D - Bearing, Release: 2.375" ID (sealed), and a D25826 - Cap, Radiator (4 lb.).

VTK236 - Valve Train Kit
SKU: VTK236
1 in stock

SK434 - Piston Liner Kit
SKU: SK434
4 in stock

SK288 - Piston Liner Kit
SKU: SK288
28 in stock

SD482 - Cylinder Liner
SKU: SD482
18 in stock

SD372 - Cylinder Liner
SKU: SD372
10 in stock

NAA33271A - Rear Drag Link End
SKU: NAA33271A
31 in stock

60381 - Tie Rod Boot
SKU: 60381
249 in stock

48704DA - Wheel Hub Seal
SKU: 48704DA
56 in stock

384006R1 - inner Ref 12 - Tie rod
SKU: 384006R1
499 in stock

383917R1 - Tube
SKU: 383917R1
238 in stock

375620R1 - Tie Rod Clamp
SKU: 375620R1
340 in stock

374062R1 - Jam Nut
SKU: 374062R1
350 in stock

370689R21 - w/ Bushings Knee
SKU: 370689R21
59 in stock

363161R92 - Rear Drag Link End
SKU: 363161R92
12 in stock

363160R91 - Front Drag Link End
SKU: 363160R91
22 in stock

359986R1 - Clamp
SKU: 359986R1
340 in stock

359984R1 - outer Ref 13 - Tie rod
SKU: 359984R1
415 in stock

251105R1 - Pivot Pin Retaining Pin
SKU: 251105R1
27 in stock

223313 - Complete Tie Rod Assembly
SKU: 223313
349 in stock

112201 - Tie Rod Assembly
SKU: 112201
33 in stock

M12649-I - Tapered Roller Bearing Cone
SKU: M12649-I
162 in stock

M12610-I - Tapered Bearing Cup
SKU: M12610-I
151 in stock

LM48548-I - Tapered Roller Bearing Cone
SKU: LM48548-I
794 in stock

LM48510-I - Tapered Bearing Cup
SKU: LM48510-I
340 in stock
