Case IH 1690 Tractor Parts

Browse Case IH 1690 Tractor replacement parts. Everything from routine maintenance items to hard-to-find components.

The Case IH 1690 tractor, manufactured from 1979 to 1983, was a workhorse on many farms. Powered by a robust 130 horsepower diesel engine, it offered reliable performance for a variety of tasks. Its strong PTO, rated at 118 horsepower, and sturdy build made it a popular choice for farmers needing a dependable tractor for tillage and implement work.

About the 1690

The Case IH 1690 was part of the International Harvester/Case IH lineup during the late 1970s and early 1980s, specifically produced from 1979 to 1983. It represented a step up in power and capability from smaller models. Under the hood, it featured a Perkins A6.354T 6-cylinder turbocharged diesel engine, producing approximately 130 engine horsepower with a displacement of 354 cubic inches (5.8 liters). This diesel engine was known for its durability and fuel efficiency. The transmission was typically a partial power shift, offering multiple forward and reverse speeds for versatile operation. The PTO delivered around 118 horsepower at either 540 or 1000 RPM, making it suitable for powering a wide range of implements. Hydraulic capacity was adequate for running hydraulic motors and remote cylinders, with multiple remote valves available. The tractor boasted a Category II 3-point hitch, providing ample lift capacity for various implements. Common farming applications included row crop work, hay production, livestock operations involving feeding and manure handling, and tillage tasks. The 1690 distinguished itself with its strong engine, reliable transmission, and versatile PTO options, making it a favored choice for medium-sized farms.

1690 Specifications

EnginePerkins A6.354T 130 HP Diesel
PTO HP118 HP @ 540/1000 RPM
TransmissionPartial Power Shift 12F/4R
Hydraulics15 GPM, 2 remotes
3-Point HitchCategory II, 6,000 lbs lift
Fuel Capacity37 gallons
Weight12,000 lbs
Years Produced1979-1983

1690 Maintenance Tips

  • Engine Oil & Filter: Change engine oil and filter every 250 hours of operation. Use a high-quality diesel engine oil meeting API CF-4 or higher specifications.
  • Hydraulic System: Inspect hydraulic fluid levels regularly and change the hydraulic filter every 500 hours. Use a compatible hydraulic fluid meeting Case IH specifications.
  • Fuel System: Use clean, high-quality diesel fuel. Drain the fuel sediment bowl regularly to remove water and contaminants. Replace the fuel filter as recommended in the operator's manual.
  • Seasonal Storage: Before storing the tractor for extended periods, fill the fuel tank to prevent condensation. Add a fuel stabilizer to the fuel. Disconnect the battery and store it in a cool, dry place.

1690 History & Background

Introduced in 1979, the Case IH 1690 filled a crucial gap in the market for a powerful yet versatile tractor. While there were no major redesigns during its production run, it became known for its dependable performance and contributed to the brand's reputation for quality farm machinery. Its durable engine and strong PTO made it a lasting presence on farms for years.

Frequently Asked Questions

Which starter motor is recommended for the Case IH 1690?

The recommended replacement starter for the Case IH 1690 is the K953785 - Starter, Lucas. This unit is designed for reliable performance in this model.

What replacement alternator is available for the Case IH 1690?

For the Case IH 1690, a reliable replacement alternator is the 92281C1 - Alternator, Lucas. This component ensures proper electrical system charging.

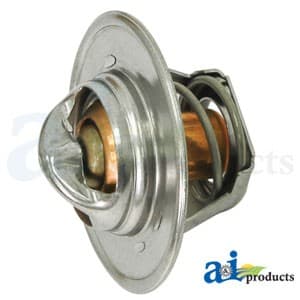

Which thermostat is suitable for the Case IH 1690?

The Case IH 1690 can use the K917962 - THERMOSTAT-180, designed to maintain optimal engine operating temperature.

What are common replacement parts for the Case IH 1690?

For routine maintenance and common replacements on the Case IH 1690, consider checking parts such as the 83937061 - Filter, Fuel, 3107556R92 - SWITCH W/KEYS, various A61198 - O-Ring seals, 3114166R91 - Rim, Front Wheel 5.5" X 16", K963645 - Ball, Brake Actuator, and WL7606 - Light Assembly, LED, Flood.

Showing 1-24 of 264 products
SK483 - Piston Liner Kit

SK483 - Piston Liner Kit

SKU: SK483

$109.82

5 in stock

SC200 - Cylinder (Semi-Finished) Liner

SC200 - Cylinder (Semi-Finished) Liner

SKU: SC200

$62.65

30 in stock

K260254 - Tie Rod End

K260254 - Tie Rod End

SKU: K260254

$49.26

42 in stock

K260250 - Tie Rod End

K260250 - Tie Rod End

SKU: K260250

$49.26

46 in stock

K207722 - Drag Link

K207722 - Drag Link

SKU: K207722

$38.58

66 in stock

9967993 - 4WD Front Axle Bushing

9967993 - 4WD Front Axle Bushing

SKU: 9967993

$181.56

43 in stock

WL7610 - Trapezoid LED Light Assembly

WL7610 - Trapezoid LED Light Assembly

SKU: WL7610

$102.38

98 in stock

WL7606 - Flood LED Light Assembly

WL7606 - Flood LED Light Assembly

SKU: WL7606

$102.38

92 in stock

WL1300 - Rectangle Hi / Low Flood / Spot Combo LED Work Lamp

WL1300 - Rectangle Hi / Low Flood / Spot Combo LED Work Lamp

SKU: WL1300

$108.57

243 in stock

A139458 - Sealed Beam Halogen Lamp (12 Volt)

A139458 - Sealed Beam Halogen Lamp (12 Volt)

SKU: A139458

$25.01

79 in stock

9703399-LED - Replaces Bulb #H3 1000 Lumens Bulb; LED

9703399-LED - Replaces Bulb #H3 1000 Lumens Bulb; LED

SKU: 9703399-LED

$19.84

288 in stock

87283179-LED - Replacement For H4 Bulb 600 Lumens Bulb; LED

87283179-LED - Replacement For H4 Bulb 600 Lumens Bulb; LED

SKU: 87283179-LED

$19.90

190 in stock

87283179 - Inner H4-12V Bulb

87283179 - Inner H4-12V Bulb

SKU: 87283179

$8.50

73 in stock

28A157 - H7606 Halogen Sealed Beam Lamps

28A157 - H7606 Halogen Sealed Beam Lamps

SKU: 28A157

$20.07

53 in stock

1333295C1 - LH Dip Headlamp (RH/LH)

1333295C1 - LH Dip Headlamp (RH/LH)

SKU: 1333295C1

$51.76

7 in stock

K946083 - Power Steering Motor

K946083 - Power Steering Motor

SKU: K946083

$556.94

27 in stock

K944947 - Hydraulic Pump Drive Shaft Coupler

K944947 - Hydraulic Pump Drive Shaft Coupler

SKU: K944947

$121.22

41 in stock

K201984 - Hydraulic Pump Drive w/ A/C Coupler

K201984 - Hydraulic Pump Drive w/ A/C Coupler

SKU: K201984

$189.60

14 in stock

K200465 - Hydraulic Pump Drive w/o A/C Coupler

K200465 - Hydraulic Pump Drive w/o A/C Coupler

SKU: K200465

$164.94

8 in stock

K200464 - Hydraulic Pump Drive Shaft

K200464 - Hydraulic Pump Drive Shaft

SKU: K200464

$121.46

34 in stock

K914312 - Front Wheel 5.5" X 16" Rim

K914312 - Front Wheel 5.5" X 16" Rim

SKU: K914312

$115.92

260 in stock

K611270 - Rim Wheel (10 Pk) Bolt

K611270 - Rim Wheel (10 Pk) Bolt

SKU: K611270

$3.89

7450 in stock

FW55186 - Front Wheel 5.5" x 18" Rim

FW55186 - Front Wheel 5.5" x 18" Rim

SKU: FW55186

$172.86

33 in stock

E1ADKN1015A - Front Wheel 5.5" X 16" Rim

E1ADKN1015A - Front Wheel 5.5" X 16" Rim

SKU: E1ADKN1015A

$115.92

260 in stock
