Case IH MAXXUM-130 Tractor Parts
Case IH MAXXUM-130 Tractor parts in stock. Quality OEM and aftermarket replacement parts with fast shipping and competitive prices.
The Case IH Maxxum 130 tractors, manufactured from 2008-2015, were known for their versatility and reliability in a range of farming applications. Powered by a 130 HP, 6.7L FPT diesel engine, these tractors offered excellent power and fuel efficiency. With a PTO horsepower rating around 110-120, the Maxxum 130 provided ample power for implements, making it a favorite among farmers needing a dependable mid-size tractor.
About the MAXXUM 130
The Case IH Maxxum 130 was introduced as part of the Maxxum series, known for its robust design and operator comfort. Production spanned from 2008 to 2015. The engine powering this model is a 6.7-liter FPT (Fiat Powertrain Technologies) diesel engine, producing around 130 horsepower. This inline 6-cylinder engine is known for its durability and efficient fuel consumption. The transmission options typically included a partial powershift transmission offering multiple speeds forward and reverse, providing excellent control in various field conditions. PTO horsepower is rated at approximately 110-120 HP, with both 540 and 1000 RPM options available, catering to a wide range of implements. Hydraulic capacity is around 29 GPM, with multiple remote valves for operating hydraulic implements. The 3-point hitch is typically a Category II or III, with a lift capacity ranging from 7,000 to 8,000 lbs. Common applications include row crop work, hay baling and handling, livestock feeding, and light tillage operations. Compared to other models in the Maxxum lineup, the 130 offered a sweet spot in terms of power and size, making it suitable for medium-sized farms.
MAXXUM 130 Specifications
| Engine | FPT 6.7L 130 HP Diesel |
|---|---|
| PTO HP | 115 HP @ 540/1000 RPM |
| Transmission | Partial Powershift, 16x16 |
| Hydraulics | 29 GPM, 3 remotes |
| 3-Point Hitch | Category II/III, 7,870 lbs |
| Fuel Capacity | 42.3 gallons |
| Weight | 12,786 lbs |
| Years Produced | 2008-2015 |
MAXXUM 130 Maintenance Tips
- Engine Oil & Filter: Change engine oil and filter every 250-300 hours using the recommended oil type and a quality filter to maintain engine health.
- Hydraulic System: Regularly inspect hydraulic fluid levels and filter condition. Replace hydraulic filters according to the manufacturer's schedule (typically every 500 hours) to prevent contamination.
- Fuel System: Use clean, high-quality diesel fuel and inspect fuel filters regularly. Drain water from the fuel tank periodically to prevent fuel system issues.
- Seasonal Storage: Before storing the tractor for an extended period, stabilize the fuel, change engine oil, and grease all lubrication points to prevent corrosion and ensure smooth operation when restarting.
MAXXUM 130 History & Background
The Case IH Maxxum 130 was a key model in the Maxxum series, representing a step up in power and capability from smaller models while remaining versatile for a variety of tasks. Introduced in 2008, it offered modern features and improved operator comfort, solidifying its position as a reliable and efficient tractor in the agricultural landscape.
Frequently Asked Questions
Which standard piston ring set is suitable for the Maxxum 130?
For a standard replacement, the 8094845 - PISTON RING SET; STD. is a suitable option for the Maxxum 130.
What PTO shaft (540 RPM) is recommended for the Maxxum 130?
The 47130743 - Shaft, PTO (540 RPM) is recommended for replacement on the Maxxum 130.
Which outer air filter is suitable for the Maxxum 130?
For the Maxxum 130, the 87704244 - Filter, Outer Air is a suitable replacement.
What are common parts needed for the MAXXUM 130?

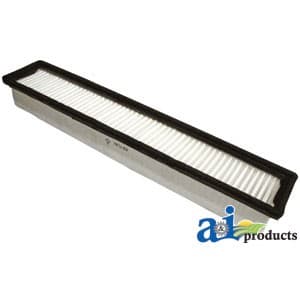

Regular maintenance and repairs for the Maxxum 130 often include parts such as the J911572 - Belt, Fan, Alt, WP, 87802911 - Belt, A/C, 5801483583 - Seal, Oil, 87726675 - Filter; Cab Air, and the 5197798 - Tie Rod Assembly.

87395648 - MFWD Ball Joint
SKU: 87395648
52 in stock

5197798 - Tie Rod Assembly
SKU: 5197798
44 in stock

2852114 - Water Pump
SKU: 2852114
53 in stock

WL1078 - Rectangle Flood LED Work Lamp
SKU: WL1078
161 in stock

9703399-LED - Replaces Bulb #H3 1000 Lumens Bulb; LED
SKU: 9703399-LED
288 in stock

82018390 - Pipe Type Amber Rotating Beacon
SKU: 82018390
651 in stock

VPA4148 - Upper (L/ Head Gasket) Gasket Set
SKU: VPA4148
4 in stock

87744542 - Rear Window Glass
SKU: 87744542
25 in stock

87566892 - LH Glass; Lower Front
SKU: 87566892
9 in stock

87566891 - RH Glass; Lower Front
SKU: 87566891
Out of stock

87560791 - Door (RH) Glass
SKU: 87560791
1 in stock

87560786 - Door (LH) Glass
SKU: 87560786
Out of stock

87304261 - LH Glass; Lower Front
SKU: 87304261
3 in stock

87304259 - RH Glass; Lower Front
SKU: 87304259
Out of stock

87304257 - Front Windshield Glass
SKU: 87304257
24 in stock

82022486 - CAB GAS REAR WINDOW STRUT
SKU: 82022486
36 in stock

87391136 - PTO Clutch Brake Band
SKU: 87391136
74 in stock

87347166 - PTO Snap Ring
SKU: 87347166
315 in stock

5173295 - Separator; PTO Clutch Plate
SKU: 5173295
Out of stock

5163844 - Friction; PTO Clutch Disc
SKU: 5163844
5 in stock

47132584 - PTO; 1000 RPM Shaft
SKU: 47132584
48 in stock

47130744 - PTO; 1000 RPM Shaft
SKU: 47130744
8 in stock

47130743 - PTO (540 RPM) Shaft
SKU: 47130743
24 in stock

98370C2 - Expansion Valve (block type)
SKU: 98370C2
83 in stock
