Case IH CX90 Tractor Parts
Replacement parts for the Case IH CX90 Tractor. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The Case IH CX90, produced from 1997 to 2002, is a versatile agricultural tractor known for its reliability and efficiency. Powered by a 90 horsepower diesel engine and boasting around 75 PTO horsepower, the CX90 quickly became a favorite among farmers needing a mid-size tractor capable of handling a variety of tasks, from haying to row crop work.
About the CX90
The Case IH CX90 was introduced as part of the CX series, designed to offer modern features and performance in a compact and user-friendly package. Production ran from 1997 to 2002. At the heart of the CX90 is a 4.5L (274 ci) Iveco 8045.05 diesel engine, producing a reliable 90 horsepower. This tractor featured a mechanical 12-speed forward and 12-speed reverse transmission, providing a good range of speeds for various agricultural applications. The independent PTO delivers approximately 75 horsepower, available in either 540 RPM or 1000 RPM configurations. The hydraulic system has a capacity of around 14 GPM and usually features two rear remotes. The 3-point hitch is typically a Category II, offering a lift capacity of approximately 5,500 lbs. The CX90's adaptability made it ideal for row crop operations, hay production, livestock management, and light tillage work. Its relatively compact size and maneuverability distinguished it from larger Case IH models, while its power and features surpassed smaller utility tractors.
CX90 Specifications
| Engine | Iveco 8045.05 90 HP 4.5L Diesel |
|---|---|
| PTO HP | 75 HP @ 540/1000 RPM |
| Transmission | Mechanical 12F/12R |
| Hydraulics | 14 GPM, 2 remotes |
| 3-Point Hitch | Category II, 5500 lbs lift capacity |
| Fuel Capacity | 28 gallons |
| Weight | 7500 lbs |
| Years Produced | 1997-2002 |
CX90 Maintenance Tips
- Change your engine oil and filter every 250 hours using a high-quality oil meeting Case IH specifications.
- Regularly inspect and clean or replace your hydraulic filters to prevent contamination and ensure smooth hydraulic operation.
- Use a fuel stabilizer during seasonal storage to prevent fuel degradation and keep the fuel system clean. Drain water from the fuel/water separator regularly.
- Inspect and lubricate all grease fittings on the tractor, including steering components and PTO shaft, every 50 hours of operation.
CX90 History & Background
The Case IH CX90 was launched in 1997 as a key model in the CX series. Designed to bridge the gap between utility and larger row crop tractors, it offered a blend of power and versatility that resonated with many farmers. There were no major redesigns during its production run, solidifying its place as a dependable workhorse.
Frequently Asked Questions
Which starter motor fits the Case IH CX90?
The Lucas starter motor 234987A1 - Starter, Lucas is a direct replacement for the Case IH CX90.
What replacement PTO clutch plate is available for the CX90?
The 401717R1 - Plate, PTO Clutch is suitable for the PTO system on the Case IH CX90.
What oil filter fits the CX90?

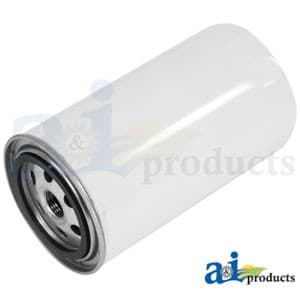

The recommended engine oil filter for the Case IH CX90 is the 3214797R1 - Filter, Engine Oil.
What are common parts needed for the CX90?

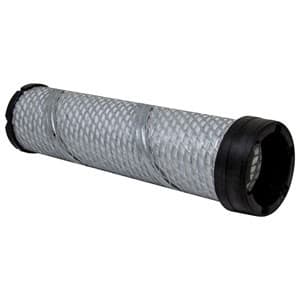

Regular maintenance often requires replacing items such as the 222422A1 - Filter, Inner Air and other filters. Steering components like the ZP0750125014 - Ball Joint are also common replacements. Other frequently needed parts include the 67328C1 - Wear Sleeve, ST553 - Bearing, Pilot (sealed), 87414866 - Relay, Blower Motor (20 Amp), and 483879R2 - Nut, Wheel (1/2-20).

ZP0750125014 - Ball Joint
SKU: ZP0750125014
71 in stock

CAR49001 - Ball Joint (RH)
SKU: CAR49001
71 in stock

9967993 - 4WD Front Axle Bushing
SKU: 9967993
43 in stock

85805975 - Steering Cylinder Ball Joint
SKU: 85805975
71 in stock

83974364 - Ball Joint (RH)
SKU: 83974364
71 in stock

83957758 - Ball Joint (RH)
SKU: 83957758
71 in stock

83957097 - Ball Joint (RH)
SKU: 83957097
71 in stock

65079C91 - Long Tie Rod
SKU: 65079C91
213 in stock

612884R1 - Hub Cap
SKU: 612884R1
46 in stock

405584R2 - Axle Bolt
SKU: 405584R2
68 in stock

3121257R91 - Knee Extension (RH)
SKU: 3121257R91
12 in stock

3121256R91 - Knee Extension (LH)
SKU: 3121256R91
12 in stock

1966127C1 - Ball Joint (LH)
SKU: 1966127C1
13 in stock

1966125C1 - Ball Joint (RH)
SKU: 1966125C1
71 in stock

1537872C1 - Steering End
SKU: 1537872C1
23 in stock

137048A1 - Tie Rod End (RH)
SKU: 137048A1
63 in stock

137047A1 - Tie Rod End (LH)
SKU: 137047A1
9 in stock

1332805C2 - Outer Tie Rod
SKU: 1332805C2
188 in stock

112508A1 - Tie Rod
SKU: 112508A1
13 in stock

311781A1 - Water Pump
SKU: 311781A1
17 in stock

293515A1 - Water Pump
SKU: 293515A1
1 in stock

WL6482R - Hi / Low RH LED Headlight
SKU: WL6482R
207 in stock

WL6481L - Hi / Low LH LED Headlight
SKU: WL6481L
214 in stock

WL2449L - Hi / Low LH LED Headlight
SKU: WL2449L
184 in stock
