Case IH 9390 Tractor Parts
Browse Case IH 9390 Tractor replacement parts. Everything from routine maintenance items to hard-to-find components.
The Case IH 9390 tractor, manufactured from 1996 to 1999, was a powerful articulated 4WD machine designed for demanding agricultural tasks. Powered by a robust 400 HP Cummins N14 diesel engine, the 9390 delivered exceptional performance and reliability. Its high PTO horsepower made it a favorite among farmers needing a dependable tractor for heavy tillage and large implements.
About the 9390
The Case IH 9390 was introduced in 1996 as part of the 9300 series, replacing earlier Steiger-built models. It remained in production until 1999. The heart of the 9390 is a Cummins N14 diesel engine, producing approximately 400 horsepower with a displacement of 855 cubic inches (14.0 liters). This engine provided ample power for the most demanding field operations. It features a 12-speed powershift transmission, allowing for smooth and efficient gear changes under load. The PTO delivers around 335 horsepower at 1000 RPM. Hydraulic capacity is approximately 51 GPM, with typically 4 remote valves available. The three-point hitch is rated as Category IV. Common applications included primary tillage, planting large acreage row crops (corn, soybeans, wheat), and pulling large implements like chisel plows and discs. Compared to other models in the Case IH lineup, the 9390 offered a higher horsepower rating and articulated design for enhanced maneuverability in large fields, making it a top choice for large-scale farming operations.
9390 Specifications
| Engine | Cummins N14 400 HP Diesel |
|---|---|
| PTO HP | 335 HP @ 1000 RPM |
| Transmission | Powershift 12 Forward / 2 Reverse |
| Hydraulics | 51 GPM, 4 remotes |
| 3-Point Hitch | Category IV, 14,000 lbs |
| Fuel Capacity | 285 gallons |
| Weight | 38,500 lbs |
| Years Produced | 1996-1999 |
9390 Maintenance Tips
- Engine Oil & Filter: Change engine oil and filter every 250 hours using the recommended oil type and filter. Keep the oil level properly maintained.
- Hydraulic System: Regularly inspect hydraulic hoses and fittings for leaks. Change hydraulic fluid and filter every 500 hours to prevent contamination and maintain performance.
- Fuel System: Use clean, high-quality diesel fuel. Change fuel filters according to the manufacturer's recommendations, typically every 250-500 hours, to prevent fuel system issues.
- Seasonal Storage: Before storing the tractor for the off-season, fill the fuel tank to prevent condensation and rust. Change engine oil and filter, and disconnect the battery to prevent discharge. Consider using fuel stabilizer.
9390 History & Background
The Case IH 9390 debuted in 1996 as a powerful addition to the Case IH tractor lineup. It represented the continued evolution of large articulated tractors for broad-acre farming. This model, with its Cummins engine and robust design, cemented Case IH's reputation for building reliable and high-performance agricultural machinery.
Frequently Asked Questions
Which AC compressor is suitable for the Case IH 9390?
For the Case IH 9390, the 1999755C3 - Compressor, New, Sanden Style w/Clutch (4478) is a recommended replacement. It's designed to provide efficient cooling for your cab.

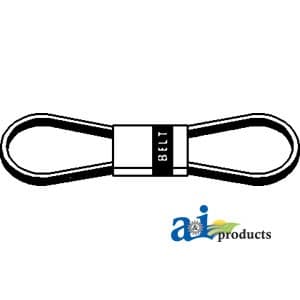

Which alternator belt is used on the Case IH 9390?
The 908383T1 - Belt, Alternator sub to 415K5 is a compatible replacement for the alternator on your Case IH 9390.
What oil filter fits the Case IH 9390?
The LF3000 - Filter, Lube, Combination (QTY 6) is a suitable oil filter for the Case IH 9390. This part ensures proper lubrication and engine protection.
What are common replacement parts for the Case IH 9390?
Common replacement parts for the Case IH 9390 often include the FS1212 - Separator, Fuel/Water, Spin-On (QTY 12), a WF2071 - Filter, Water, Spin-On (QTY 12), and the 87033212 - Expansion Valve (block type). Additionally, lighting components like the 1156-LED - Bulb, LED; 600 Lumens, Replaces Bulb #1156 (2 Pack), along with transmission parts such as the 33-1518T2 - Friction Disc, Input / 2nd / PTO Clutch, and cab convenience items like the 9706806 - Gas Strut, Cab Door (RH/LH) are frequently needed.

WL9325KT - 10 Lights LED Light Kit
SKU: WL9325KT
7 in stock

WL1035 - Flood Hi/Lo Beam LED Sealed Beam
SKU: WL1035
121 in stock

E35556 - 10 Watt Dome Lamp; 12V Bulb
SKU: E35556
354 in stock

D71346 - Bulb
SKU: D71346
497 in stock

529068 - Bulb
SKU: 529068
115 in stock

22-665T1 - LED Amber Flasher / Turn Signal Lamp
SKU: 22-665T1
431 in stock

1156L24 - Replaces Bulb #1156 (2 Pack) 2400 Lumens LED Bulb
SKU: 1156L24
56 in stock

1156-LED - Replaces Bulb #1156 (2 Pack) LED; 600 Lumens Bulb
SKU: 1156-LED
127 in stock

A185714 - Gas Strut
SKU: A185714
366 in stock

9706806 - Cab Door (RH/LH) Gas Strut
SKU: 9706806
366 in stock

L73646 - Switch AC/HT
SKU: L73646
73 in stock

98370C2 - Expansion Valve (block type)
SKU: 98370C2
83 in stock

97204C1 - Sanden Style w/ Clutch (4478) New Compressor
SKU: 97204C1
34 in stock

92101C1 - AC/HT Switch
SKU: 92101C1
73 in stock

87033212 - Expansion Valve (block type)
SKU: 87033212
79 in stock

86993462 - Compressor
SKU: 86993462
34 in stock

86983967 - A/C Compressor
SKU: 86983967
4 in stock

60-5880T1 - Expan.Valve
SKU: 60-5880T1
79 in stock

355190A1 - Cab Inner Roof Blower Assy W/ Resistor
SKU: 355190A1
29 in stock

232948A1 - Switch High Pressure
SKU: 232948A1
12 in stock

1999755C3 - Sanden Style w/Clutch (4478) New Compressor
SKU: 1999755C3
34 in stock

1990758C2 - Receiver Drier
SKU: 1990758C2
109 in stock

1990756C2 - Expan.Valve
SKU: 1990756C2
79 in stock

143469C2 - Receiver Drier
SKU: 143469C2
109 in stock
