Case IH 8950 Tractor Parts
Replacement parts for the Case IH 8950 Tractor. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The Case IH 8950, manufactured from 1994 to 1997, was a powerful workhorse in the field. Equipped with a Cummins 8.3L diesel engine producing around 215 engine horsepower and a PTO output of approximately 180 horsepower, this tractor quickly became a favorite. Farmers appreciated its robust build, reliable power, and comfortable cab, making it ideal for a variety of demanding tasks.
About the 8950
The Case IH 8950 was introduced in 1994 as part of the 8900 series, replacing earlier models and building upon Case IH's reputation for reliable and powerful tractors. Production continued through 1997. This model features a Cummins 8.3L inline 6-cylinder diesel engine, delivering approximately 215 horsepower. The transmission is a full powershift with 18 forward and 9 reverse speeds, providing excellent control and efficiency in the field. PTO horsepower is rated at around 180 hp, with both 540 and 1000 RPM options. The hydraulic system delivers around 30 GPM to handle demanding implements, typically configured with 3-4 remote valves. The 3-point hitch is a Category III, capable of lifting over 9,000 lbs. This tractor was commonly used in row crop applications, hay production, livestock operations for feeding and manure handling, and tillage work. The 8950 distinguishes itself within the Case IH lineup with its blend of power, advanced transmission, and comfortable operator environment, placing it as a premium model for medium to large-scale farming operations.
8950 Specifications
| Engine | Cummins 8.3L 215 HP Diesel |
|---|---|
| PTO HP | 180 HP @ 1000 RPM |
| Transmission | Full Powershift 18F/9R |
| Hydraulics | 30 GPM, 3-4 remotes |
| 3-Point Hitch | Category III, 9,260 lbs lift |
| Fuel Capacity | 84 gallons |
| Weight | 18,600 lbs |
| Years Produced | 1994-1997 |
8950 Maintenance Tips
- Change engine oil and filter every 250 hours of operation using high-quality oil meeting Case IH specifications to prolong engine life.
- Regularly inspect and service the hydraulic system, checking fluid levels and replacing hydraulic filters according to the manufacturer's recommendations to ensure proper operation of implements.
- Use clean, high-quality fuel and replace fuel filters at recommended intervals to prevent fuel system issues and maintain optimal engine performance.
- Before storing the tractor for the off-season, drain the fuel tank, add fuel stabilizer, and lubricate all grease fittings to prevent corrosion and ensure easy start-up the following season.
8950 History & Background
The Case IH 8950 was introduced in 1994 as part of the updated 8900 series, providing an upgrade over previous models with increased horsepower and enhanced features. It represented a significant step forward in tractor technology for Case IH, offering farmers a reliable and powerful machine for a variety of agricultural tasks. While it did not receive any major redesigns during its production run, its popularity cemented its place as a valued workhorse in modern farming.
Frequently Asked Questions
Which water pump is suitable for the Case IH 8950?
The 3132739R94 - Water pump is a recommended replacement for the Case IH 8950, ensuring optimal engine cooling performance.
Which PTO disc is compatible with the Case IH 8950?
For the Case IH 8950, the 381490R1 - Disc, PTO is a suitable replacement part to maintain proper power take-off function.

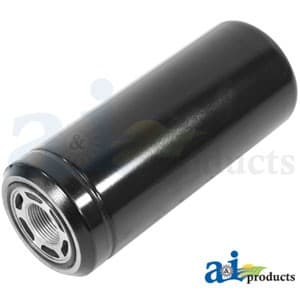

What transmission filter is recommended for the Case IH 8950?
The 1346028C1 - Filter, Transmission Element is recommended for maintaining the hydraulic system of your Case IH 8950 tractor.
What are some common replacement parts for the Case IH 8950?
Several common replacement parts for the Case IH 8950 include the 527658R91 - Tie Rod, Short, ST553 - Bearing, Pilot (sealed), 1966125C1 - Ball Joint (RH), WL1200 - Work Lamp, LED, Flood, Rectangle, 87271837 - Switch, Flasher Control, and various 128483A1 - O-Ring seals.
