Case IH 5230 Tractor Parts
Case IH 5230 Tractor parts in stock. Quality OEM and aftermarket replacement parts with fast shipping and competitive prices.
The Case IH 5230 tractor, manufactured from 1994 to 1997, was a popular utility tractor known for its reliability and versatility. Powered by a 78 horsepower, 4-cylinder diesel engine, it provided ample power for various farming tasks. Farmers appreciated the 67 PTO horsepower for running implements and the comfortable cab, making it a dependable workhorse.
About the 5230
The Case IH 5230 was introduced as part of the Maxxum series, a line of tractors designed for versatility and performance in a variety of agricultural applications. Production ran from 1994 to 1997. The 5230 is powered by a Case IH 4-cylinder diesel engine, producing approximately 78 engine horsepower with a displacement of 239 cubic inches. It features a mechanical transmission, offering 16 forward and 8 reverse speeds, providing a range of options for different tasks. The independent PTO delivers 67 horsepower, with both 540 and 1000 RPM options available. The hydraulic system has a capacity of around 17.7 GPM, with two standard remote valves to power hydraulic implements. Its category II 3-point hitch can lift approximately 4629 lbs. Farmers utilized the 5230 in row crop applications, hay production, livestock operations, and light tillage. It distinguished itself from other Maxxum models with its specific horsepower rating and options package, fitting into the mid-range utility tractor segment.
5230 Specifications
| Engine | Case IH 78 HP Diesel |
|---|---|
| PTO HP | 67 HP @ 540/1000 RPM |
| Transmission | Mechanical 16F/8R |
| Hydraulics | 17.7 GPM, 2 remotes |
| 3-Point Hitch | Category II, 4629 lbs |
| Fuel Capacity | 32 gallons |
| Weight | 8,622 lbs |
| Years Produced | 1994-1997 |
5230 Maintenance Tips
- Check and change the engine oil and filter every 250 hours, using the recommended oil type and filter.
- Inspect and maintain the hydraulic system regularly, checking for leaks and ensuring the hydraulic fluid is clean and at the proper level. Replace the hydraulic filter according to the manufacturer's recommendations.
- Periodically inspect and clean the fuel system, including the fuel filter, to prevent fuel contamination and ensure optimal engine performance. Use fuel additives as needed to prevent gelling in cold weather.
- When storing the tractor for extended periods, drain the fuel tank or add a fuel stabilizer to prevent fuel degradation and rust formation. Disconnect the battery and store it in a cool, dry place.
5230 History & Background
The Case IH 5230 was launched in 1994 as a component of the Maxxum series, providing farmers with a reliable and versatile utility tractor option. No major updates or redesigns occurred during its production run. It became a respected tractor in the market, known for its balance of power, features, and affordability.
Frequently Asked Questions
Which ignition switch is compatible with the Case IH 5230?
For the Case IH 5230, the 282775A1 - Switch, Ignition is a suitable replacement.
What PTO control cable is recommended for the 5230?
The 120557A2 - PTO Control Cable is a direct fit for the 5230 model.
What oil filter fits the 5230?
For the Case IH 5230, the LF3349 - Filter, Lube, Full-Flow Spin-On (QTY 12) is a recommended replacement.
What are common replacement parts for the Case IH 5230?
For routine maintenance and common repairs on the Case IH 5230, consider stocking up on items such as the LF3349 - Filter, Lube, Full-Flow Spin-On (QTY 12), a 3132428R2 - Filter, Fuel, or a 87681147 - Belt, Fan. Other frequently replaced items include various O-rings like the 238-5011 - O-Ring, 1997129C1 - Plate, Friction, Transmission, and a WL6481L - Headlight, LED, LH, Hi / Low.

SK473 - Piston Liner Kit
SKU: SK473
51 in stock

651818R91 - BEARING
SKU: 651818R91
457 in stock

FF214J - Spin-On (QTY 1) Fuel Filter
SKU: FF214J
Out of stock

ZP0750125010 - Ball Joint
SKU: ZP0750125010
303 in stock

T103767 - Tie Rod Clamp
SKU: T103767
24 in stock

T102913 - Steering Cylinder Cylinder End
SKU: T102913
72 in stock

N14388 - Cylinder End (LH)
SKU: N14388
32 in stock

N14377 - Cylinder End
SKU: N14377
303 in stock

D149730 - Cylinder End (LH)
SKU: D149730
69 in stock

D149728 - Cylinder End (RH)
SKU: D149728
143 in stock

9968017 - Zinc 8.8 M24X1.5 MFD Steering Cylinder RH Thread Jam Nut
SKU: 9968017
31 in stock

81878551 - Zinc 8.8 M24X1.5 MFD Steering Cylinder LH Thread Jam Nut
SKU: 81878551
Out of stock

652080R91 - Inner Cone
SKU: 652080R91
457 in stock

3134823R2 - Power Steering Cylinder End
SKU: 3134823R2
6 in stock

3057055R91 - Inner Cone
SKU: 3057055R91
457 in stock

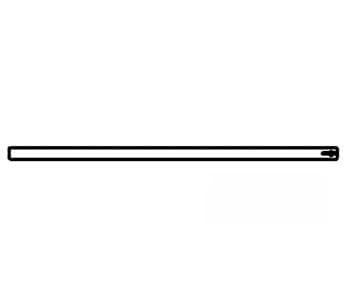

1534224C1 - Tie Rod Tube
SKU: 1534224C1
49 in stock

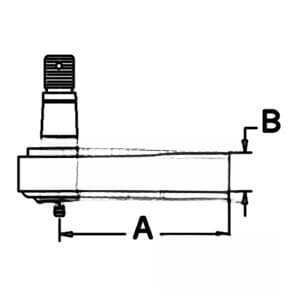

1531204C1 - Short Tie Rod
SKU: 1531204C1
45 in stock

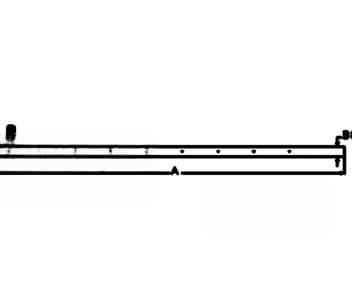

1531203C1 - Long Tie Rod
SKU: 1531203C1
46 in stock

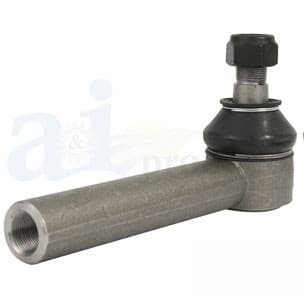

126145A1 - RH Ball Joint
SKU: 126145A1
143 in stock

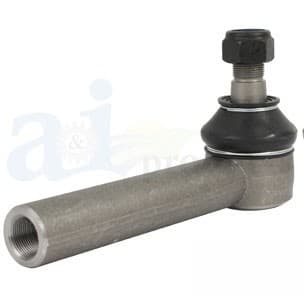

126144A1 - Ball Joint (LH)
SKU: 126144A1
69 in stock

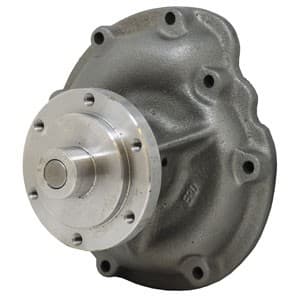

2852114 - Water Pump
SKU: 2852114
53 in stock

287066 - Tapered Bearing Cup
SKU: 287066
118 in stock

WL6482R - Hi / Low RH LED Headlight
SKU: WL6482R
207 in stock

WL6481L - Hi / Low LH LED Headlight
SKU: WL6481L
214 in stock
