Case IH 454 Tractor Parts
Case IH 454 Tractor parts in stock. Quality OEM and aftermarket replacement parts with fast shipping and competitive prices.
The Case IH 454 tractor, manufactured from 1972 to 1975, was a reliable workhorse powered by a 44 HP diesel engine. With a PTO horsepower rating of approximately 39 HP, the 454 proved popular for its versatility in various farming tasks. Farmers appreciated its robust build and ease of operation, making it a staple in fields across the country.
About the 454
The Case IH 454 was introduced in 1972 as part of the International Harvester (IH) line, later becoming Case IH after the merger. Production continued through 1975. It was powered by an IH BD-154 4-cylinder diesel engine, producing approximately 44 engine horsepower with a displacement of 154 cubic inches. This engine delivered ample power for a variety of farm tasks. The transmission was typically a gear-type with 8 forward and 2 reverse speeds, providing a good range for field work and transport. The PTO delivered approximately 39 horsepower at 540 RPM. The hydraulic system had a capacity of around 7.5 GPM, powering implements efficiently. It featured a Category I 3-point hitch. Common applications included row crop work, hay baling, livestock feeding, and light tillage. What distinguished the 454 from other models in the lineup was its size and horsepower, placing it in a sweet spot for farmers needing a capable but not overly large tractor for a wide range of tasks. It was a step up from smaller utility tractors but more economical than larger row-crop machines.
454 Specifications
| Engine | International Harvester BD-154 44 HP Diesel |
|---|---|
| PTO HP | 39 HP @ 540 RPM |
| Transmission | Gear, 8 forward and 2 reverse speeds |
| Hydraulics | 7.5 GPM, 1-2 remotes |
| 3-Point Hitch | Category I, 2,800 lbs lift capacity |
| Fuel Capacity | 16 gallons |
| Weight | 4,275 lbs |
| Years Produced | 1972-1975 |
454 Maintenance Tips
- Engine Oil & Filter: Change the engine oil and filter every 250 hours of operation using a high-quality oil meeting the manufacturer's specifications. Regular oil changes are crucial for engine longevity.
- Hydraulic System: Check the hydraulic fluid level regularly and change the hydraulic filter every 500 hours. Use only the recommended hydraulic fluid type to prevent damage to the hydraulic components.
- Fuel System: Use clean, high-quality fuel and inspect the fuel filter regularly. Drain any water or sediment from the fuel tank to prevent fuel system issues, especially in colder weather.
- Seasonal Storage: Before storing the tractor for the off-season, stabilize the fuel, change the engine oil and filter, and grease all lubrication points. Disconnect the battery and store it in a cool, dry place.
454 History & Background
The Case IH 454 was introduced in 1972 as part of the International Harvester lineup, offering a reliable and versatile tractor option for farmers. While there weren't major redesigns during its production run, it maintained a reputation as a dependable machine. The 454 played a significant role in providing accessible power for small to medium-sized farming operations.
Frequently Asked Questions
Which water pump fits the Case IH 454?
For the Case IH 454 tractor, we recommend the 3132739R94 - Water pump.
What PTO clutch disc is recommended for the Case IH 454?
The recommended PTO clutch disc for the Case IH 454 is the 401716R2 - Disc, PTO Clutch.
Which starter solenoid fits the Case IH 454?
The appropriate starter solenoid for the Case IH 454 is the 65478C1 - Starter Solenoid.
What are common replacement parts for the Case IH 454?
Key replacement items for the Case IH 454 often include the 3044506R1 - Filter, Fuel, a 527658R91 - Tie Rod, Short, the ST553 - Bearing, Pilot (sealed), a 530103R91 - Seal, and a 1500626C92 - Cap, Radiator w/ Cover (10 lb.).

VTK179 - Valve Train Kit
SKU: VTK179
1 in stock

SW756 - Cylinder Liner
SKU: SW756
5 in stock

SRK724 - Liner Sealing Ring Kit
SKU: SRK724
20 in stock

SK473 - Piston Liner Kit
SKU: SK473
51 in stock

C5NN3A300C - Front Drag Link End
SKU: C5NN3A300C
113 in stock

67529C1 - Tie Rod Tube
SKU: 67529C1
248 in stock

652080R91 - Inner Cone
SKU: 652080R91
457 in stock

65082C91 - Long Tie Rod
SKU: 65082C91
22 in stock

65079C91 - Long Tie Rod
SKU: 65079C91
213 in stock

65077C91 - Long Tie Rod
SKU: 65077C91
36 in stock

65074C91 - Long Tie Rod
SKU: 65074C91
16 in stock

612884R1 - Hub Cap
SKU: 612884R1
46 in stock

530104R91 - Seal
SKU: 530104R91
881 in stock

527658R91 - Short Tie Rod
SKU: 527658R91
237 in stock

43747D - Tie Rod Clamp
SKU: 43747D
403 in stock

405584R2 - Axle Bolt
SKU: 405584R2
68 in stock

379327R91 - Tie Rod End
SKU: 379327R91
19 in stock

379326R91 - Tie Rod End
SKU: 379326R91
113 in stock

356540R91 - Short Tie Rod
SKU: 356540R91
72 in stock

3129380R2 - Long Tie Rod
SKU: 3129380R2
9 in stock

3116408R1 - Tie Rod Tube
SKU: 3116408R1
29 in stock

3057055R91 - Inner Cone
SKU: 3057055R91
457 in stock

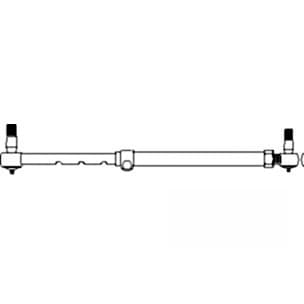

223327 - Complete Tie Rod Assembly
SKU: 223327
34 in stock

223326 - Complete Tie Rod Assembly
SKU: 223326
74 in stock
