Case IH 400-FARMALL Tractor Parts
Replacement parts for the Case IH 400-FARMALL Tractor. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The Case IH 400 Farmall tractor, manufactured from 1995 to 1999, was a versatile machine powered by a Cummins 5.9L diesel engine, delivering approximately 95 horsepower. Known for its reliability and ease of operation, the 400 Farmall was a popular choice among farmers for its strong PTO horsepower and adaptable use in various agricultural tasks.
About the 400 FARMALL
The Case IH 400 Farmall was introduced in 1995 as part of the Farmall series, filling a need for a mid-range utility tractor. Production continued until 1999. It features a Cummins 5.9L 6-cylinder diesel engine, producing around 95 engine horsepower. The engine has a displacement of 359 cubic inches. Transmission options include a standard gear transmission with multiple speeds forward and reverse to tailor to many jobs. The PTO horsepower is rated at approximately 80 HP, with a 540 RPM PTO speed. Hydraulic capacity is roughly 20 GPM, providing ample power for implements. The 3-point hitch is typically a Category II, capable of lifting around 4,000 lbs. The 400 Farmall found applications in row crop operations, hay baling, livestock management, and light tillage. Its size and power positioned it between smaller utility tractors and larger row crop models, offering a balance of maneuverability and capability making it a solid choice for a broad range of operations.
400 FARMALL Specifications
| Engine | Cummins 5.9L 95 HP Diesel |
|---|---|
| PTO HP | 80 HP @ 540 RPM |
| Transmission | Gear, Multiple Speeds Forward/Reverse |
| Hydraulics | 20 GPM, 2-3 remotes |
| 3-Point Hitch | Category II, 4000 lbs lift capacity |
| Fuel Capacity | 30 gallons |
| Weight | 8,000 lbs |
| Years Produced | 1995-1999 |
400 FARMALL Maintenance Tips
- Engine Oil & Filter: Change the engine oil and filter every 250 hours of operation, using a high-quality diesel engine oil that meets the manufacturer's specifications.
- Hydraulic System: Inspect hydraulic fluid levels and filters regularly. Replace hydraulic filters every 500 hours or annually, whichever comes first, to prevent contamination and maintain optimal performance.
- Fuel System: Use clean, high-quality diesel fuel and replace the fuel filter every 250 hours to prevent fuel system issues. Drain water from the fuel/water separator regularly.
- Seasonal Storage: Before storing the tractor for the off-season, fill the fuel tank to prevent condensation. Disconnect the battery and store it in a cool, dry place. Grease all fittings and lubricate exposed metal surfaces to prevent rust.
400 FARMALL History & Background
The Case IH 400 Farmall was launched in 1995, continuing the legacy of the Farmall name. This model retained the Farmall series' reputation for reliability and operator-friendliness. It solidified the Farmall series as a mainstay in general purpose farming and continues to be a favorite for small to medium sized operations.
Frequently Asked Questions
Which replacement muffler is compatible with the 400 FARMALL?
The 403551R1 - Muffler is a suitable replacement for the 400 FARMALL.
What PTO rear seal is recommended for the 400 FARMALL?
The 358812R91 - Seal, PTO Rear is a common replacement component for this model.

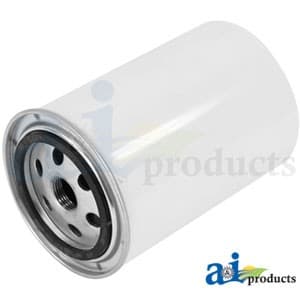

What oil filter fits the 400 FARMALL?
The A146696 - Filter, Engine Oil is an appropriate oil filter for the 400 FARMALL.
What are common parts needed for the 400 FARMALL?
Commonly needed parts include the 21A9R - Tune Up Kit, 1963810C2 - Brake Disc, Heavy Duty, D25826 - Cap, Radiator (4 lb.), 87538419 - Seal, Tie Rod Dust, and 69789C91 - Bearing, Release (sealed).

A29991 - Muffler
SKU: A29991
2 in stock

A20494 - Muffler
SKU: A20494
15 in stock

ZCK05 - Basic (Zenith) Carburetor Kit
SKU: ZCK05
177 in stock

VTK223 - Valve Train Kit
SKU: VTK223
4 in stock

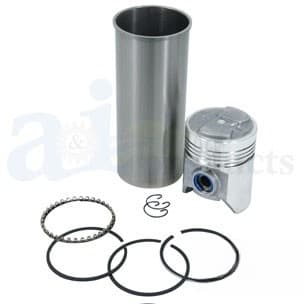

SK271 - Piston Liner Kit
SKU: SK271
44 in stock

SD152 - Cylinder Liner
SKU: SD152
11 in stock

651818R91 - BEARING
SKU: 651818R91
457 in stock

652080R91 - Inner Cone
SKU: 652080R91
457 in stock

60381 - Tie Rod Boot
SKU: 60381
249 in stock

48704DA - Wheel Hub Seal
SKU: 48704DA
56 in stock

3057055R91 - Inner Cone
SKU: 3057055R91
457 in stock

REF200 - Headlamp Reflector
SKU: REF200
13 in stock

GC200 - Glass Headlight Lens
SKU: GC200
213 in stock

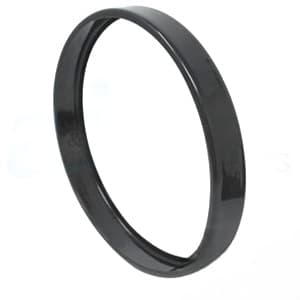

CLP200 - Headlamp Clamp
SKU: CLP200
13 in stock

529068 - Bulb
SKU: 529068
115 in stock

45640DB - Headlamp Assembly (6 Volt)
SKU: 45640DB
32 in stock

1156L24 - Replaces Bulb #1156 (2 Pack) 2400 Lumens LED Bulb
SKU: 1156L24
56 in stock

1156-LED - Replaces Bulb #1156 (2 Pack) LED; 600 Lumens Bulb
SKU: 1156-LED
127 in stock

OK223 - Major Engine Overhaul Kit
SKU: OK223
Out of stock

IK281 - In Frame Engine Overhaul Kit
SKU: IK281
Out of stock

IK223 - In Frame Engine Overhaul Kit
SKU: IK223
Out of stock

128190C91 - Hydraulic Pump
SKU: 128190C91
7 in stock

363016R1 - Rear Rim Wheel Clamp
SKU: 363016R1
91 in stock

51502D - Fender Spacers
SKU: 51502D
1144 in stock
