Case IH 340 Tractor Parts

Shop Case IH 340 Tractor parts. From filters and fluids to blades and belts, we carry the replacements you need to keep running.

The Case IH 340 tractor, manufactured from 2015 to 2019, is a reliable workhorse powered by a FPT 3.4L diesel engine delivering approximately 74 horsepower. Known for its robust build and efficient performance, the 340 boasts a PTO horsepower of around 62, making it popular among farmers for its versatility in handling various tasks. It’s a standout performer in the compact utility tractor class.

About the 340

The Case IH 340 was introduced as part of the Farmall series, filling a crucial niche in the compact utility tractor market from 2015 to 2019. This model is equipped with a FPT F5C 3.4-liter 4-cylinder diesel engine, producing around 74 horsepower. The engine's design provides a good balance of power and fuel efficiency for varied farm tasks. Transmission options include a mechanical 12x12 shuttle transmission, offering a suitable range of speeds for different field conditions. The 340 delivers approximately 62 PTO horsepower, available at the standard 540 RPM. The hydraulic system has a flow rate of around 17.2 GPM, powering a 3-point hitch with a lift capacity of approximately 3,307 lbs, placing it in Category II. Commonly used in row crop applications for tasks such as planting and spraying, as well as in hay production and livestock operations for feeding and moving materials, the Case IH 340 stands out from other models due to its enhanced comfort features and advanced technology such as electronic hitch control, making it user-friendly and efficient.

340 Specifications

EngineFPT F5C 74 HP 3.4L Diesel
PTO HP62 HP @ 540 RPM
TransmissionMechanical Shuttle 12x12
Hydraulics17.2 GPM, 2 remotes
3-Point HitchCategory II, 3,307 lbs
Fuel Capacity22.5 gallons
Weight6,106 lbs
Years Produced2015-2019

340 Maintenance Tips

  • Check and change the engine oil and filter every 250 hours using the recommended Case IH oil specification for optimal engine performance and longevity.
  • Regularly inspect and maintain the hydraulic system by checking fluid levels and replacing the hydraulic filter every 500 hours to prevent contamination and ensure smooth operation of implements.
  • Drain water and sediment from the fuel tank and replace the fuel filter annually, especially before seasonal storage, to prevent fuel system issues and maintain efficient combustion.
  • Before storing the tractor for the off-season, thoroughly clean it, grease all lubrication points, and disconnect the battery to prevent corrosion and ensure it's ready for use when needed.

340 History & Background

The Case IH 340 was introduced in 2015 as part of the updated Farmall series, designed to provide a modern, efficient, and comfortable tractor option for smaller farms and diverse agricultural applications. While it didn't undergo major redesigns during its production run, it represented a significant step forward in the compact utility tractor segment with its advanced features and user-friendly design, contributing to Case IH's legacy of providing reliable farm equipment.

Frequently Asked Questions

Which ignition coil fits the Case IH 340?

The 396546R93 - Ignition Coil is recommended. It can be used for 6 Volt systems without an external resistor or 12 Volt systems with an external resistor.

Which PTO rear seal is compatible with the Case IH 340?

The 358812R91 - Seal, PTO Rear is the correct replacement for this model, ensuring a secure seal for your power take-off.

What brake disc is recommended for the Case IH 340?

For reliable braking performance, the 1875456C1 - disc, brake is an ideal replacement part for your Case IH 340.

What are some common replacement parts for the Case IH 340?

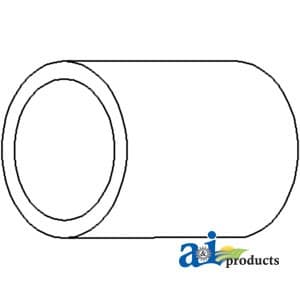

Regularly needed components for the Case IH 340 include the 21A9R - Tune Up Kit, a 49923D - Screen, Fuel Filter, a 48827DA - Radiator Hose, Lower, the 43747D - Clamp, Tie Rod, a 374033R1 - Disc, Clutch Inner, and a 108120R92 - Thermostat (180°). Keeping these parts fresh helps maintain optimal tractor operation.

Showing 1-24 of 219 products
