Massey Ferguson F40 Tractor Parts

Replacement parts for the Massey Ferguson F40 Tractor. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.

The Massey Ferguson F40, manufactured from 1958 to 1960, was a versatile row-crop tractor popular for its reliability and simplicity. Typically powered by a Continental gas engine producing around 38 horsepower, it delivered approximately 32 PTO horsepower. Its robust design and efficient operation made it a favorite for small to medium-sized farms, excelling in tasks like plowing, cultivating, and operating PTO-driven implements.

About the F40

The Massey Ferguson F40 was introduced in 1958 as a replacement for the TO-35 and was produced until 1960. It was a popular choice among farmers due to its robust design and versatility. The F40 typically featured a Continental Z134 gasoline engine. This engine delivered around 38 engine horsepower and had a displacement of 134 cubic inches. The transmission was typically a 4-speed manual gearbox, providing a good range of speeds for various field operations. The independent PTO (Power Take-Off) delivered approximately 32 horsepower at 540 RPM, allowing for the operation of various implements such as mowers, balers, and tillers. The hydraulic system provided a flow rate of around 3.5 GPM, suitable for operating implements and loaders. It features a category I 3-point hitch. The F40 was commonly used for various farming applications, including row crop work, hay production, and general farm tasks. What distinguished it from other models in the Massey Ferguson lineup was its compact size, reliable engine, and affordable price point, making it an accessible tractor for smaller farms.

F40 Specifications

EngineContinental Z134 38 HP 134ci Gas
PTO HP32 HP @ 540 RPM
Transmission4-Speed Manual
Hydraulics3.5 GPM, 0 remotes
3-Point HitchCategory I, 1850 lbs Lift Capacity
Fuel Capacity14 gallons
Weight2870 lbs
Years Produced1958-1960

F40 Maintenance Tips

  • Engine Oil & Filter: Change the engine oil and filter every 125 hours of operation. Use a quality oil meeting API standards for gasoline engines, and a filter with the correct micron rating to prevent engine wear.
  • Hydraulic System: Inspect the hydraulic fluid level regularly and check for leaks. Replace the hydraulic filter every 250 hours or annually to maintain optimal hydraulic performance.
  • Fuel System: Use fresh, clean gasoline and consider adding a fuel stabilizer if the tractor will be stored for an extended period. Check the fuel filter regularly and replace it as needed to prevent fuel line clogging.

F40 History & Background

The Massey Ferguson F40 was introduced in 1958 as a successor to the Ferguson TO-35, continuing the legacy of reliable and versatile tractors. While there weren't any major redesigns during its short production run, the F40 played a significant role in the transition to the Massey Ferguson brand and solidified their presence in the agricultural market.

Frequently Asked Questions

Which piston liner kit is suitable for the Massey Ferguson F40?

The SK105 - Piston Liner Kit is designed as a direct replacement for models like the F40, ensuring optimal engine performance.

What PTO output shaft seal is recommended for the Massey Ferguson F40?

For the PTO output shaft, the 1077452M1 - Seal, PTO Output Shaft Seal provides a reliable replacement for the Massey Ferguson F40.

What oil filter fits the F40?

For the F40, the 1014219M91 - Filter, Oil (Cartridge) is an appropriate replacement to maintain engine cleanliness.

What are common replacement parts for the Massey Ferguson F40?

Showing 1-24 of 171 products
VTK258 - Valve Train Kit (Std)
Out of Stock

VTK258 - Valve Train Kit (Std)

SKU: VTK258

$115.67

Out of stock

SRK715 - 2 Oring Liner Sealing Ring Kit

SRK715 - 2 Oring Liner Sealing Ring Kit

SKU: SRK715

$8.21

20 in stock

SK105 - Piston Liner Kit

SK105 - Piston Liner Kit

SKU: SK105

$117.72

72 in stock

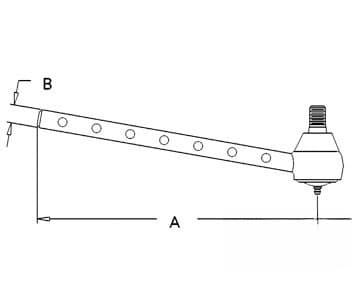

186236M91 - Long (RH) Tie Rod

186236M91 - Long (RH) Tie Rod

SKU: 186236M91

$34.49

15 in stock

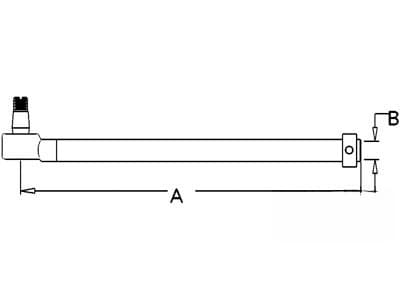

182510M91 - Tie Rod (LH) Tube

182510M91 - Tie Rod (LH) Tube

SKU: 182510M91

$46.00

26 in stock

OK259 - Major Engine Overhaul Kit
Out of Stock

OK259 - Major Engine Overhaul Kit

SKU: OK259

$854.19

Out of stock

IK259 - In Frame Engine Overhaul Kit
Out of Stock

IK259 - In Frame Engine Overhaul Kit

SKU: IK259

$581.47

Out of stock

189427M92 - Hydraulic Pump Valve Assembly

189427M92 - Hydraulic Pump Valve Assembly

SKU: 189427M92

$17.72

14 in stock

184473M93 - Hydraulic Pump

184473M93 - Hydraulic Pump

SKU: 184473M93

$481.78

11 in stock

181043M1 - Hydraulic Pump Piston

181043M1 - Hydraulic Pump Piston

SKU: 181043M1

$55.22

4 in stock

180933M1 - Hydraulic Lift Pump Follower

180933M1 - Hydraulic Lift Pump Follower

SKU: 180933M1

$11.21

12 in stock

180926M1 - Hydraulic Lift Pump Coupling

180926M1 - Hydraulic Lift Pump Coupling

SKU: 180926M1

$62.21

7 in stock

180925M2 - Hydraulic Pump Rear Camblock

180925M2 - Hydraulic Pump Rear Camblock

SKU: 180925M2

$39.32

69 in stock

180924M2 - Hydraulic Pump Front Camblock

180924M2 - Hydraulic Pump Front Camblock

SKU: 180924M2

$32.28

89 in stock

1000251M1 - Hydraulic Pump Needle Bearing

1000251M1 - Hydraulic Pump Needle Bearing

SKU: 1000251M1

$7.11

41 in stock

RW12286 - Rear Wheel 12" x 28" 6 Loop Rim

RW12286 - Rear Wheel 12" x 28" 6 Loop Rim

SKU: RW12286

$266.79

181 in stock

RW10286 - Rear Wheel 10" x 28" Rim

RW10286 - Rear Wheel 10" x 28" Rim

SKU: RW10286

$164.03

219 in stock

PAR11284 - 4 Rail Power Adjust Wheel 11" X 28" Rim

PAR11284 - 4 Rail Power Adjust Wheel 11" X 28" Rim

SKU: PAR11284

$511.68

32 in stock

885741R3 - Front Wheel 4.5" X 16" Rim

885741R3 - Front Wheel 4.5" X 16" Rim

SKU: 885741R3

$116.88

146 in stock

535448M1 - Front Wheel 4.5" X 16" Rim

535448M1 - Front Wheel 4.5" X 16" Rim

SKU: 535448M1

$116.88

146 in stock

1883335M2 - Front Wheel 4.5" X 16" Rim

1883335M2 - Front Wheel 4.5" X 16" Rim

SKU: 1883335M2

$116.88

146 in stock

1883335M1 - Front Wheel 4.5" X 16" Rim

1883335M1 - Front Wheel 4.5" X 16" Rim

SKU: 1883335M1

$116.88

146 in stock

180707M92 - Fender w/ Bracket (RH/LH)
Out of Stock

180707M92 - Fender w/ Bracket (RH/LH)

SKU: 180707M92

$154.78

Out of stock

1077452M1 - PTO Output Shaft Seal Seal

1077452M1 - PTO Output Shaft Seal Seal

SKU: 1077452M1

$8.61

241 in stock
