Massey Ferguson 9240 Tractor Parts

Find parts for your Massey Ferguson 9240 Tractor. We stock OEM and quality aftermarket replacements ready to ship.

The Massey Ferguson 9240 tractor, produced from 1993 to 1995, was a popular choice for farmers needing a reliable mid-range machine. Powered by a robust Perkins 1006-6T 105 HP engine, it delivered a dependable 95 PTO horsepower. Its blend of power and versatility made it well-suited for a variety of agricultural tasks.

About the 9240

The Massey Ferguson 9240 was introduced in 1993 and remained in production until 1995. This tractor is powered by a Perkins 1006-6T six-cylinder turbocharged diesel engine producing 105 horsepower with a displacement of 365 cubic inches (6.0 liters). The 9240 features a synchromesh transmission with 12 forward and 4 reverse gears. Its PTO delivers 95 horsepower at both 540 and 1000 RPM, catering to various implement requirements. The hydraulic system has a capacity of approximately 14.5 GPM, providing ample power for implements and attachments. The 3-point hitch is a Category II, offering a lift capacity of around 5,300 lbs. The 9240 found common applications in row crop operations, hay production, and livestock farming. Its power and features filled a gap between smaller utility tractors and larger row-crop models in Massey Ferguson's lineup, appealing to farmers with medium-sized acreage and diverse needs.

9240 Specifications

EnginePerkins 1006-6T 105 HP 365 ci Diesel
PTO HP95 HP @ 540/1000 RPM
TransmissionSynchromesh 12F/4R
Hydraulics14.5 GPM, 2 remotes
3-Point HitchCategory II, 5300 lbs
Fuel Capacity34.3 gallons
Weight9,480 lbs
Years Produced1993-1995

9240 Maintenance Tips

  • Engine Oil & Filter: Change the engine oil and filter every 250 hours using the recommended oil type (typically 15W-40) and a quality filter like a Wix 51794 or equivalent.
  • Hydraulic System: Inspect hydraulic fluid levels regularly and change the hydraulic filter every 500 hours. Use only recommended hydraulic fluid to prevent damage to seals and components.
  • Fuel System: Regularly drain water and sediment from the fuel filter/separator. Use a fuel stabilizer during seasonal storage to prevent fuel degradation and injector clogging.
  • Cooling System: Check coolant level regularly, inspect hoses, and flush and replace coolant every 2 years, using a 50/50 mix of antifreeze and distilled water.

9240 History & Background

The Massey Ferguson 9240 was launched in 1993 as part of the 9200 series, offering a balance of power and features for mid-sized farms. It represented a solid, mechanically-driven tractor appreciated for its reliability and ease of maintenance, contributing to Massey Ferguson's reputation for durable agricultural equipment.

Frequently Asked Questions

Which alternator is compatible with the Massey Ferguson 9240?

The 71339975 - Alternator, DR/ALT is a heavy-duty option that fits the Massey Ferguson 9240.

What replacement seat options are available for the Massey Ferguson 9240?

A comfortable replacement option for the Massey Ferguson 9240 is the F20ST3000 - Seat, F20 Series, Black Vinyl, which includes slide tracks, armrests, headrest, OPS, and seat belt.

What oil filter fits the 9240?

For the Massey Ferguson 9240, the LF3000J - Filter, Lube, Combination is a suitable replacement.

What are common parts needed for the 9240?

Essential maintenance and wear parts for the Massey Ferguson 9240 often include the FF5461J - Filter, Fuel, HF6555 - Filter, Hydraulic, Spin-On, and WF2070J - Filter, Water, Spin-On. Other frequently replaced items are the 828123M2 - Bearing, Flywheel, 3406992M91 - WIPER BLADE, and upgrading lighting with the WL1280 - Sealed Beam, LED, Hi / Low.

Showing 1-24 of 56 products
L44610-P - Tapered Bearing Cup

L44610-P - Tapered Bearing Cup

SKU: L44610-P

$6.69

282 in stock

L44610-I - Tapered Bearing Cup

L44610-I - Tapered Bearing Cup

SKU: L44610-I

$3.04

434 in stock

WL1280 - Hi / Low LED Sealed Beam

WL1280 - Hi / Low LED Sealed Beam

SKU: WL1280

$108.33

135 in stock

WL1275 - Hi / Low LED Sealed Beam

WL1275 - Hi / Low LED Sealed Beam

SKU: WL1275

$108.33

147 in stock

961866M1 - Head Light Bulb

961866M1 - Head Light Bulb

SKU: 961866M1

$4.97

209 in stock

908543M1 - Bulb- 12V 21-5W

908543M1 - Bulb- 12V 21-5W

SKU: 908543M1

$3.40

5 in stock

621235M1 - Bulb - 12V 21W (1156)

621235M1 - Bulb - 12V 21W (1156)

SKU: 621235M1

$2.83

115 in stock

3715144M92 - Pipe Type Amber Rotating Beacon

3715144M92 - Pipe Type Amber Rotating Beacon

SKU: 3715144M92

$71.83

651 in stock

3405180M1 - Halogen (12 Volt) Light Bulb

3405180M1 - Halogen (12 Volt) Light Bulb

SKU: 3405180M1

$6.27

127 in stock

1693944M93 - RH / LH Dip Headlamp

1693944M93 - RH / LH Dip Headlamp

SKU: 1693944M93

$45.01

26 in stock

1628494M1 - Lamp Bulb H3 (12V 55W)

1628494M1 - Lamp Bulb H3 (12V 55W)

SKU: 1628494M1

$6.71

151 in stock

90001247 - Rear & Side (RH) Seal

90001247 - Rear & Side (RH) Seal

SKU: 90001247

$80.60

81 in stock

3406992M91 - WIPER BLADE

3406992M91 - WIPER BLADE

SKU: 3406992M91

$13.91

63 in stock

70923559 - O-Ring

70923559 - O-Ring

SKU: 70923559

$2.69

191 in stock

832190M1 - MASSEY FERGUSON

832190M1 - MASSEY FERGUSON

SKU: 832190M1

$3.04

434 in stock

72161817 - Transmission Clutch Driving Plate

72161817 - Transmission Clutch Driving Plate

SKU: 72161817

$40.94

94 in stock

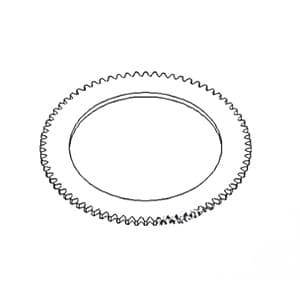

72161788 - Over/Under Transmission Separator Plate

72161788 - Over/Under Transmission Separator Plate

SKU: 72161788

$15.04

63 in stock

1850909M91 - Differential Carrier (RH) Bearing

1850909M91 - Differential Carrier (RH) Bearing

SKU: 1850909M91

$104.58

46 in stock

71367887 - Lift Pump to Injection Pump Fuel Supply Line

71367887 - Lift Pump to Injection Pump Fuel Supply Line

SKU: 71367887

$24.42

35 in stock

71339975 - DR/ALT Alternator
Out of Stock

71339975 - DR/ALT Alternator

SKU: 71339975

$253.97

Out of stock

71308106 - Alternator Internal (Heavy Duty) Voltage Regulator

71308106 - Alternator Internal (Heavy Duty) Voltage Regulator

SKU: 71308106

$11.90

22 in stock

3713127M1 - 7 Pin (North America) Implement Lights Socket

3713127M1 - 7 Pin (North America) Implement Lights Socket

SKU: 3713127M1

$20.40

220 in stock

30-3130584 - 7 Pin (North America) Implement Lights Plug

30-3130584 - 7 Pin (North America) Implement Lights Plug

SKU: 30-3130584

$18.97

321 in stock

353433X1 - Stabilizer Pin Lock Washer

SKU: 353433X1

$0.44

524 in stock
