Massey Ferguson 8120 Tractor Parts
Shop Massey Ferguson 8120 Tractor parts. From filters and fluids to blades and belts, we carry the replacements you need to keep running.
The Massey Ferguson 8120, produced from 1996 to 1999, was a workhorse for farmers needing a reliable mid-range tractor. Powered by a Sisu 6.6L 120 HP diesel engine, it offered ample power for a variety of tasks. Its robust build and efficient PTO system, delivering 100 HP, made it a popular choice for haying, tillage, and general farm work.
About the 8120
The Massey Ferguson 8120 was introduced in 1996 as part of the 8100 series, a line of tractors designed to offer improved performance and comfort compared to previous Massey Ferguson models. Production continued until 1999. At its heart lies a Sisu 6.6L six-cylinder diesel engine, producing approximately 120 horsepower. This engine provides a displacement of 402 cubic inches and is known for its durability and fuel efficiency. The transmission is a 16-speed partial powershift, offering a good balance between precision and ease of use. The 8120 boasts a PTO horsepower of around 100 HP, available in both 540 and 1000 RPM options, making it versatile for different implements. Its hydraulic system delivers a flow rate of approximately 26 GPM to power implements and the steering system. The tractor features a Category II 3-point hitch, providing a lift capacity of around 7,800 lbs. Common farming applications for the 8120 include row crop cultivation, hay production, livestock feeding operations, and light tillage. Compared to smaller tractors in the Massey Ferguson lineup, the 8120 offers more power and hydraulic capacity, while being more agile than larger frame tractors making it an excellent all-around tractor for the medium size farm.
8120 Specifications
| Engine | Sisu 6.6L 120 HP Diesel |
|---|---|
| PTO HP | 100 HP @ 540/1000 RPM |
| Transmission | Partial Powershift, 16 Forward / 12 Reverse |
| Hydraulics | 26 GPM, 2-3 remotes |
| 3-Point Hitch | Category II, 7,800 lbs |
| Fuel Capacity | 48 gallons |
| Weight | 12,787 lbs |
| Years Produced | 1996-1999 |
8120 Maintenance Tips
- Engine Oil & Filter: Change engine oil and filter every 250 hours using a high-quality diesel engine oil and a genuine or reputable aftermarket filter.
- Hydraulic System: Inspect hydraulic oil levels regularly and change the hydraulic fluid and filter every 1200 hours or as recommended by the manufacturer to prevent contamination and maintain optimal performance.
- Fuel System: Use clean, high-quality diesel fuel and replace the fuel filter regularly, typically every 500 hours, to prevent fuel system issues and ensure efficient combustion.
- Seasonal Storage: Before storing the tractor for an extended period, fill the fuel tank to prevent condensation, add fuel stabilizer, and disconnect the battery to prevent discharge.
8120 History & Background
The Massey Ferguson 8120 was part of the 8100 series launched in the mid-1990s, representing a significant update to Massey Ferguson's tractor lineup. These tractors were designed to offer improved operator comfort and more modern features. The 8120 played a vital role in providing farmers with a reliable and versatile tractor for a variety of agricultural tasks.
Frequently Asked Questions
Which fuel filter is recommended for the Massey Ferguson 8120?
For the Massey Ferguson 8120, a recommended fuel filter is 1049939M1 - Filter, Diesel Fuel. This component ensures proper fuel system operation.
What replacement oil seal fits the MFWD hub carrier driveshaft on an 8120?
The Massey Ferguson 8120 MFWD hub carrier driveshaft uses the 3428064M1 - Oil Seal, MFWD Hub Carrier Driveshaft for a secure fit.
What is a compatible engine oil filter for the 8120?
A compatible engine oil filter for the Massey Ferguson 8120 is the 1447048M1 - Filter, Engine Oil (Spin-On). This spin-on filter provides reliable engine protection.
What are some common replacement parts for the Massey Ferguson 8120?
For routine maintenance and common replacements, consider the LF701 - Filter, Lube, Spin-On (QTY 12), 3638291M1 - Filter, Fuel, 1874535M3 - Switch w/ Keys, 180224M92 - Cap, Radiator, 1446935M1 - HEATER PLUG, and the 1447384M1 - Thermostat (180°).

U5MB0007B - set of 7) Main (.020" Bearing Set
SKU: U5MB0007B
1 in stock

U5MB0007A - set of 7) Main (.010" Bearing Set
SKU: U5MB0007A
3 in stock

U5MB0007 - set of 7) Main (Std Bearing Set
SKU: U5MB0007
27 in stock

U5LT0179 - Upper Gasket Set
SKU: U5LT0179
12 in stock

U5LB0153 - Lower without Seals Gasket Set
SKU: U5LB0153
10 in stock

3764286M1 - Tie Rod w/ Tube
SKU: 3764286M1
16 in stock

3764132M1 - Tie Rod w/ Tube
SKU: 3764132M1
18 in stock

3426851M2 - MFWD Hub Bearing & Cup
SKU: 3426851M2
27 in stock

3426255M1 - Tie Rod End
SKU: 3426255M1
303 in stock

339481X1 - Pinion Rear Input Bearing & Cup
SKU: 339481X1
6 in stock

3104945M1 - Tie Rod
SKU: 3104945M1
43 in stock

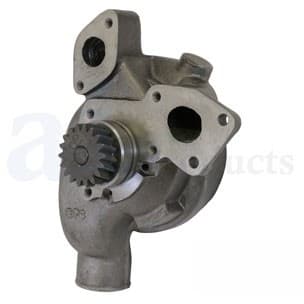

4222028M91 - Water Pump
SKU: 4222028M91
27 in stock

833083M1 - Needle Type
SKU: 833083M1
36 in stock

831225M1 - Oil Seal
SKU: 831225M1
386 in stock

391261X1 - BEARING
SKU: 391261X1
21 in stock

204220M1 - Ball Type
SKU: 204220M1
1272 in stock

WL6280 - Rectangle Flood / Spot Combo LED Work Lamp
SKU: WL6280
96 in stock

WL1280 - Hi / Low LED Sealed Beam
SKU: WL1280
135 in stock

WL1275 - Hi / Low LED Sealed Beam
SKU: WL1275
147 in stock

961866M1 - Head Light Bulb
SKU: 961866M1
209 in stock

908543M1 - Bulb- 12V 21-5W
SKU: 908543M1
5 in stock

621235M1 - Bulb - 12V 21W (1156)
SKU: 621235M1
115 in stock

3715144M92 - Pipe Type Amber Rotating Beacon
SKU: 3715144M92
651 in stock

3405180M1 - Halogen (12 Volt) Light Bulb
SKU: 3405180M1
127 in stock
