Massey Ferguson 593 Tractor Parts

Find parts for your Massey Ferguson 593 Tractor. We stock OEM and quality aftermarket replacements ready to ship.

The Massey Ferguson 593 tractor, produced from 1977 to 1982, was a popular choice among farmers due to its reliability and versatility. Powered by a Perkins AD4.236 64 HP diesel engine, it delivered ample power for a variety of tasks. With a PTO horsepower of around 54 HP, the 593 was well-suited for pulling implements and powering attachments, making it a valuable asset on any farm.

About the 593

The Massey Ferguson 593 was introduced in 1977 as part of the MF 500 series, replacing earlier models and offering improved performance and features. Production continued until 1982. The heart of the 593 is a Perkins AD4.236 four-cylinder diesel engine, displacing 236 cubic inches and delivering 64 horsepower. This engine was known for its durability and fuel efficiency. The tractor typically came equipped with an 8-speed manual transmission, providing a good range of speeds for different field conditions. The independent PTO delivers around 54 horsepower at 540 RPM. The hydraulic system offered a capacity of around 8 GPM, powering implements via two remote valves. It features a category II three-point hitch providing ample lift capacity for a variety of implements. The MF 593 was often used for row crop farming, hay production, livestock operations, and general tillage work. It distinguished itself from other models in the Massey Ferguson lineup through its balance of power, size, and features, making it a versatile and cost-effective option for many farmers.

593 Specifications

EnginePerkins AD4.236 64 HP Diesel
PTO HP54 HP @ 540 RPM
Transmission8-Speed Manual
Hydraulics8 GPM, 2 remotes
3-Point HitchCategory II, 3800 lbs lift capacity
Fuel Capacity17 gallons
Weight6400 lbs
Years Produced1977-1982

593 Maintenance Tips

  • Engine Oil and Filter: Change engine oil and filter every 250 hours using a high-quality diesel engine oil meeting API CF-4 or higher specifications.
  • Hydraulic System: Inspect hydraulic fluid levels regularly. Replace hydraulic filters every 500 hours or annually, whichever comes first, to prevent contamination.
  • Fuel System: Use clean, high-quality diesel fuel. Drain the fuel/water separator regularly to remove water and sediment that can damage the fuel injection system.
  • Seasonal Storage: Before storing the tractor for extended periods, fill the fuel tank to minimize condensation. Add fuel stabilizer to prevent fuel degradation and protect the fuel system. Consider greasing all fittings to prevent rust.

593 History & Background

The Massey Ferguson 593 was released in 1977 as part of the 500 series. It represented a step up in power and features compared to previous Massey Ferguson models in this size range. The 593 became a popular and reliable workhorse on farms across North America and globally.

Frequently Asked Questions

Which water pump is suitable for the Massey Ferguson 593?

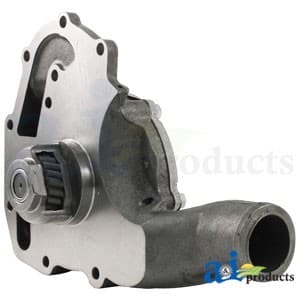

For the Massey Ferguson 593, a reliable replacement is the 4226913M91 - Water Pump.

What PTO shaft seal is used on the Massey Ferguson 593?

The 3699801M1 - Seal, PTO Shaft is designed for use in the Massey Ferguson 593.

What oil filter fits the 593?

A suitable lube filter for the Massey Ferguson 593 is the LF699J - Filter, Lube, Full-Flow Spin-On. Always verify the correct filter for your specific engine configuration.

Showing 1-24 of 53 products
523387M1 - Axle Lock Bolt w/ Shoulder

523387M1 - Axle Lock Bolt w/ Shoulder

SKU: 523387M1

$11.18

52 in stock

1000251M1 - Hydraulic Pump Needle Bearing

1000251M1 - Hydraulic Pump Needle Bearing

SKU: 1000251M1

$7.11

41 in stock

3902140M1 - REAR GAS STRUT

3902140M1 - REAR GAS STRUT

SKU: 3902140M1

$25.84

21 in stock

899377M1 - Front PTO Shaft Bearing

899377M1 - Front PTO Shaft Bearing

SKU: 899377M1

$23.86

51 in stock

3699801M1 - PTO Shaft Seal

3699801M1 - PTO Shaft Seal

SKU: 3699801M1

$21.00

98 in stock

3763384M91 - Sanden Style w/ Clutch (4708) New Compressor

3763384M91 - Sanden Style w/ Clutch (4708) New Compressor

SKU: 3763384M91

$360.79

32 in stock

3712526M1 - drier mtg. Hi & Lo Pressure Switch
Out of Stock

3712526M1 - drier mtg. Hi & Lo Pressure Switch

SKU: 3712526M1

$74.11

Out of stock

3712495M1 - Receiver Drier

3712495M1 - Receiver Drier

SKU: 3712495M1

$56.76

18 in stock

3383321M2 - Receiver Drier

3383321M2 - Receiver Drier

SKU: 3383321M2

$47.14

42 in stock

3383321M1 - Receiver Drier

3383321M1 - Receiver Drier

SKU: 3383321M1

$47.14

41 in stock

3310831M91 - W/ Wheels Blower Motor

3310831M91 - W/ Wheels Blower Motor

SKU: 3310831M91

$248.63

22 in stock

906811M1 - Differential Lock Clevis Boot

906811M1 - Differential Lock Clevis Boot

SKU: 906811M1

$3.71

6 in stock

886668M1 - Outer Input Housing Bearing

886668M1 - Outer Input Housing Bearing

SKU: 886668M1

$13.11

50 in stock

881162M2 - Rear Wheel Nut

881162M2 - Rear Wheel Nut

SKU: 881162M2

$2.43

50 in stock

1881931M91 - Half Shaft Axle Housing Bearing

1881931M91 - Half Shaft Axle Housing Bearing

SKU: 1881931M91

$67.49

12 in stock

1860959M1 - Brake Rod Boot

1860959M1 - Brake Rod Boot

SKU: 1860959M1

$5.97

266 in stock

1850909M91 - Differential Carrier (RH) Bearing

1850909M91 - Differential Carrier (RH) Bearing

SKU: 1850909M91

$104.58

46 in stock

4222043M1 - Freeze (2") Plug

4222043M1 - Freeze (2") Plug

SKU: 4222043M1

$2.69

32 in stock

3212V003 - Connecting Rod Bolt

3212V003 - Connecting Rod Bolt

SKU: 3212V003

$3.47

10 in stock

31434307 - Push Rod

31434307 - Push Rod

SKU: 31434307

$7.15

63 in stock

31434163 - Tappet

31434163 - Tappet

SKU: 31434163

$6.90

41 in stock

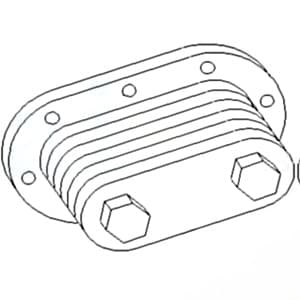

2486A217 - Oil Cooler

2486A217 - Oil Cooler

SKU: 2486A217

$322.04

10 in stock

2418F436 - Front Crankshaft Seal

2418F436 - Front Crankshaft Seal

SKU: 2418F436

$11.39

39 in stock

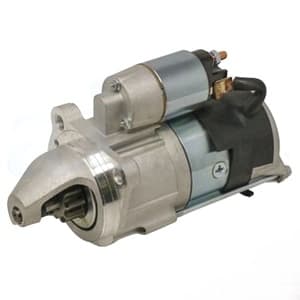

3821818M91 - NEW 10T 3.0KW Starter; 12V

3821818M91 - NEW 10T 3.0KW Starter; 12V

SKU: 3821818M91

$436.33

4 in stock
