Massey Ferguson 3050 Tractor Parts

3050 parts and accessories

The Massey Ferguson 3050 tractor, manufactured from 1987 to 1997, quickly became a favorite among farmers for its reliability and versatility. Powered by a Perkins 4.0L 71 HP diesel engine, it delivered dependable performance in various agricultural applications. With a PTO horsepower of around 63 HP, the MF 3050 was well-suited for powering implements from mowing to baling.

The Massey Ferguson 3050 was part of the popular 3000 series, produced from 1987 to 1997, known for its advanced features and robust design. This model features a Perkins 4.0 liter (244 cubic inch) four-cylinder diesel engine producing approximately 71 horsepower. The engine is a key factor in the tractor's dependable performance. Transmission options typically included a 12-speed synchro shuttle transmission, providing good speed control for varied tasks. The PTO delivers around 63 horsepower and is available in both 540 RPM and 1000 RPM options, enhancing its versatility. The hydraulic system boasts a capacity of around 11.1 GPM, adequate for operating implements. The 3-point hitch is a Category II, offering a lift capacity of approximately 4,630 lbs, enabling the tractor to handle a wide range of implements. The MF 3050 excels in row crop work, hay production, and livestock operations. It distinguishes itself from other tractors in its class with its comfortable cab (optional), power steering, and robust hydraulic system, providing a blend of power and ease of use.

Specifications

Engine	Perkins 4.0L 71 HP Diesel
PTO HP	63 HP @ 540/1000 RPM
Transmission	12-Speed Synchro Shuttle
Hydraulics	11.1 GPM, 2 remotes
3-Point Hitch	Category II, 4,630 lbs
Fuel Capacity	26.4 gallons
Weight	7,100 lbs
Years Produced	1987-1997

Maintenance Tips

Engine Oil & Filter: Change the engine oil and filter every 250 hours of operation using a high-quality oil that meets the manufacturer's specifications.
Hydraulic System: Regularly check hydraulic fluid levels and inspect for leaks. Replace the hydraulic filter every 500 hours or as recommended to prevent contamination and ensure optimal performance.
Fuel System: Use clean, high-quality diesel fuel. Drain the fuel/water separator regularly to prevent water from entering the fuel system, which can cause corrosion and damage to the fuel injectors and pump.
Seasonal Storage: Before storing the tractor for extended periods, fill the fuel tank to prevent condensation and rust. Add a fuel stabilizer to prevent fuel degradation. Disconnect the battery and store it in a cool, dry place.

History & Background

The Massey Ferguson 3050 was introduced in 1987 as part of the 3000 series, succeeding earlier models. The 3000 series brought improvements in comfort, hydraulic performance and transmission options. The 3050 became a popular choice for farmers seeking a reliable and versatile utility tractor.

Frequently Asked Questions

What engine is in the Massey Ferguson 3050?

The Massey Ferguson 3050 is equipped with a Perkins 4.0L four-cylinder diesel engine producing approximately 71 horsepower.

What is the PTO horsepower on a 3050?

The PTO horsepower on a Massey Ferguson 3050 is around 63 HP. It typically offers both 540 RPM and 1000 RPM PTO options, allowing for flexibility in powering various implements.

What oil filter fits the 3050?

The Massey Ferguson 3050 typically uses a Wix 51794 or a Fram PH3600 oil filter. Always verify the correct filter for your specific tractor with your parts supplier to ensure compatibility.

What are common parts needed for the 3050?

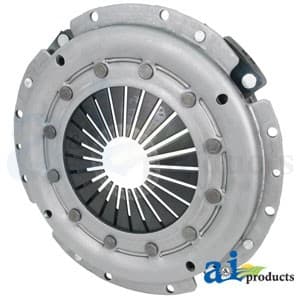

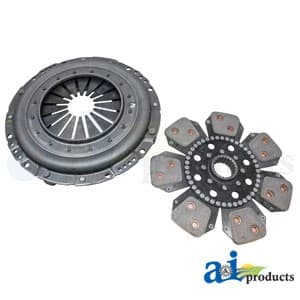

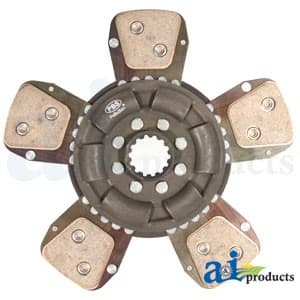

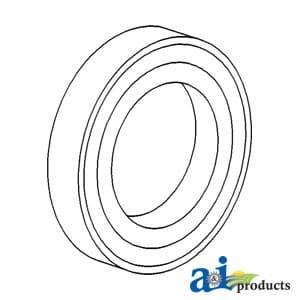

Commonly needed parts for the Massey Ferguson 3050 include engine oil filters, fuel filters, hydraulic filters, belts (fan and alternator), hydraulic seals, steering components like tie rod ends, and clutch components (disc, pressure plate, release bearing) due to wear and tear.
