Massey Ferguson 297 Tractor Parts
Replacement parts for the Massey Ferguson 297 Tractor. Browse our selection of OEM and aftermarket parts — filters, belts, hydraulics, electrical, and more.
The Massey Ferguson 297, produced from 1983-1986, was a popular choice for farmers seeking a reliable and versatile tractor. Powered by a Perkins 4.248 diesel engine producing approximately 82 engine horsepower and 70 PTO horsepower, the MF 297 was well-suited for a variety of agricultural tasks. Its robust design and ease of maintenance contributed to its lasting appeal.
About the 297
The Massey Ferguson 297 was introduced in 1983 as part of the '200' series, filling a crucial power gap in Massey Ferguson's lineup. Production continued until 1986. This model was powered by a Perkins AD4.248 four-cylinder diesel engine, delivering around 82 horsepower and displacing 248 cubic inches. It was known for its fuel efficiency and reliability. The transmission was typically an 8-speed manual gearbox with 2 ranges, providing a versatile range of speeds for various field operations. PTO horsepower was rated at approximately 70 HP, available at 540 RPM. The hydraulic system offered a flow rate of around 10 GPM, supporting two remote hydraulic valves. The 3-point hitch was a Category II hitch, with a lift capacity of roughly 4,000 lbs. The MF 297 found applications in row crop farming, hay production, livestock operations, and light tillage work. While similar to other models in the 200 series, the MF 297 distinguished itself through its increased horsepower and heavier-duty construction, making it a good choice for medium-sized farms needing more power than the smaller 200 series tractors offered but without the expense of a larger tractor.
297 Specifications
| Engine | Perkins AD4.248 82 HP Diesel |
|---|---|
| PTO HP | 70 HP @ 540 RPM |
| Transmission | 8-Speed Manual |
| Hydraulics | 10 GPM, 2 remotes |
| 3-Point Hitch | Category II, 4000 lbs lift capacity |
| Fuel Capacity | 24 gallons |
| Weight | 6900 lbs |
| Years Produced | 1983-1986 |
297 Maintenance Tips
- Engine Oil and Filter: Change the engine oil and filter every 250 hours of operation, using a high-quality oil meeting the specifications in the operator's manual. This helps ensure proper lubrication and extends engine life.
- Hydraulic System: Inspect and maintain hydraulic fluid levels regularly. Replace hydraulic filters according to the recommended schedule (usually every 500 hours) to prevent contamination and maintain optimal hydraulic performance.
- Fuel System: Use clean, fresh diesel fuel and inspect the fuel filter regularly, replacing it as needed. Drain any water or sediment from the fuel tank periodically to prevent fuel system issues.
- Seasonal Storage: Before storing the tractor for extended periods, stabilize the fuel with a fuel stabilizer, change the engine oil and filter, and grease all lubrication points. Disconnect the battery and store it in a cool, dry place to prevent damage.
297 History & Background
The Massey Ferguson 297 was introduced in 1983, adding to the popular 200 series of tractors. It represented a significant step up in power from the smaller models in the line. Although its production run was relatively short, it remains a respected and sought-after tractor among farmers and collectors due to its balance of power, reliability, and simplicity.
Frequently Asked Questions
Which primary air filter is recommended for the Massey Ferguson 297?
The recommended primary air filter for the Massey Ferguson 297 is the AF25064 - Filter, Air, Primary (QTY 1).
What PTO shaft seal fits the Massey Ferguson 297?
For the Massey Ferguson 297, the PTO shaft seal is 3699801M1 - Seal, PTO Shaft.
What oil filter fits the 297?
For the Massey Ferguson 297, a suitable oil filter is the LF699J - Filter, Lube, Full-Flow Spin-On (QTY 1).
What are common parts needed for the 297?
Regularly needed parts for the Massey Ferguson 297 include the FF4052J - Filter, Fuel (QTY 1), 1860959M1 - Boot, Brake Rod, 1665962M91 - Dipstick, Differential Oil Level, 1850909M91 - Bearing, Differential Carrier (RH), and 906811M1 - Clevis Boot, Differential Lock.

1000251M1 - Hydraulic Pump Needle Bearing
SKU: 1000251M1
41 in stock

834216M1 - PTO Oil Seal
SKU: 834216M1
33 in stock

3699801M1 - PTO Shaft Seal
SKU: 3699801M1
98 in stock

906811M1 - Differential Lock Clevis Boot
SKU: 906811M1
6 in stock

886668M1 - Outer Input Housing Bearing
SKU: 886668M1
50 in stock

1881931M91 - Half Shaft Axle Housing Bearing
SKU: 1881931M91
12 in stock

1860959M1 - Brake Rod Boot
SKU: 1860959M1
266 in stock

1850909M91 - Differential Carrier (RH) Bearing
SKU: 1850909M91
46 in stock

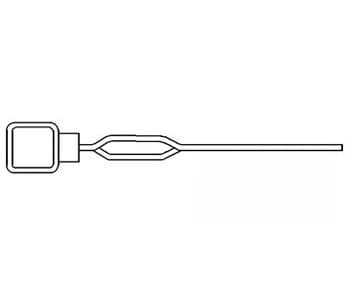

1665962M91 - Differential Oil Level Dipstick
SKU: 1665962M91
102 in stock

4222043M1 - Freeze (2") Plug
SKU: 4222043M1
32 in stock

LF699J - Full-Flow Spin-On (QTY 1) Lube Filter
SKU: LF699J
Out of stock

LF699 - Full-Flow Spin-On (QTY 12) Lube Filter
SKU: LF699
89 in stock

FF4052J - Fuel (QTY 1) Filter
SKU: FF4052J
Out of stock

FF167AJ - Cartridge (QTY 1) Fuel Filter
SKU: FF167AJ
Out of stock

FF167A - Cartridge (QTY 12) Fuel Filter
SKU: FF167A
29 in stock

AF25064 - Primary (QTY 1) Air Filter
SKU: AF25064
Out of stock

AF1840 - Secondary (QTY 1) Air Filter
SKU: AF1840
Out of stock

354920X1 - Ball Type
SKU: 354920X1
64 in stock
