Massey Ferguson 240 Tractor Parts
Shop Massey Ferguson 240 Tractor parts. From filters and fluids to blades and belts, we carry the replacements you need to keep running.
The Massey Ferguson 240, produced from the early 1980s into the 2000s, became a favorite for its reliability and affordability. Powered by a Perkins diesel engine producing around 47 horsepower, with a PTO horsepower of approximately 40, this tractor offered a robust solution for smaller farms and various agricultural tasks. Its simplicity and dependability cemented its place as a workhorse on farms worldwide.
About the 240
The Massey Ferguson 240 was a staple in the Massey Ferguson lineup for several decades, debuting in the early 1980s and continuing production in some regions into the 2000s. It filled a crucial role as a utility tractor, popular for its versatility and ease of use. The 240 is typically equipped with a Perkins AD3.152 3-cylinder diesel engine, delivering around 47 engine horsepower. Engine displacement is 152.7 cubic inches (2.5L). Transmission options primarily included an 8-speed manual gear transmission, providing a range of speeds suitable for different tasks. The independent PTO delivered approximately 40 horsepower at 540 RPM. Hydraulic capacity is around 6.9 GPM, often with a single remote valve available. The 3-point hitch is typically a Category I, offering a lift capacity of around 2425 lbs. Common farming applications for the MF 240 included row crop cultivation, hay baling, livestock feeding, and light tillage. The 240 distinguished itself from smaller models with its increased power and larger frame, while remaining more compact and affordable than larger, more complex tractors in the Massey Ferguson range.
240 Specifications
| Engine | Perkins AD3.152 47 HP Diesel |
|---|---|
| PTO HP | 40 HP @ 540 RPM |
| Transmission | Manual Gear 8F/2R |
| Hydraulics | 6.9 GPM, 1 remote |
| 3-Point Hitch | Category I, 2425 lbs |
| Fuel Capacity | 14.5 gallons |
| Weight | 4123 lbs |
| Years Produced | 1983-2000s (varies by region) |
240 Maintenance Tips
- Change engine oil and filter every 250 hours using a high-quality diesel engine oil and a filter such as a Wix 51250 or equivalent.
- Inspect and maintain hydraulic fluid levels regularly, changing the hydraulic filter (typically located near the hydraulic pump) according to the manufacturer's recommendations, usually around 500 hours.
- Periodically drain water from the fuel filter/water separator to prevent fuel system issues and ensure proper engine performance. Consider adding a fuel stabilizer during seasonal storage to prevent fuel degradation.
- Before storing the tractor for an extended period, ensure the fuel tank is full to minimize condensation and protect the fuel system. Disconnect the battery and store it in a cool, dry place.
240 History & Background
The Massey Ferguson 240 was introduced in the early 1980s as a successor to earlier models like the MF 135. While it saw incremental improvements over its production run, it largely retained its core design, a testament to its initial engineering. The 240 became a globally recognized tractor, popular in both developed and developing agricultural markets for its simplicity and dependability.
Frequently Asked Questions
Which exhaust manifold gasket fits the Massey Ferguson 240?
The 4222050M1 - Gasket, Exhaust Manifold is a suitable replacement for the Massey Ferguson 240.
Which clutch release bearing is recommended for the Massey Ferguson 240?
For the Massey Ferguson 240, the 892862M2 - Bearing, Clutch Release (sealed) is a reliable option.
Which diesel fuel filter is suitable for the Massey Ferguson 240?
The 1049939M1 - Filter, Diesel Fuel is a suitable replacement for the Massey Ferguson 240.
What are some essential replacement parts for the Massey Ferguson 240?
Essential replacement parts for the Massey Ferguson 240 often include a 70251397 - Filter, Diesel Fuel, the 832960M3 - Bearing, Pilot (sealed), a 16779X - Steering Ball, 7/8" Dia., and an 195678M1 - Seal, Inner Rear Axle, Half Shaft.

ZZ90010 - 8.875" Center to Center Connecting Rod
SKU: ZZ90010
42 in stock

VPB8019 - 5 Ring Pistons Lip Seal Direct Injection Short Block; AD3152
SKU: VPB8019
1 in stock

898104M1 - Air Cleaner Hose
SKU: 898104M1
32 in stock

3595181M92 - Tie Rod Complete
SKU: 3595181M92
13 in stock

3475946M91 - Short Tie Rod
SKU: 3475946M91
37 in stock

3475945M91 - Long Tie Rod
SKU: 3475945M91
60 in stock

3429173M1 - Tie Rod w/ Tube
SKU: 3429173M1
35 in stock

3428268M1 - Tie Rod End
SKU: 3428268M1
Out of stock

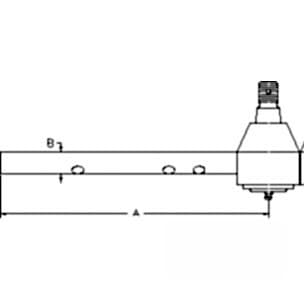

3027647M1 - Tie Rod (LH)
SKU: 3027647M1
13 in stock

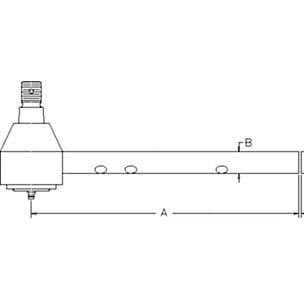

3027646M1 - Tie Rod (RH)
SKU: 3027646M1
28 in stock

193733M91 - LH Thread Tie Rod
SKU: 193733M91
118 in stock

1860564M2 - Front Drag (LH) Link
SKU: 1860564M2
6 in stock

1860412M2 - Front Drag (RH) Link
SKU: 1860412M2
13 in stock

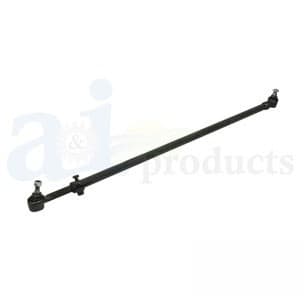

1860411M92 - Drag Link Assembly
SKU: 1860411M92
1 in stock

1860408M2 - Front Drag (LH) Link
SKU: 1860408M2
Out of stock

180391M91 - Drag Link End
SKU: 180391M91
118 in stock

1692144M1 - Front Tie Rod
SKU: 1692144M1
53 in stock

1660457M1 - Front Axle Pivot Bushing
SKU: 1660457M1
57 in stock

2614B550 - Fan Set/2 Belt
SKU: 2614B550
67 in stock

453X-P - Tapered Bearing Cup
SKU: 453X-P
22 in stock

3984-P - Tapered Roller Bearing Cone
SKU: 3984-P
31 in stock

3984-I - Tapered Roller Bearing Cone
SKU: 3984-I
148 in stock

3920-P - Tapered Bearing Cup
SKU: 3920-P
60 in stock

3920-I - Tapered Bearing Cup
SKU: 3920-I
222 in stock
