John Deere 7330 Tractor Parts

7330 parts and accessories

The John Deere 7330 tractor, manufactured from 2007 to 2011, was a popular choice among farmers for its reliability and versatility. Powered by a robust John Deere PowerTech 6.8L diesel engine producing around 165 engine HP and a PTO horsepower of approximately 135, it offered a good balance of power and fuel efficiency. Its adaptability to various implements made it a workhorse on many farms.

The John Deere 7330 was part of the 7030 series tractors introduced in 2007, replacing earlier models and offering advancements in technology and comfort. It was produced until 2011. Under the hood is a John Deere PowerTech 6.8L 6-cylinder diesel engine, delivering approximately 165 engine horsepower. The engine's displacement is 414 cubic inches. Transmission options included the AutoQuad II, PowerQuad Plus, and IVT (Infinitely Variable Transmission), offering a range of gear and shifting options to suit various applications. The PTO horsepower is around 135 hp, with both 540 and 1000 RPM options available. Hydraulic capacity is approximately 30.5 GPM, with options for multiple remote valves. The 3-point hitch is Category II/III, with a lift capacity of around 9,700 lbs. The 7330 was commonly used for row crop work, hay baling, livestock operations, and tillage. It distinguished itself from other models in the lineup by offering a greater horsepower range than the smaller 7130 and 7230, while remaining more compact and maneuverable than the larger 7430 and 7530 models.

Specifications

Engine	John Deere PowerTech 6.8L 165 HP Diesel
PTO HP	135 HP @ 540/1000 RPM
Transmission	AutoQuad II/PowerQuad Plus/IVT, multiple speeds
Hydraulics	30.5 GPM, Up to 4 remotes
3-Point Hitch	Category II/III, 9,700 lbs lift capacity
Fuel Capacity	68 gallons
Weight	15,300 lbs
Years Produced	2007-2011

Maintenance Tips

Engine Oil & Filter: Change engine oil and filter every 250-300 hours of operation using the recommended John Deere oil specification.
Hydraulic System: Regularly check hydraulic fluid levels and inspect for leaks. Replace hydraulic filters according to the manufacturer's recommendations, typically every 500 hours or annually.
Fuel System: Use clean, high-quality diesel fuel and regularly inspect fuel filters. Drain the water separator to prevent contamination of the fuel system.
Seasonal Storage: Before storing the tractor for extended periods, stabilize the fuel, lubricate all grease fittings, and protect the tires from direct sunlight to prevent cracking.

History & Background

The John Deere 7330 was introduced in 2007 as part of the redesigned 7030 series, offering improved operator comfort and advanced technology compared to previous models. There were no major redesigns during its production run. It played a significant role in agricultural history as a versatile and reliable tractor that helped farmers increase productivity and efficiency.

Frequently Asked Questions

What engine is in the John Deere 7330?

The John Deere 7330 is equipped with a John Deere PowerTech 6.8L 6-cylinder diesel engine, producing approximately 165 engine horsepower.

What is the PTO horsepower on a 7330?

The PTO horsepower on a John Deere 7330 is approximately 135 HP, with options for both 540 and 1000 RPM PTO speeds.

What oil filter fits the 7330?

The John Deere 7330 typically uses a John Deere oil filter part number RE504836. Cross-references include Baldwin B7349 and Wix 57202.

What are common parts needed for the 7330?

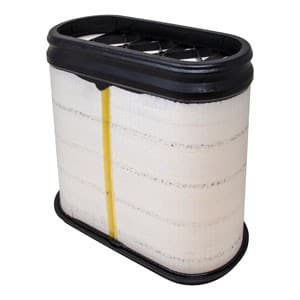

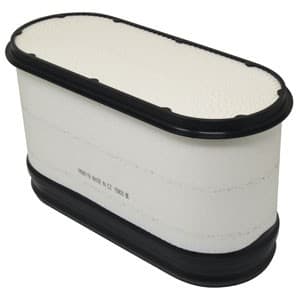

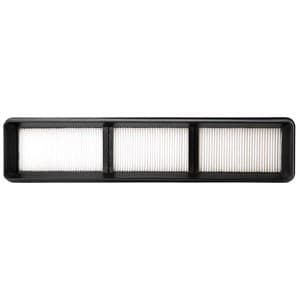

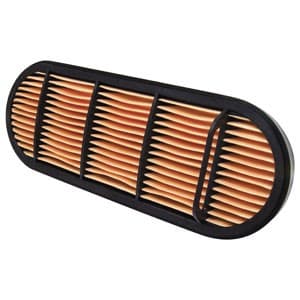

Common parts needed for the John Deere 7330 include engine oil filters, fuel filters, air filters, hydraulic filters, belts, hydraulic seals, steering components, and clutch parts (if applicable).
