John Deere 1654 Tractor Parts
Browse John Deere 1654 Tractor replacement parts. Everything from routine maintenance items to hard-to-find components.
The John Deere 1654 was a popular utility tractor manufactured in the late 1970s and early 1980s. It featured a robust diesel engine producing around 54 horsepower, along with a reliable transmission system. Known for its versatility and dependability, the 1654 was a favorite among farmers for various tasks, offering ample PTO horsepower to power essential farm implements.
About the 1654
The John Deere 1654 entered production in the late 1970s, continuing into the early 1980s, filling a crucial role in John Deere's utility tractor lineup. Powering the 1654 was a Yanmar 3T90 diesel engine, a durable and efficient powerplant producing approximately 54 horsepower. The engine's displacement was around 100 cubic inches. The transmission was typically a gear-type transmission offering multiple forward and reverse speeds, providing flexibility for different field conditions. The rear PTO delivered around 47 horsepower, available at the standard 540 RPM. The hydraulic system had a capacity suitable for operating implements, often including a single remote valve. It featured a Category I three-point hitch, capable of lifting a reasonable amount of weight for its size. The John Deere 1654 found common application in row crop operations, hay production, and general livestock farming. Its compact size and maneuverability made it well-suited for smaller farms and tasks requiring agility, distinguishing it from larger, more specialized models in John Deere's agricultural tractor offerings.
1654 Specifications
| Engine | Yanmar 3T90 54 HP Diesel |
|---|---|
| PTO HP | 47 HP @ 540 RPM |
| Transmission | Gear 8 Forward, 4 Reverse |
| Hydraulics | 7 GPM, 1 remotes |
| 3-Point Hitch | Category I, 2500 lbs |
| Fuel Capacity | 16 gallons |
| Weight | 4500 lbs |
| Years Produced | Late 1970s - Early 1980s |
1654 Maintenance Tips
- Change engine oil and filter every 200-250 hours using the recommended oil type and filter.
- Regularly inspect and maintain the hydraulic system, checking for leaks and ensuring proper fluid levels. Replace hydraulic filters according to the manufacturer's recommendations.
- Keep the fuel system clean by using quality fuel and changing the fuel filter regularly to prevent clogging and ensure optimal engine performance.
- Before seasonal storage, drain fluids or use fuel stabilizer, grease all fittings, and store the tractor in a dry, protected location to prevent corrosion and damage.
1654 History & Background
The John Deere 1654 was introduced to provide a capable utility tractor for smaller farms and diverse applications. While it didn't undergo major redesigns during its production run, it solidified its position as a reliable workhorse in the agricultural sector. It represents a significant era of compact and efficient tractors.
Frequently Asked Questions
Which water pump is suitable for the John Deere 1654?
The RE500734 - Water Pump is a recommended replacement for the 1654 model.
What PTO clutch drive plate fits the John Deere 1654?
The R95110 - Plate, PTO Clutch Drive is designed for PTO clutch applications in the 1654.
Which fuel filter is recommended for the John Deere 1654?
The RE522878 - Filter, Separator, Fuel/Water is a suitable replacement for the John Deere 1654.
What common replacement parts are available for the John Deere 1654?
Key replacement components include the AL156090 - Tensioner, Belt, RE35512 - Disc, Clutch, AR92893 - Seal, Rear Crankshaft W/ Wear Sleeve, AL172780 - Filter, Air, Primary, RE61717 - Switch; Ignition, and RE330060 - Work Lamp, LED; Pedistal Style.

RE65836 - Water Temp Sender Switch
SKU: RE65836
71 in stock

RE59298 - 9 Plate Engine Oil Cooler
SKU: RE59298
7 in stock

RE59296 - 5 Plate Engine Oil Cooler
SKU: RE59296
57 in stock

RE56690 - 7 Plate Engine Oil Cooler
SKU: RE56690
Out of stock

RE536083 - Piston Liner Kit
SKU: RE536083
32 in stock

RE532841 - Upper Gasket Set
SKU: RE532841
19 in stock

RE532631 - Complete Overhaul Gasket Set
SKU: RE532631
49 in stock

RE527456 - Injector Sleeve
SKU: RE527456
72 in stock

RE527039 - Piston
SKU: RE527039
23 in stock

RE526693 - Cylinder 3 & 4 Rail to Injector Fuel Line
SKU: RE526693
90 in stock

RE519696 - Water In Fuel Sensor
SKU: RE519696
161 in stock

RE51650 - Sediment Bowl
SKU: RE51650
279 in stock

RE516335 - Pressure Relief Valve
SKU: RE516335
144 in stock

RE508317 - W/ Adjusting Screw Rocker Arm
SKU: RE508317
64 in stock

RE504914 - Engine Oil Pump
SKU: RE504914
62 in stock

RE500608 - Fracture Type Connecting Rod
SKU: RE500608
Out of stock

R80135 - Oil Filler Cap Gasket
SKU: R80135
23 in stock

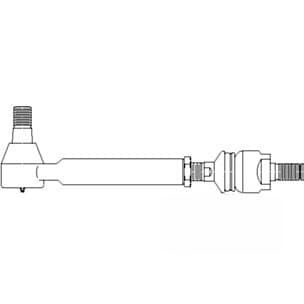

AL160111 - Tie Rod Assembly
SKU: AL160111
53 in stock

R459R - Durometer 70 (25/Pack) .103" Thick O-Ring; .549" ID X .755 OD
SKU: R459R
250 in stock

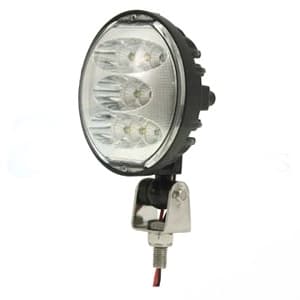

WL338 - LED; Flood Work Lamp
SKU: WL338
171 in stock

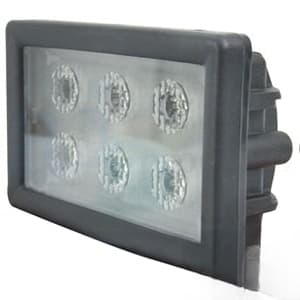

RE330062 - LED; Pendant Style Work Lamp
SKU: RE330062
158 in stock

RE330060 - LED; Pedistal Style Work Lamp
SKU: RE330060
135 in stock

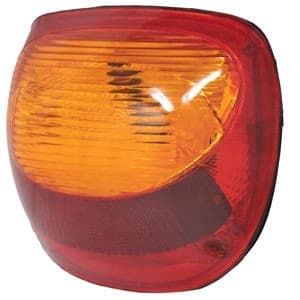

AL210180 - RH / LH Tail Light w/ Brake Light
SKU: AL210180
3 in stock

RE532634 - Major Engine Overhaul Kit
SKU: RE532634
Out of stock
