John Deere 9510R Tractor Parts
Find parts for your John Deere 9510R Tractor. We stock OEM and quality aftermarket replacements ready to ship.
The John Deere 9510R tractor, manufactured from 2011 to 2014, is a powerful workhorse for large-scale farming operations. Powered by a robust 13.5L John Deere PowerTech diesel engine producing around 510 horsepower, it delivers exceptional performance in demanding field conditions. With a PTO horsepower of approximately 435, this model was popular due to its high power, reliability, and advanced technology.
About the 9510R
The John Deere 9510R was introduced as part of the R series tractor lineup, signifying a step forward in large-scale farming technology. Production ran from 2011 to 2014. This model features a 13.5L John Deere PowerTech PSX diesel engine, delivering a rated engine horsepower of 510. This engine offers high torque and fuel efficiency for demanding tasks. The transmission is a PowerShift transmission with 18 forward and 6 reverse speeds, providing smooth and efficient gear changes. The PTO delivers approximately 435 horsepower, available with a 1000 RPM option. The hydraulic system boasts a high flow rate of around 58 GPM with up to 6 remotes, enabling the operation of large implements. Its 3-point hitch is a Category IVN/III, capable of lifting over 18,500 lbs. Common applications include primary tillage (plowing, disking), planting large row crop fields (corn, soybeans), and pulling large air seeders. Distinguishing it from other models, the 9510R offers the highest horsepower in the row crop tractor line with a balance of power, technology, and comfort for maximum productivity.
9510R Specifications
| Engine | John Deere PowerTech PSX 510 HP 13.5L Diesel |
|---|---|
| PTO HP | 435 HP @ 1000 RPM |
| Transmission | PowerShift 18F/6R |
| Hydraulics | 58 GPM, 6 remotes |
| 3-Point Hitch | Category IVN/III, 18,500 lbs lift |
| Fuel Capacity | 215 gallons |
| Weight | 46,500 lbs |
| Years Produced | 2011-2014 |
9510R Maintenance Tips
- Change engine oil and filter every 500 hours using the recommended John Deere oil and filter specification.
- Regularly inspect hydraulic fluid levels and filters, replacing filters every 1000 hours to maintain hydraulic system performance.
- Use clean, high-quality diesel fuel and replace fuel filters at the recommended intervals to prevent fuel system issues.
- Before seasonal storage, ensure the fuel tank is full, treat the fuel with a stabilizer, and disconnect the battery to prevent corrosion and battery drain.
9510R History & Background
The John Deere 9510R was launched as part of John Deere's effort to offer larger, more powerful tractors for large-acreage farming. While there were no major redesigns during its production run, the 9510R represents a significant step in tractor technology for John Deere, incorporating enhanced engine management and operator comfort.
Frequently Asked Questions
Which fuel filter is recommended for the John Deere 9510R?
To maintain optimal fuel system performance, the RE533910 - Filter, Fuel, Spin-on is recommended for the John Deere 9510R.
What PTO clutch assembly is compatible with the John Deere 9510R?
For reliable power take-off engagement on the John Deere 9510R, the AR94519 - Disc, PTO Clutch Assembly is a compatible replacement part.
Which cab air filter fits the John Deere 9510R?
To ensure a clean cabin environment in the John Deere 9510R, the RE284091 - Filter, Cab Air is the appropriate replacement.
What are some commonly replaced parts for the John Deere 9510R?
Regular maintenance on the John Deere 9510R often requires replacing parts such as the 51M7090 - O-Ring; .528" ID X .716" OD X .094" Thick, Durometer 75, the RE61717 - Switch; Ignition, and the RE49169 - Receiver Drier. Other frequently replaced items include the R247733 - Bushing; Steering Cylinder, Greasable and the RE582500 - Tensioner, Belt.

RE546613 - Exhaust Temp Sensor
SKU: RE546613
167 in stock

RE538131 - Exhaust System Diesel Oxidation Catalyst Pressure Sensor
SKU: RE538131
278 in stock

RE538127 - Fuel Temperature Sensor
SKU: RE538127
6 in stock

RE537640 - Engine Oil Pressure Sensor
SKU: RE537640
93 in stock

RE537635 - Manifold Air Temperature Sensor
SKU: RE537635
130 in stock

RE48419 - Temperature Sensor
SKU: RE48419
129 in stock

RE46375 - Fuel Pump
SKU: RE46375
43 in stock

RE167207 - Oil Pressure Sensor
SKU: RE167207
100 in stock

RE40113 - Universal Joint
SKU: RE40113
26 in stock

R62070 - Durometer 70 (5/Pack) .070" Thick O-Ring; .989" ID X 1.129" OD
SKU: R62070
140 in stock

R56465 - Durometer 75 (1/Pack) .103" Thick O-Ring; .674" ID X .880" OD
SKU: R56465
177 in stock

R26282 - Durometer 70 (4/Pack) .139" Thick O-Ring; 2.109" ID X 2.387" OD
SKU: R26282
92 in stock

R222761 - Durometer 90 (1/Pack) O-Ring; 1.239" ID X 1.379" OD
SKU: R222761
408 in stock

R21722 - Durometer 90 (5/Pack) .139" Thick O-Ring; .796" ID X 1.074" OD
SKU: R21722
65 in stock

P42061 - Durometer 75 (5/Pack) .070" Thick O-Ring; .864" ID X 1.004" OD
SKU: P42061
115 in stock

H133106 - Snap (1/Pack) Ring
SKU: H133106
679 in stock

51M7090 - Durometer 75 O-Ring; .528" ID X .716" OD X .094" Thick
SKU: 51M7090
836 in stock

RE578425 - Rear Axle Bearing
SKU: RE578425
162 in stock

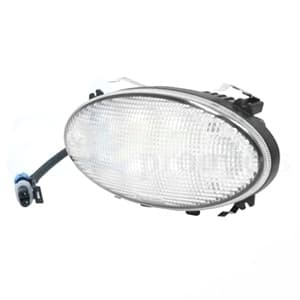

WL9235 - Oval Flood Amber LED Work Lamp
SKU: WL9235
160 in stock

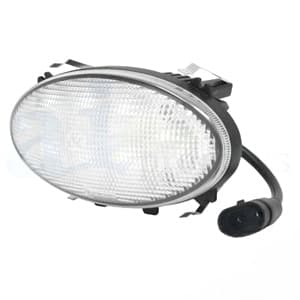

WL4743 - Oval Flood LED Work Lamp
SKU: WL4743
99 in stock

RE573609 - LED; Flood Work Lamp
SKU: RE573609
188 in stock

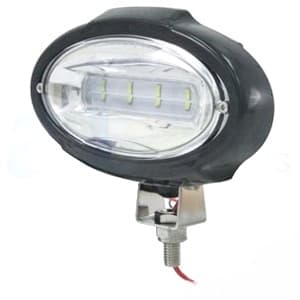

RE331642 - LED; Oval Work Lamp
SKU: RE331642
145 in stock

RE271575 - HID Bulb
SKU: RE271575
198 in stock

RE582808 - O-Ring; Selective Control Valve Section Kit
SKU: RE582808
173 in stock
