John Deere 8960 Tractor Parts
Shop John Deere 8960 Tractor parts. From filters and fluids to blades and belts, we carry the replacements you need to keep running.
The John Deere 8960, manufactured from 1986 to 1989, was a powerhouse tractor renowned for its robust performance. Equipped with a 370 HP Cummins NTA855 diesel engine, this articulated 4WD tractor delivered exceptional pulling power with a PTO horsepower of 305. Its reliability and ability to handle demanding tasks made it a favorite among farmers for large-scale operations.
About the 8960
Introduced in 1986, the John Deere 8960 represented the pinnacle of John Deere's four-wheel-drive tractor technology at the time. Production continued through 1989, establishing a legacy of dependable performance. At its heart lies a Cummins NTA855 diesel engine, a 855 cubic inch (14.0 L) inline-6 powerhouse producing 370 horsepower. This engine is known for its durability and torque delivery, ideal for heavy agricultural work. The transmission is a 12-speed partially synchronized powershift, providing ample speed options for various field conditions. The PTO delivers 305 horsepower at 1000 RPM. The closed-center hydraulic system offers a flow rate of approximately 37 GPM, powering up to four remote valves. The 3-point hitch is a Category III/IVN, offering a lift capacity of around 14,000 lbs, allowing for the use of large implements. The 8960 was primarily used for heavy tillage, row crop operations in larger fields, and pulling large planters and air seeders. Compared to other models in the John Deere lineup, the 8960 offered the highest horsepower in its class and was differentiated by its articulated design providing increased maneuverability for a tractor of its size.
8960 Specifications
| Engine | Cummins NTA855 370 HP Diesel |
|---|---|
| PTO HP | 305 HP @ 1000 RPM |
| Transmission | Powershift 12-speed |
| Hydraulics | 37 GPM, 4 remotes |
| 3-Point Hitch | Category III/IVN, 14,000 lbs |
| Fuel Capacity | 224 gallons |
| Weight | 35,000 lbs |
| Years Produced | 1986-1989 |
8960 Maintenance Tips
- Engine Oil & Filter: Change engine oil and filter every 250-300 hours, using a high-quality oil that meets Cummins CES 20078 specifications.
- Hydraulic System: Regularly check hydraulic fluid levels and inspect for leaks. Replace hydraulic filters every 500 hours or annually to maintain system performance.
- Fuel System: Use clean, high-quality diesel fuel and replace fuel filters regularly to prevent injector clogging and ensure optimal engine performance. Consider using a fuel additive, especially during winter months, to prevent fuel gelling.
- Seasonal Storage: Before storing the tractor for the off-season, stabilize the fuel, change the engine oil, and grease all fittings. Disconnect the battery and store it in a cool, dry place.
8960 History & Background
The John Deere 8960 was launched in 1986 as a top-of-the-line four-wheel-drive tractor. There were no major redesigns during its production run. This model became a symbol of power and efficiency in large-scale agriculture, demonstrating John Deere's commitment to meeting the demands of modern farming practices.
Frequently Asked Questions
Which main bearing is suitable for the John Deere 8960?
For the John Deere 8960, the standard main bearing is AR74814 - Bearing, Main (Std).
What PTO clutch assembly is recommended for the John Deere 8960?
A recommended PTO clutch assembly for the 8960 is the AR94519 - Disc, PTO Clutch Assembly.
What oil filter fits the 8960?
For the John Deere 8960, the LF3000 - Filter, Lube, Combination is an appropriate oil filter. It is sold in a pack of six.
What are common replacement parts for the John Deere 8960?
Several common replacement parts for the 8960 include the RE62419 - Filter, Separator, Fuel/Water, the R73189 - Belt, A/C Compressor Drive, an AR58126 - Switch, Ignition (12 Volt), the RE336111 - Lamp, Worklight; LED, Flood, a R161382 - Knob, Shift Lever, and a RE10924 - Select, Control Valve Ovrhl. Kit.

RE63291 - Engine Oil Pressure Sender
SKU: RE63291
7 in stock

RE53422 - Crankshaft w/ A-R26049 Gear
SKU: RE53422
42 in stock

RE47785 - Coolant Temperature Sensor
SKU: RE47785
75 in stock

RE46252 - Fuel Pump
SKU: RE46252
1 in stock

RE40113 - Universal Joint
SKU: RE40113
26 in stock

R28024 - Wedge Blocks on Tie Rod Bolts
SKU: R28024
362 in stock

U12331 - Durometer 75 (4/Pack) .139" Thickness O-Ring; 2.734" ID X 3.012" OD
SKU: U12331
356 in stock

U12037 - Durometer 75 (5/Pack) .139" Thickness O-Ring; 1.296" ID X 1.574" OD
SKU: U12037
580 in stock

U11326 - 5/pack Durometer 75 O-Ring; 1.114" ID X 1.254" OD X .070" Thick
SKU: U11326
520 in stock

R94418 - Durometer 92 O-Ring; 1.734" ID X 2.012" OD X .139" Thick
SKU: R94418
5 in stock

R83630 - Durometer 85 (10/Pack) .139" Thick O-Ring; .796" ID X 1.074" OD
SKU: R83630
1860 in stock

R77551 - Durometer 75 (12/Pack) .070" Thick O-Ring; .208" ID X .348" OD
SKU: R77551
1620 in stock

R72654 - Snap; 25/Pack Ring
SKU: R72654
475 in stock

R62070 - Durometer 70 (5/Pack) .070" Thick O-Ring; .989" ID X 1.129" OD
SKU: R62070
140 in stock

R51603 - Durometer 70 (10/Pack) O-Ring; .612" ID X .818" OD X .103" Thick
SKU: R51603
240 in stock

R26282 - Durometer 70 (4/Pack) .139" Thick O-Ring; 2.109" ID X 2.387" OD
SKU: R26282
92 in stock

R21722 - Durometer 90 (5/Pack) .139" Thick O-Ring; .796" ID X 1.074" OD
SKU: R21722
65 in stock

R1225R - Durometer 75 (5/ Pack) O-Ring; 1.171" ID X 1.449" OD X .139" Thick
SKU: R1225R
535 in stock

P42061 - Durometer 75 (5/Pack) .070" Thick O-Ring; .864" ID X 1.004" OD
SKU: P42061
115 in stock

F3353R - Durometer 75 (10/Pack) O-Ring; .362" ID X .568" OD X .103" Thick
SKU: F3353R
540 in stock

A3190R - Durometer 90 (5/Pack) .130" Thick O-Ring; .674" ID X .880" OD
SKU: A3190R
120 in stock

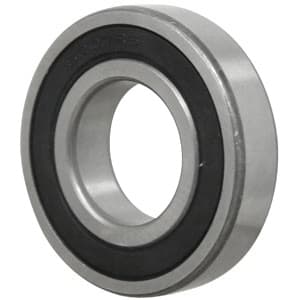

JD10329 - Water Pump Bearing
SKU: JD10329
61 in stock

WL7610 - Trapezoid LED Light Assembly
SKU: WL7610
98 in stock

WL7606 - Flood LED Light Assembly
SKU: WL7606
92 in stock
